Removal Procedure

NOTE: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

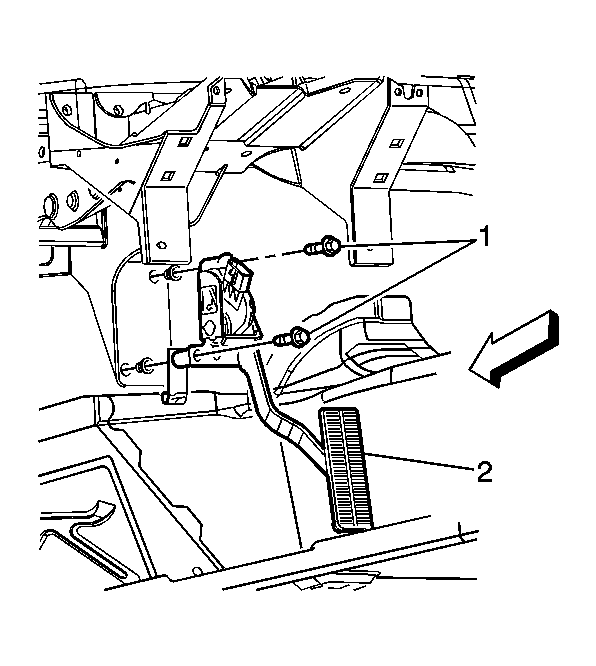

    Fig 1: View Of Accelerator Pedal
    GM931700Courtesy of GENERAL MOTORS CORP.
  1. Remove the left instrument panel (I/P) on the lower closeout insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.

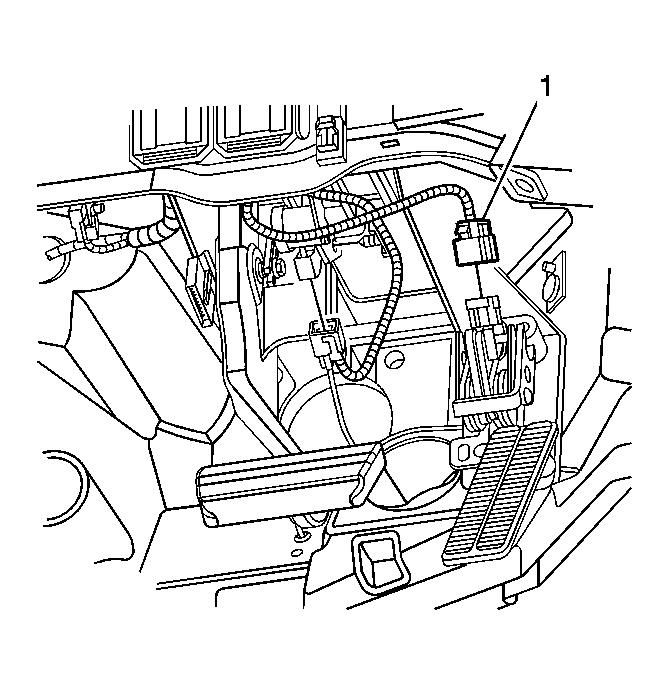

    2. Fig 2: View Of Accelerator Pedal Sensor Module Electrical Connector
    GM1252542Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector (1) from the accelerator pedal sensor module.
    3. Fig 3: View Of Accelerator Pedal
    GM931700Courtesy of GENERAL MOTORS CORP.
  3. Remove the accelerator pedal mounting bolts (1).
  4. Remove the accelerator pedal (2).
