Installation Procedure

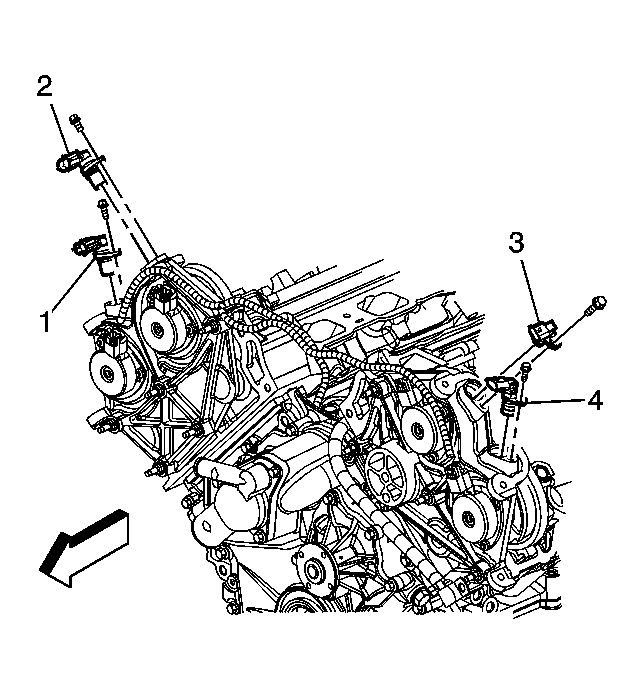

    Fig 1: Locating Camshaft Sensor
    GM1247907Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Inspect the camshaft sensor O-ring for wear or damage. If a problem is found, replace the O-ring.
  1. Lubricate the camshaft sensor O-ring with engine oil.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the left bank intake camshaft position sensor (3) and retaining bolt.

    Tighten:  Tighten the retaining bolt to 10 N.m (89 lb in).

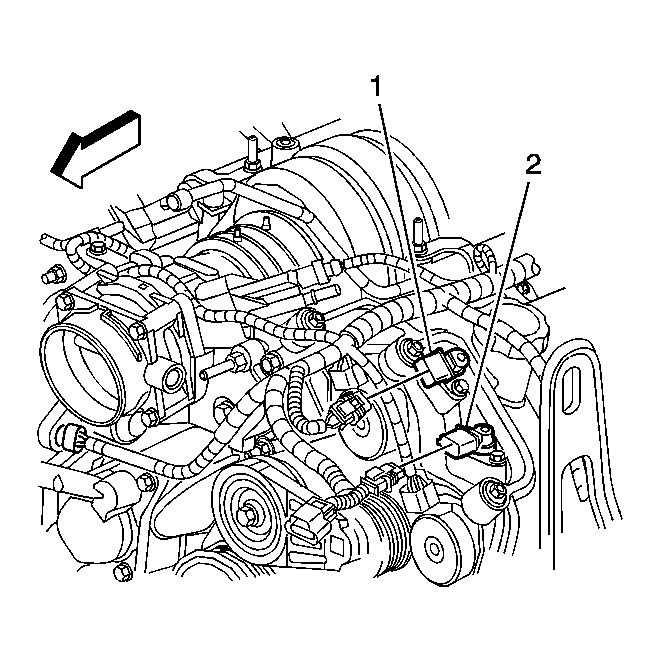

    3. Fig 2: View Of Left Camshaft Position Sensor Electrical Connector
    GM887907Courtesy of GENERAL MOTORS CORP.
  3. Reconnect the camshaft sensor electrical connector (1).
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 4.6L (LH2).
  5. Operate the engine and inspect the camshaft sensor for engine oil leaks.
