Installation Procedure

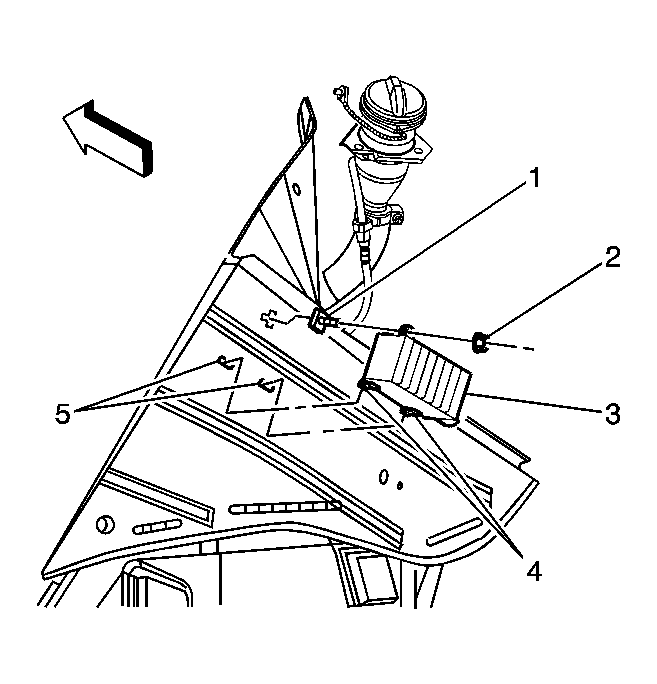

    Fig 1: View Of Fuel Pump Module
    GM931761Courtesy of GENERAL MOTORS CORP.
  1. Insert the alignment tabs (4) of the fuel pump module (3) into the slots (5) in the body panel.
  2. Position the fuel pump module (3) over the body attachment stud (1).
  3. Install the nut (2) to the attachment stud (1).

    Tighten:  Tighten the nut to 12 N.m (106 lb in).

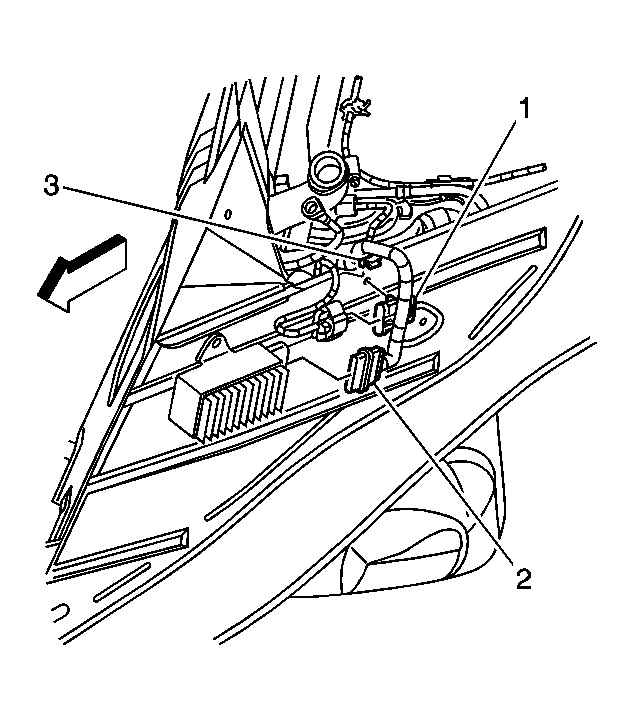

    4. Fig 2: View Of Fuel Pump Module Electrical Connector
    GM931900Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the fuel pump module.
  5. Install the wheelhouse liner panel. Refer to Wheelhouse Liner Panel Replacement - Rear in Body Rear End.
