Removal Procedure

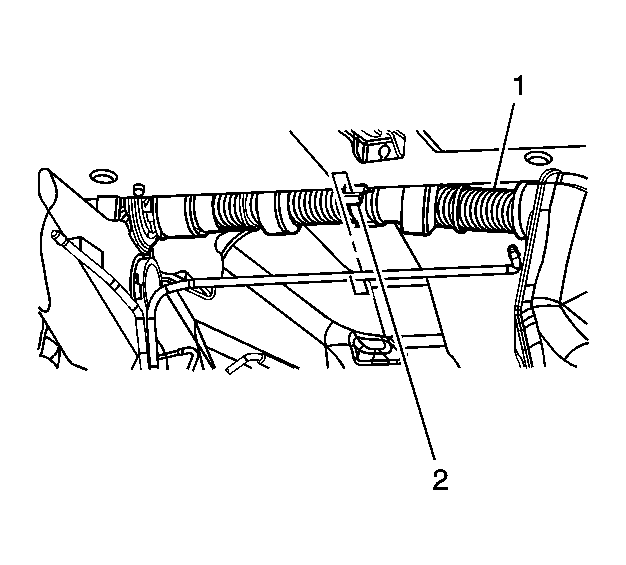

    Fig 1: View Of Crossover Tube & Clamp
    GM931872Courtesy of GENERAL MOTORS CORP.
  1. Remove the driveline support assembly. Refer to Driveline Support Assembly Replacement in Propeller Shaft.
  2. Remove the crossover tube (1) from the clamp (2) located above the transmission.
  3. Disengage the left crossover tube CPA retainer by pulling the tab (1) outward and rotate.
    4. IMPORTANT: The crossover tube CPA is released when the latch disengages from the tank connection groove.
    Fig 2: Locating Air Inlet Hose
    GM903539Courtesy of GENERAL MOTORS CORP.
  4. Rotate crossover tube collar (3) counter-clockwise to disengage.
  5. Disconnect the crossover tube from the left fuel tank by pulling the tube straight out of the fuel tank connection.
  6. Repeat steps 3 through 5 for the right side tank.
