Installation Procedure

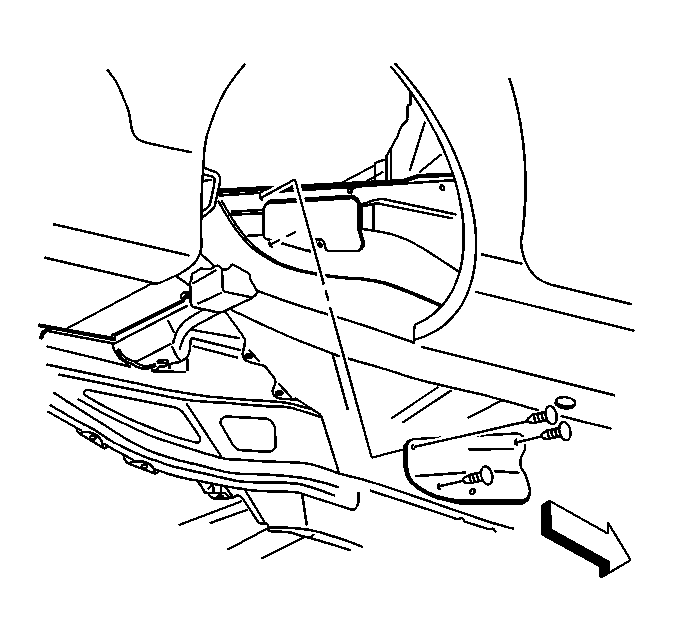

    Fig 1: View Of EVAP Canister Access Cover In Right Rear Wheelhouse
    GM561137Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the fuel tank pressure sensor rubber grommet with clean engine oil in order to aid in installation.
  2. Install the fuel tank pressure sensor into the top of the fuel tank.
  3. Connect the fuel tank pressure sensor electrical connector.
  4. Install the EVAP canister access cover.
  5. Install the right rear wheelhouse liner panel. Refer to Wheelhouse Liner Panel Replacement - Rear in Body Rear End.
