Installation Procedure

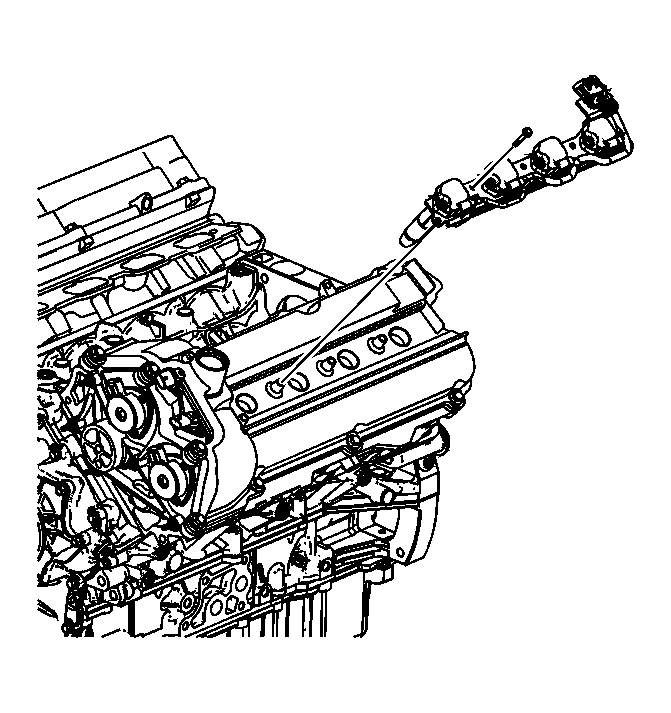

    Fig 1: View Of Left Ignition Coil Assembly, Bolts & Ball Studs
    GM928220Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition coil assembly.
    2. Fig 2: View Of Fuel Injector Sight Shield/Top Cover
    GM1272602Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the ignition coil assembly retaining bolts.

    Tighten:  Tighten the ignition coil assembly retaining bolts to 10 N.m (89 lb in).

  3. Reconnect the ignition coil assembly electrical connector.
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 4.6L (LH2).
