Removal Procedure

    Fig 1: View Of Fuel Injector Sight Shield/Top Cover
    GM1272602Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 4.6L (LH2).

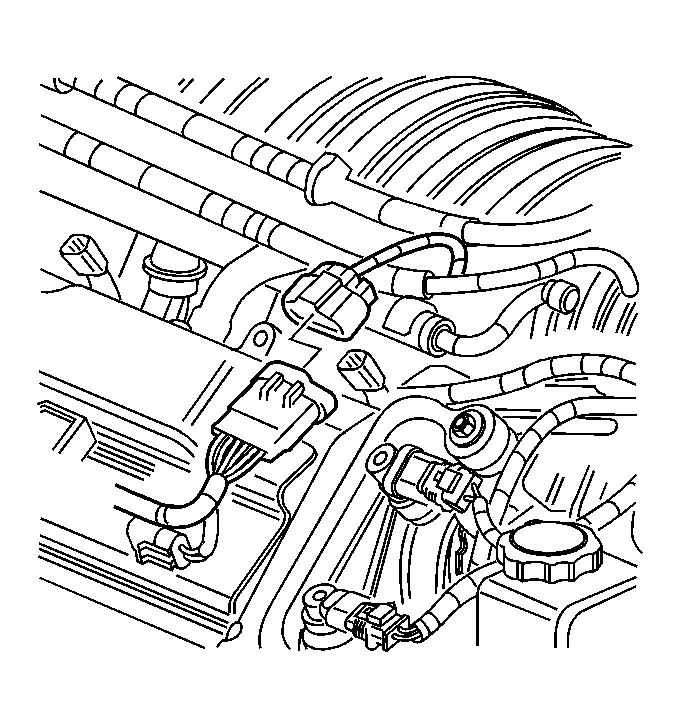

    2. Fig 2: View Of Engine Wiring Harness & Right Ignition Coil Harness
    GM927822Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the ignition coil assembly electrical connector.
  3. Remove the ignition coil assembly retaining bolts.
  4. Carefully remove the ignition coil assembly.
