Installation Procedure

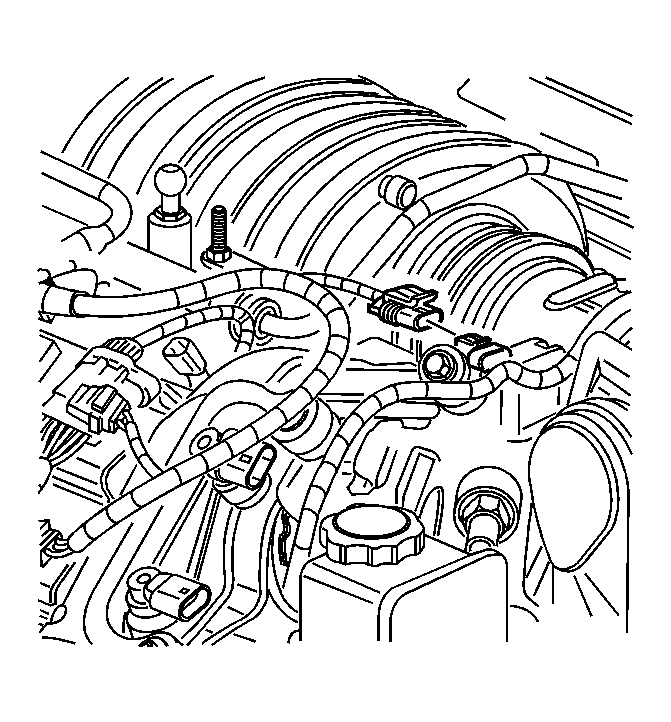

Fig 1: View Of MAP Sensor Engine Wiring Harness Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the MAP sensor into the intake manifold.
Tighten: Tighten the bolt to 12 N.m (106 lb in).
Connect the MAP sensor electrical connector.
