Engine Controls Schematics

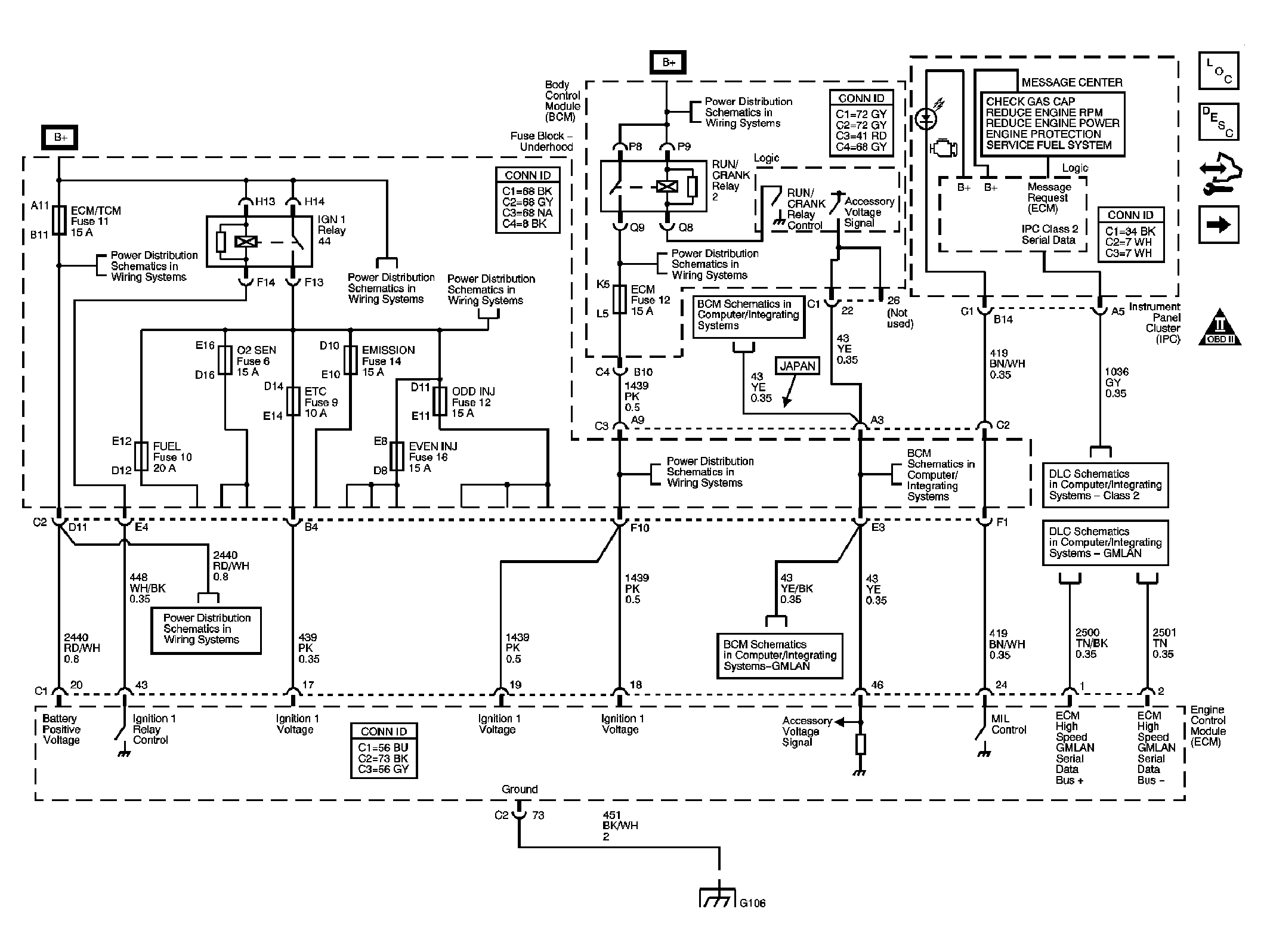

Fig 1: DLC, Ground, MIL, and Power Schematics

Courtesy of GENERAL MOTORS CORP.

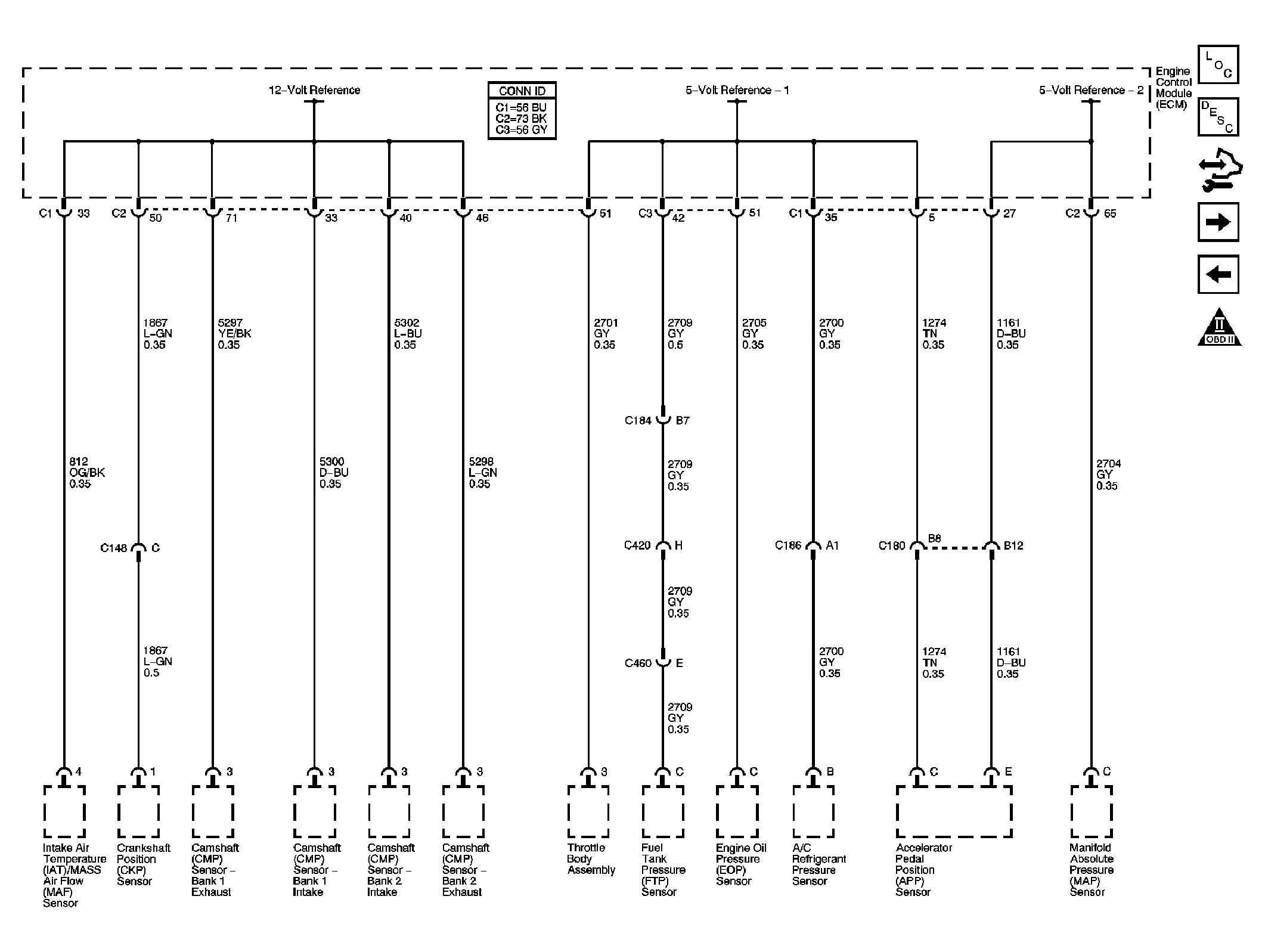

Fig 2: 12-Volt and 5-Volt Reference Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

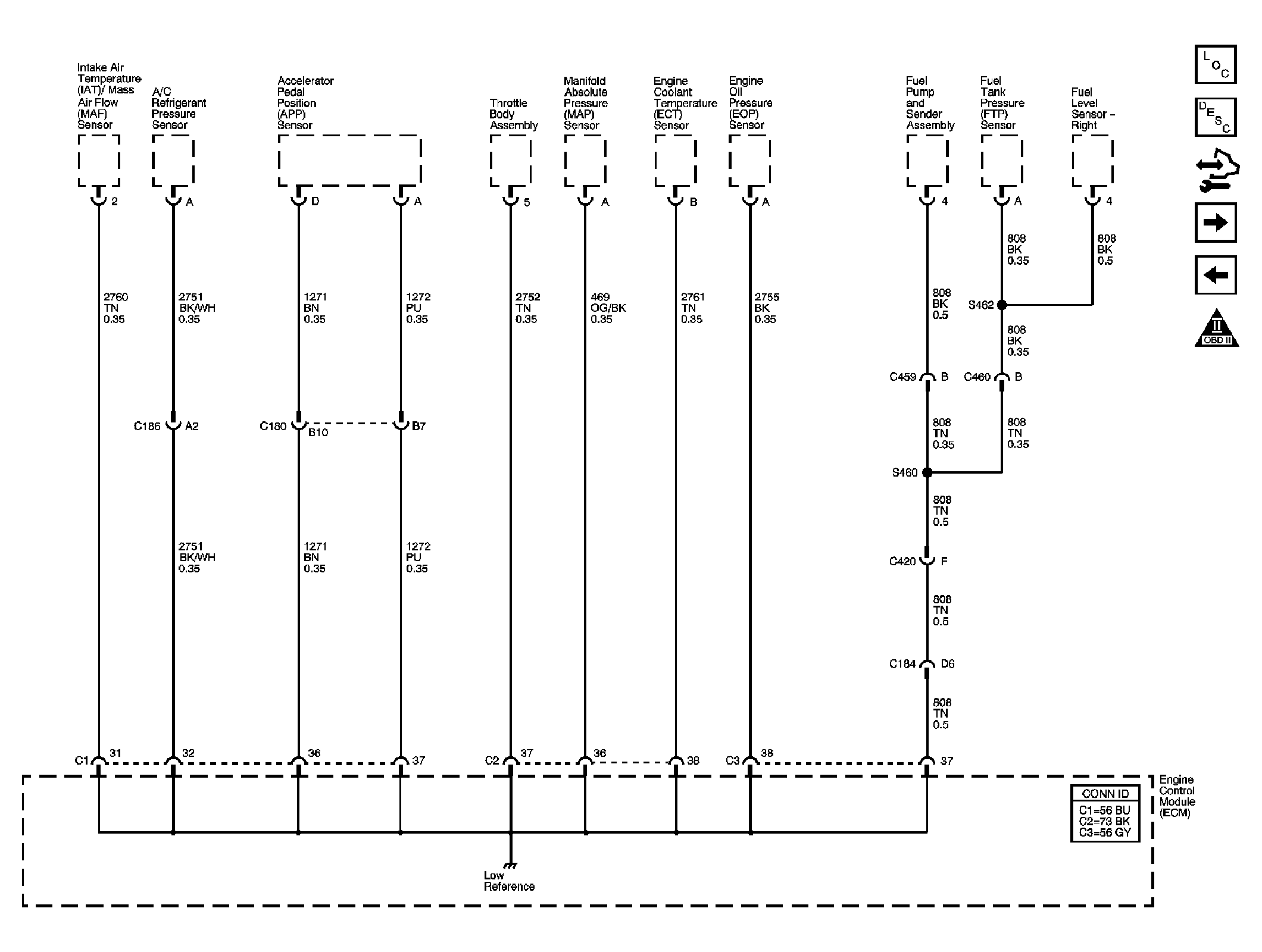

Fig 3: Low Reference Bussing Schematics

Courtesy of GENERAL MOTORS CORP.

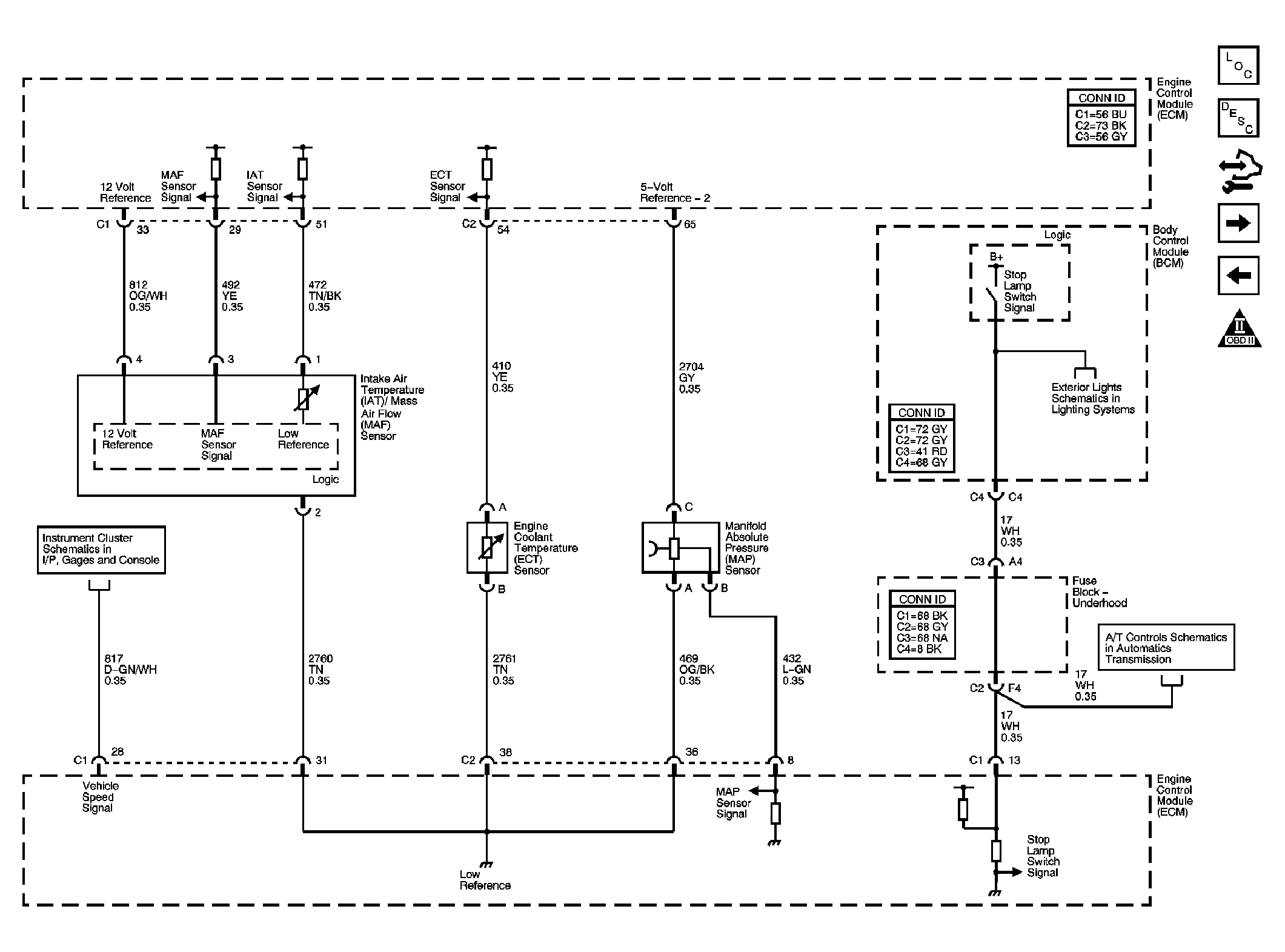

Fig 4: Engine Data Sensors - Pressure, Temperature, MAF, VSS, and Brake Travel Schematics

Courtesy of GENERAL MOTORS CORP.

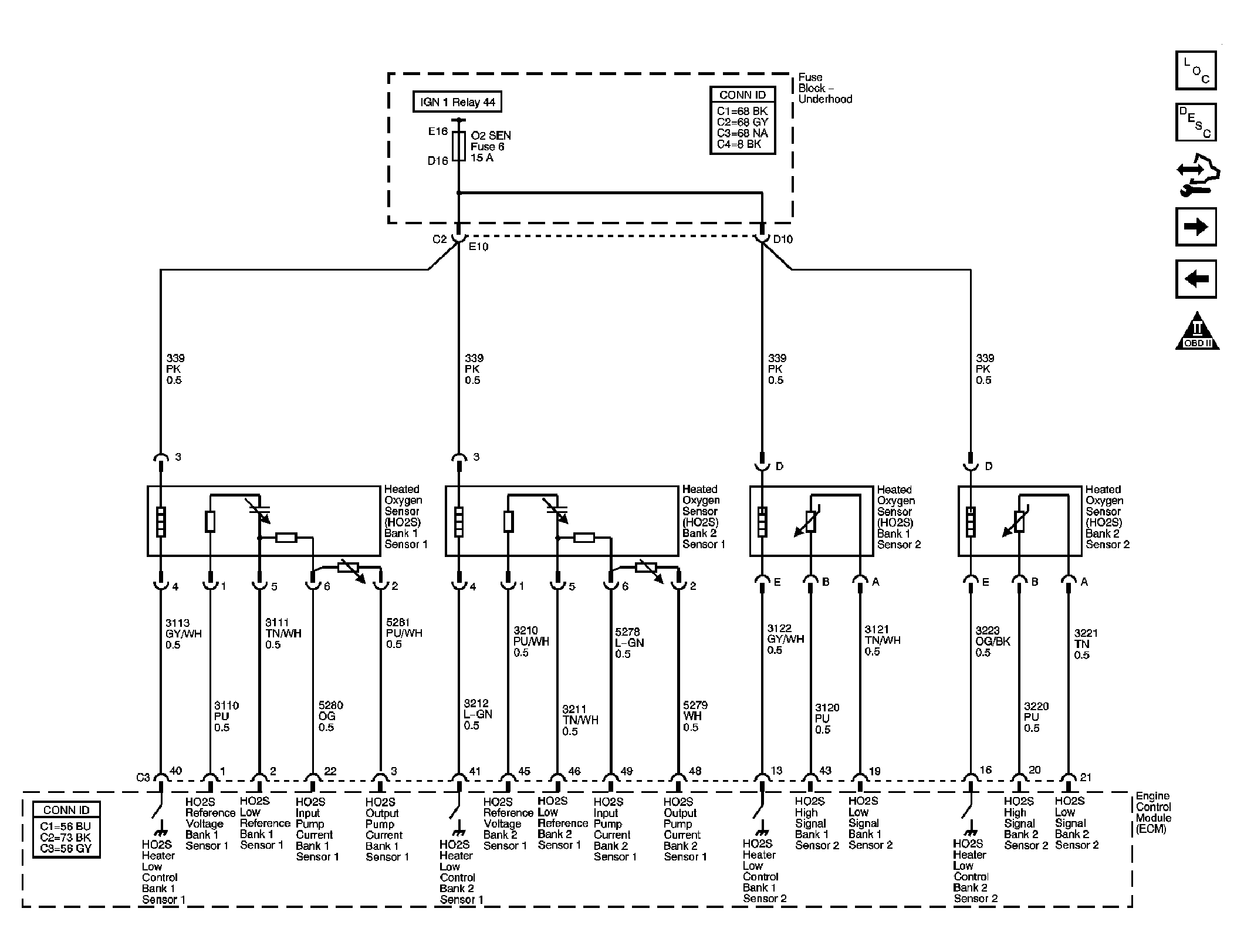

Fig 5: Engine Data Sensors - Oxygen Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

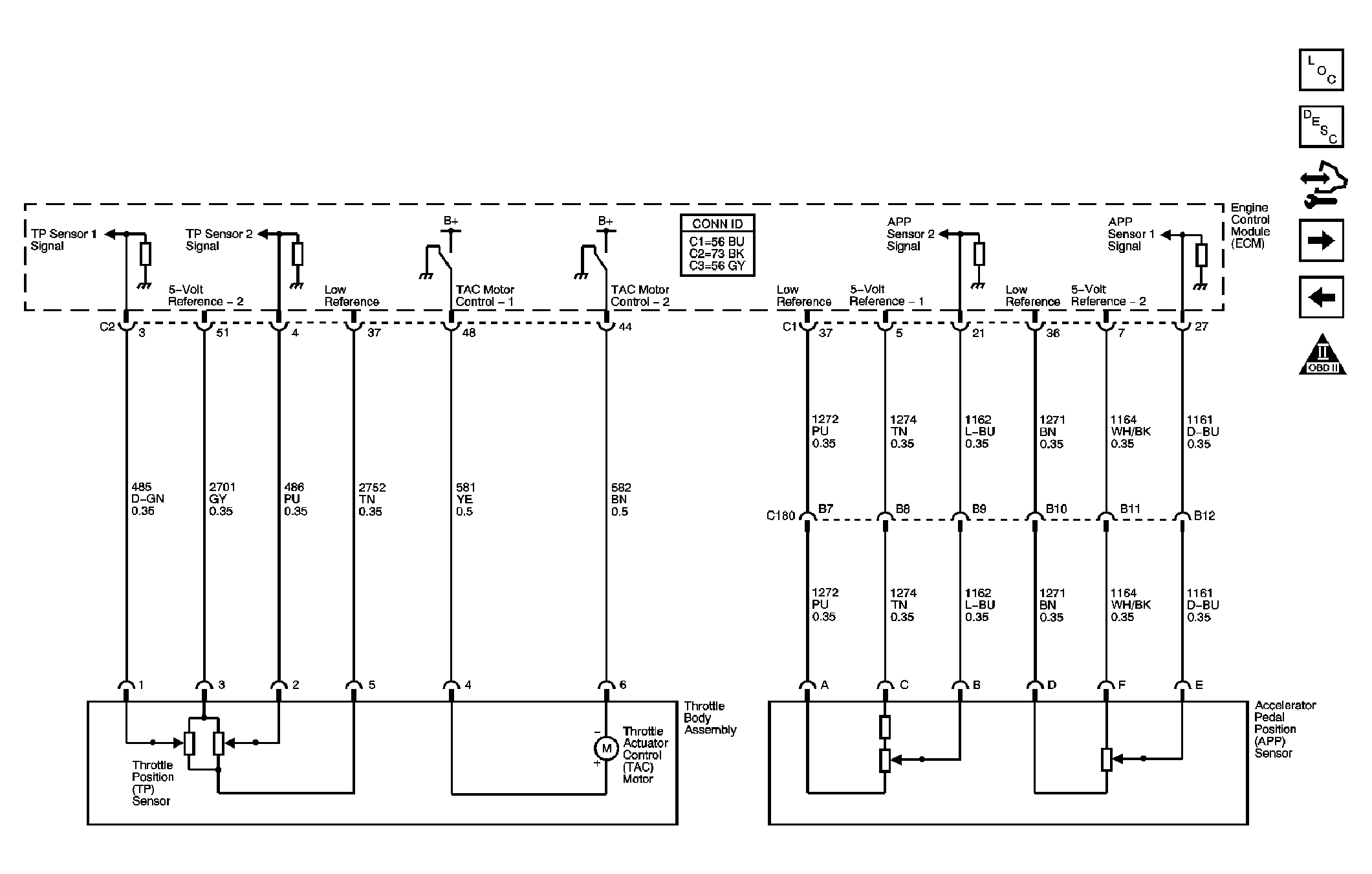

Fig 6: Engine Data Sensors - Electronic Throttle Controls Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition System - Bank 1 Schematics

Courtesy of GENERAL MOTORS CORP.

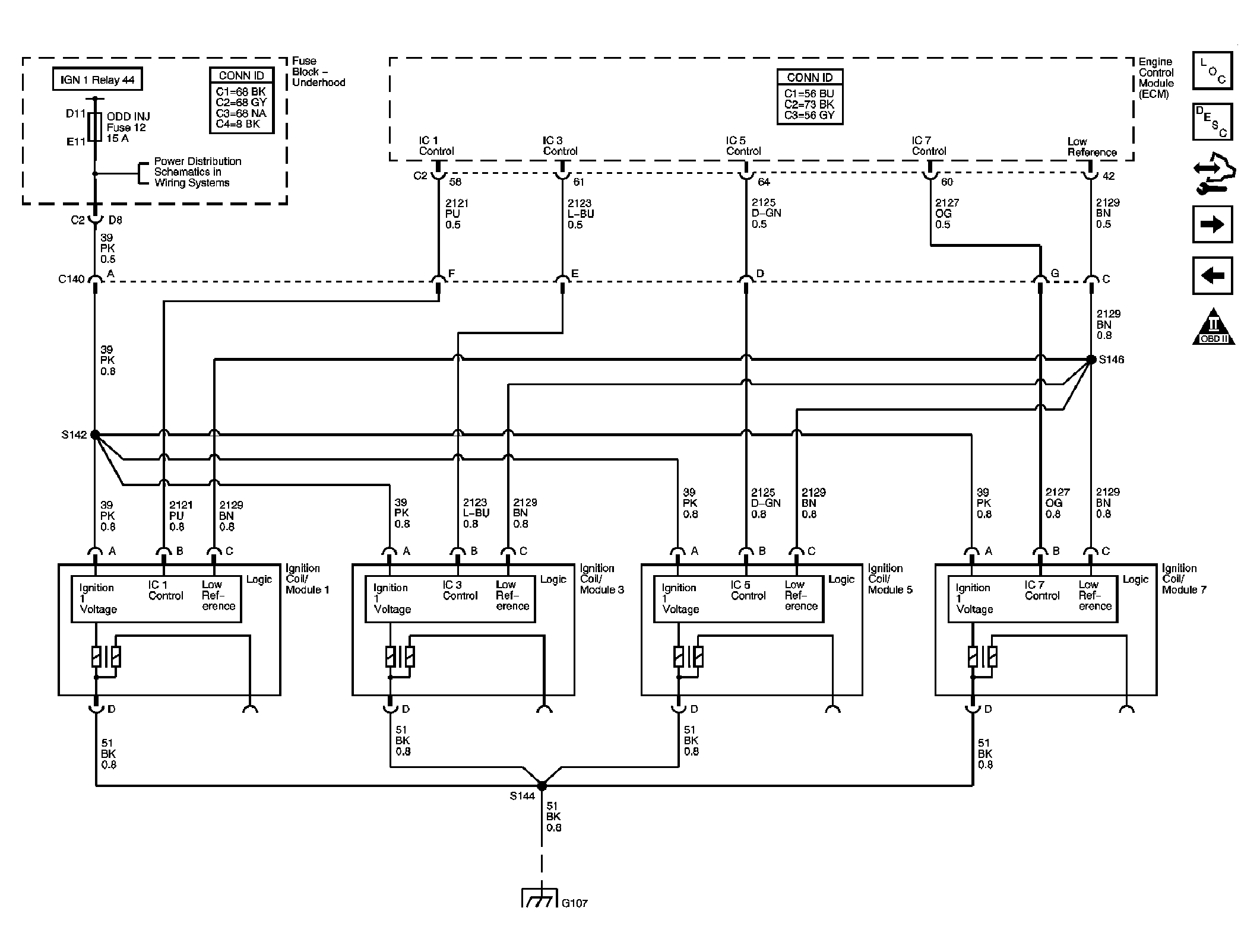

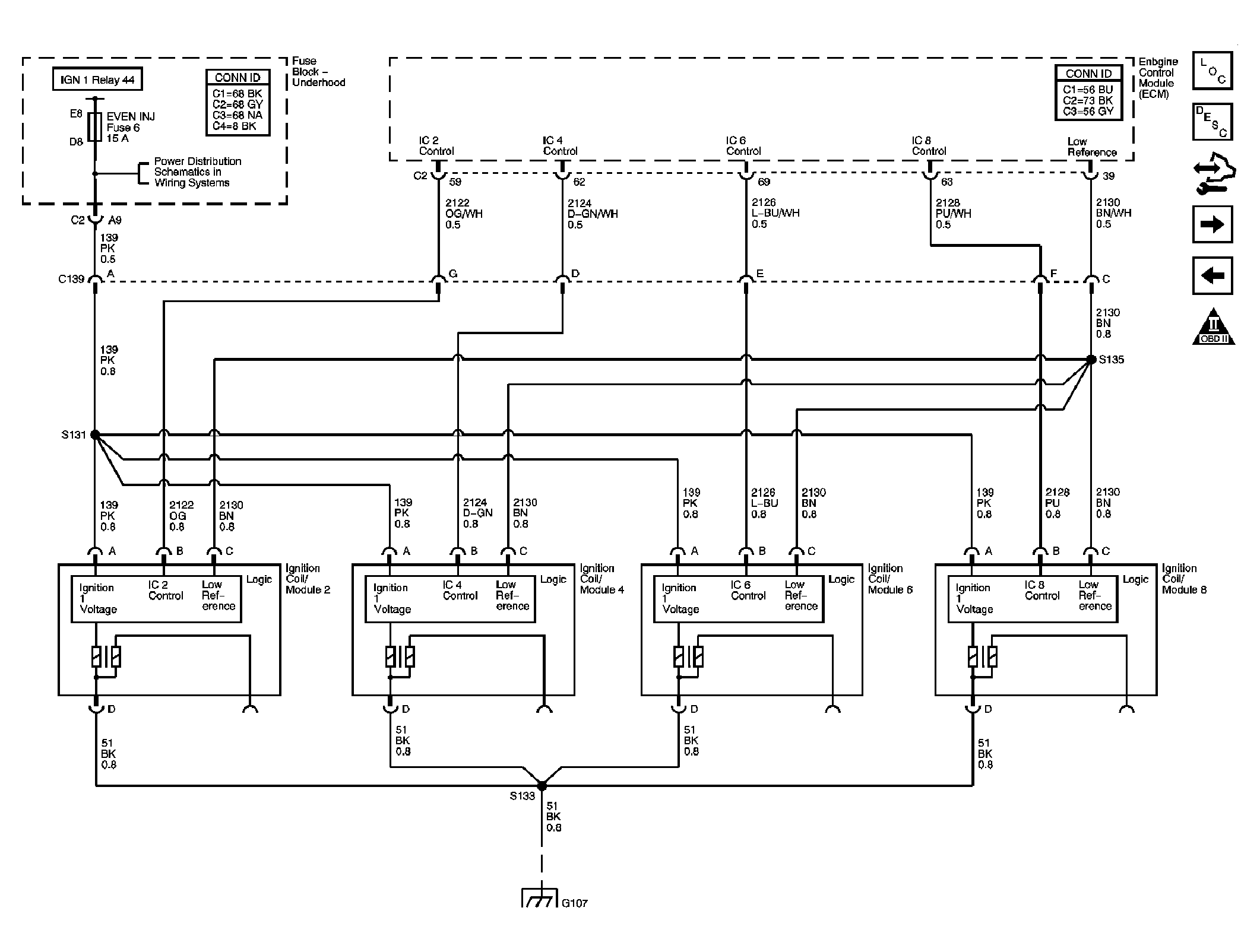

Fig 8: Ignition System - Bank 2 Schematics

Courtesy of GENERAL MOTORS CORP.

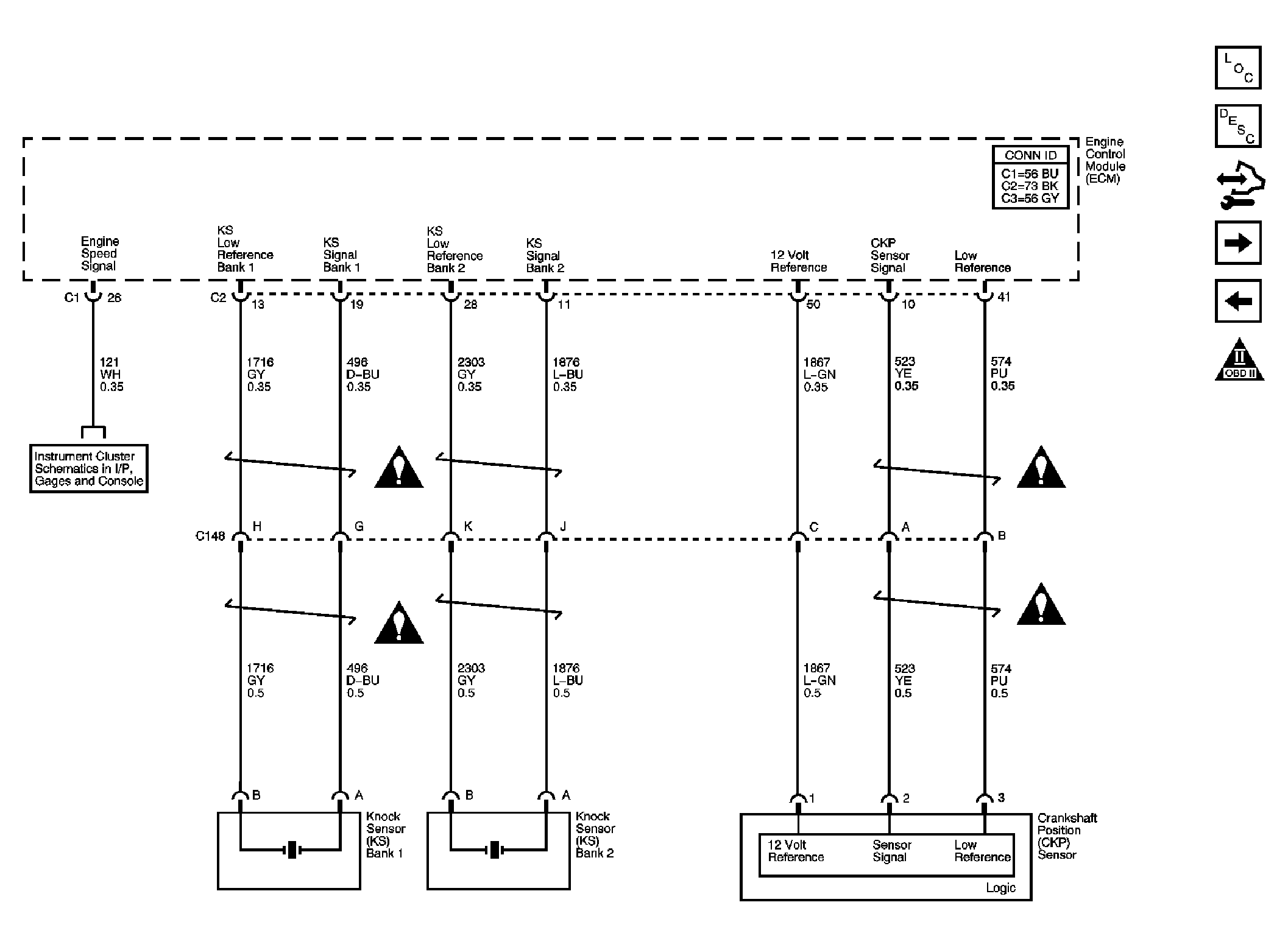

Fig 9: Ignition Controls - CKP and KS Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

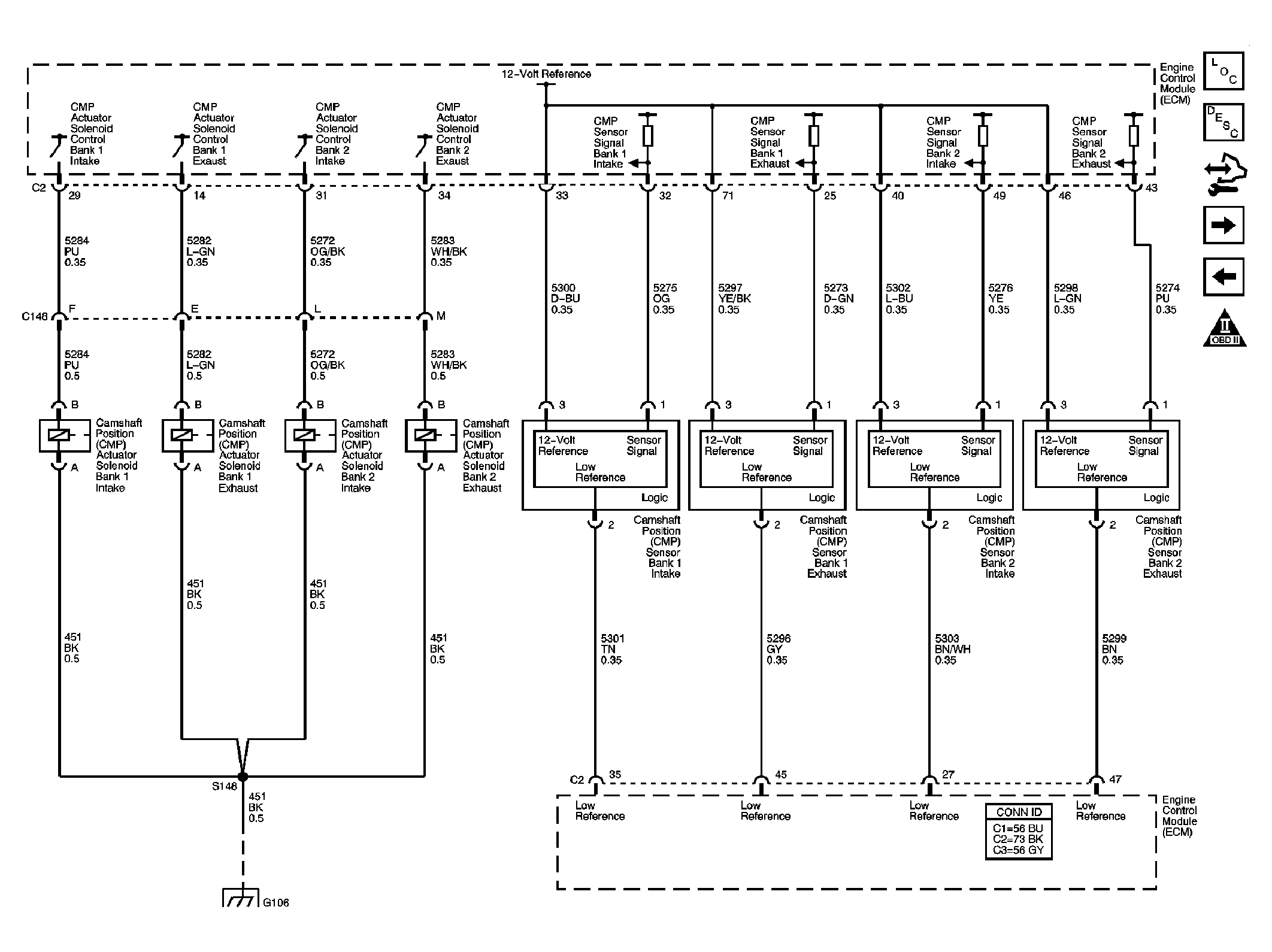

Fig 10: Ignition Controls - CMP Sensors and Solenoids Schematics

Courtesy of GENERAL MOTORS CORP.

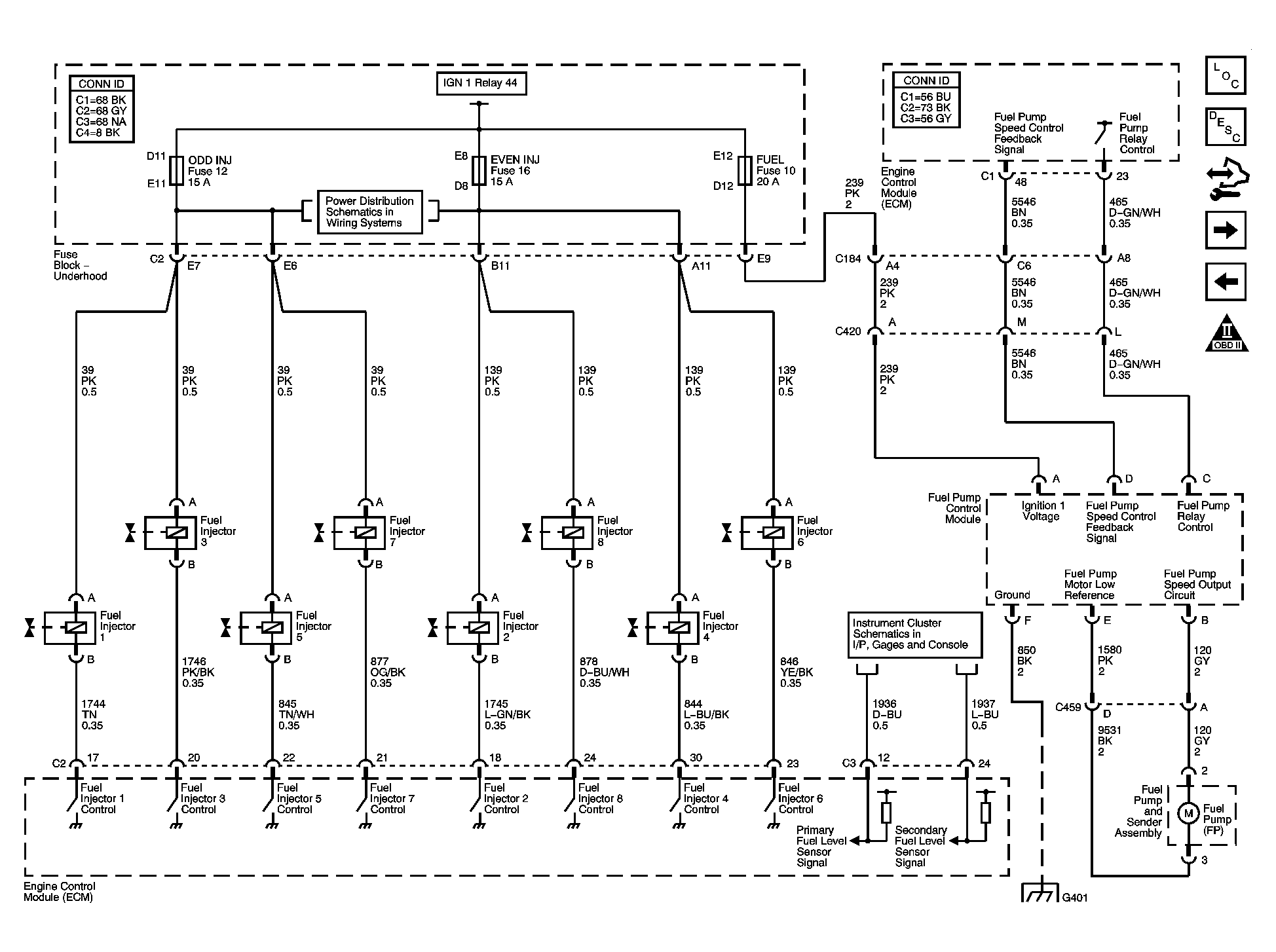

Fig 11: Fuel Controls - Fuel Injectors and Fuel Pump Controls Schematics

Courtesy of GENERAL MOTORS CORP.

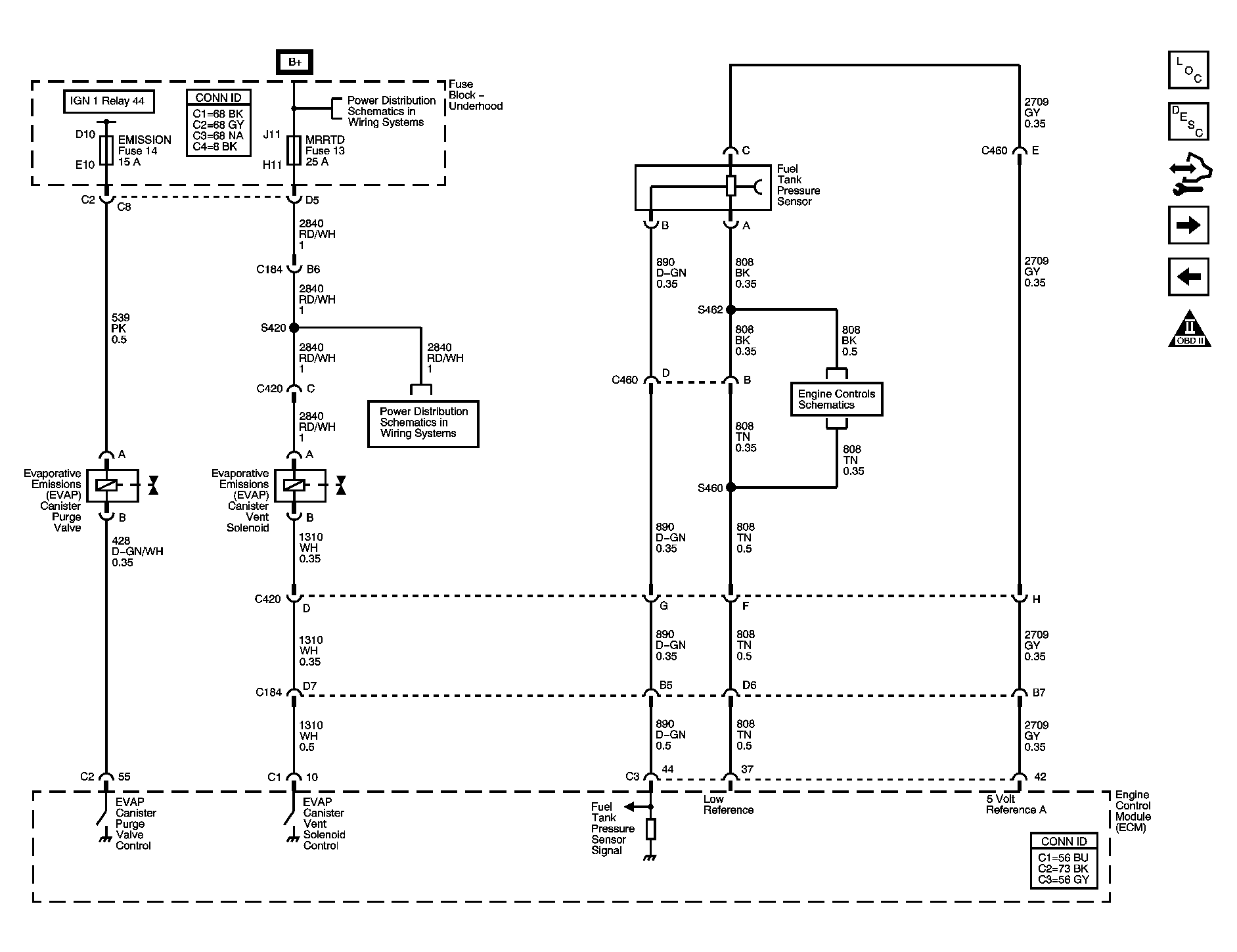

Fig 12: Fuel Controls - EVAP Controls Schematics

Courtesy of GENERAL MOTORS CORP.

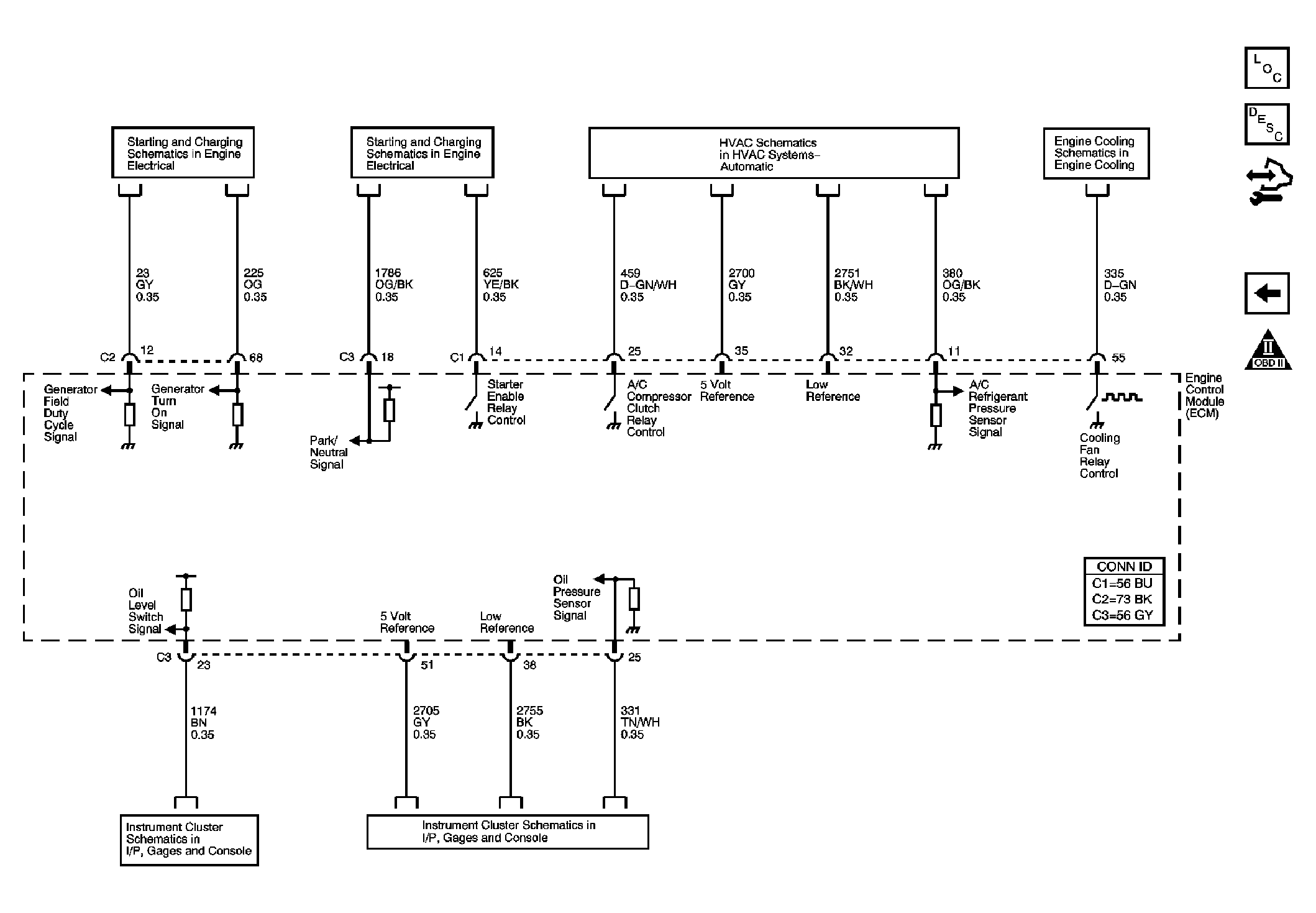

Fig 13: Controlled/Monitored Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.
