Automatic Transmission Shift Lock Control Component Views

Fig 1: Shift Lock Control Components (M82)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Control Assembly
2	A/T Shift Lock Control Solenoid Assembly
3	A/T Shift Lock Control Solenoid Assembly Connector
4	Accelerator Pedal Position (APP) Sensor
5	Accelerator Pedal
6	Brake Pedal
7	Brake Pedal Position (BPP) Sensor
8	Transmission Control Module (TCM)
9	Transmission Control Module (TCM) Connector
10	Fuse Block - Underhood

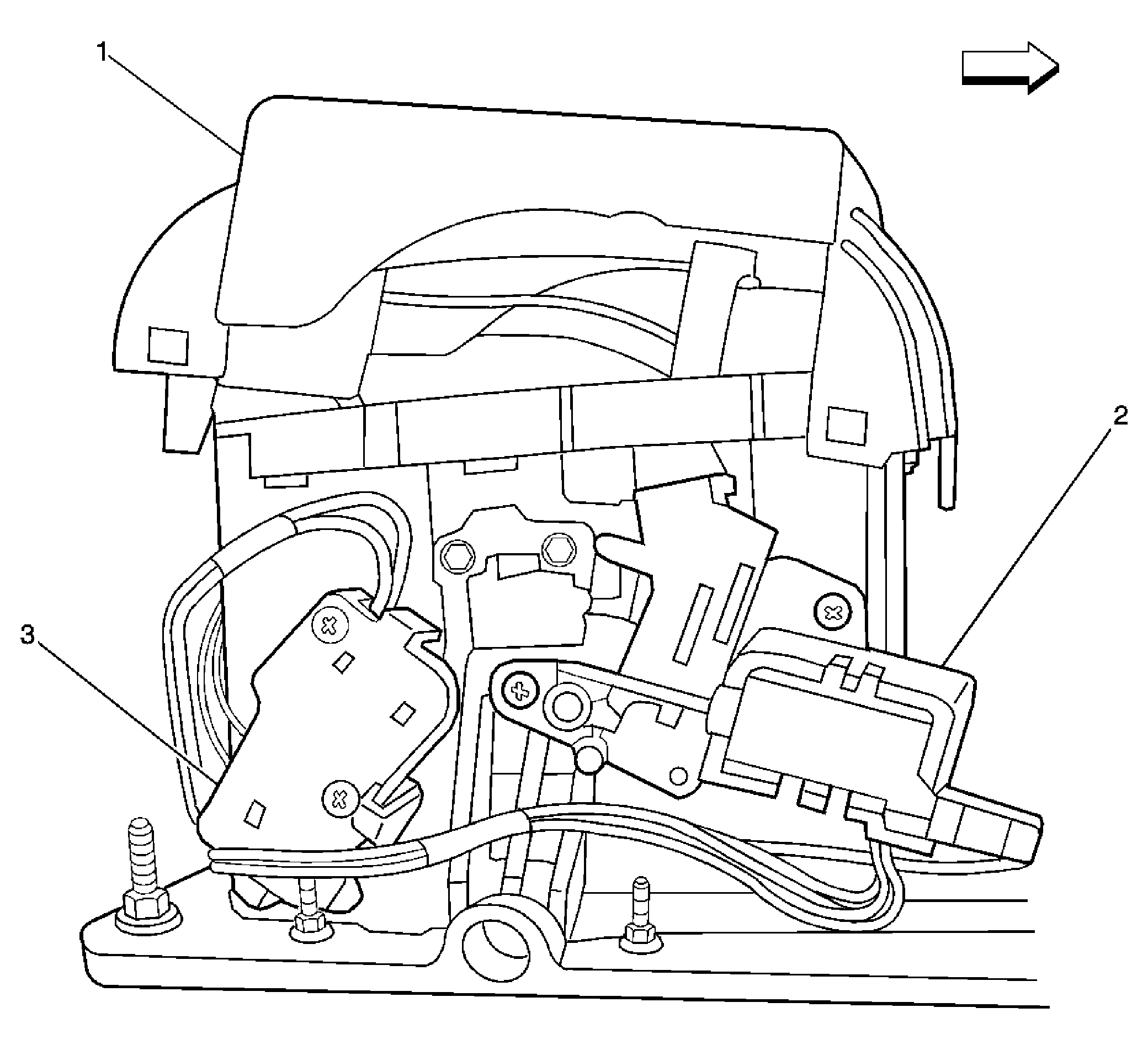

Fig 2: Automatic Transmission Shift Lock Control Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lever
1	A/T Shift Lock Control Solenoid
2	Tap Up/Tap Down Switch
