Inflatable Restraint Side Impact Sensing Module (SISM)

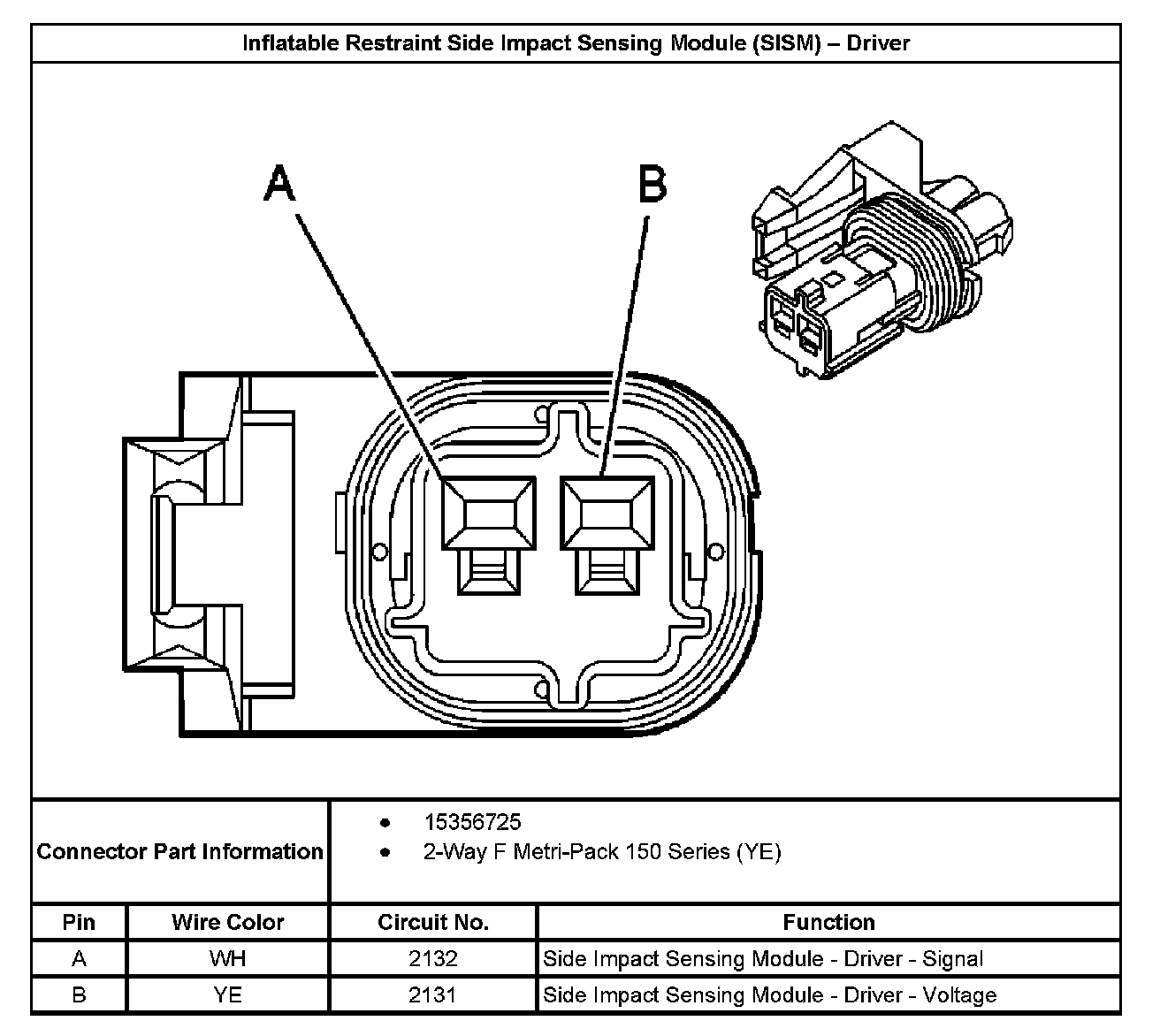

Inflatable Restraint Side Impact Sensing Module (SISM) - Driver:

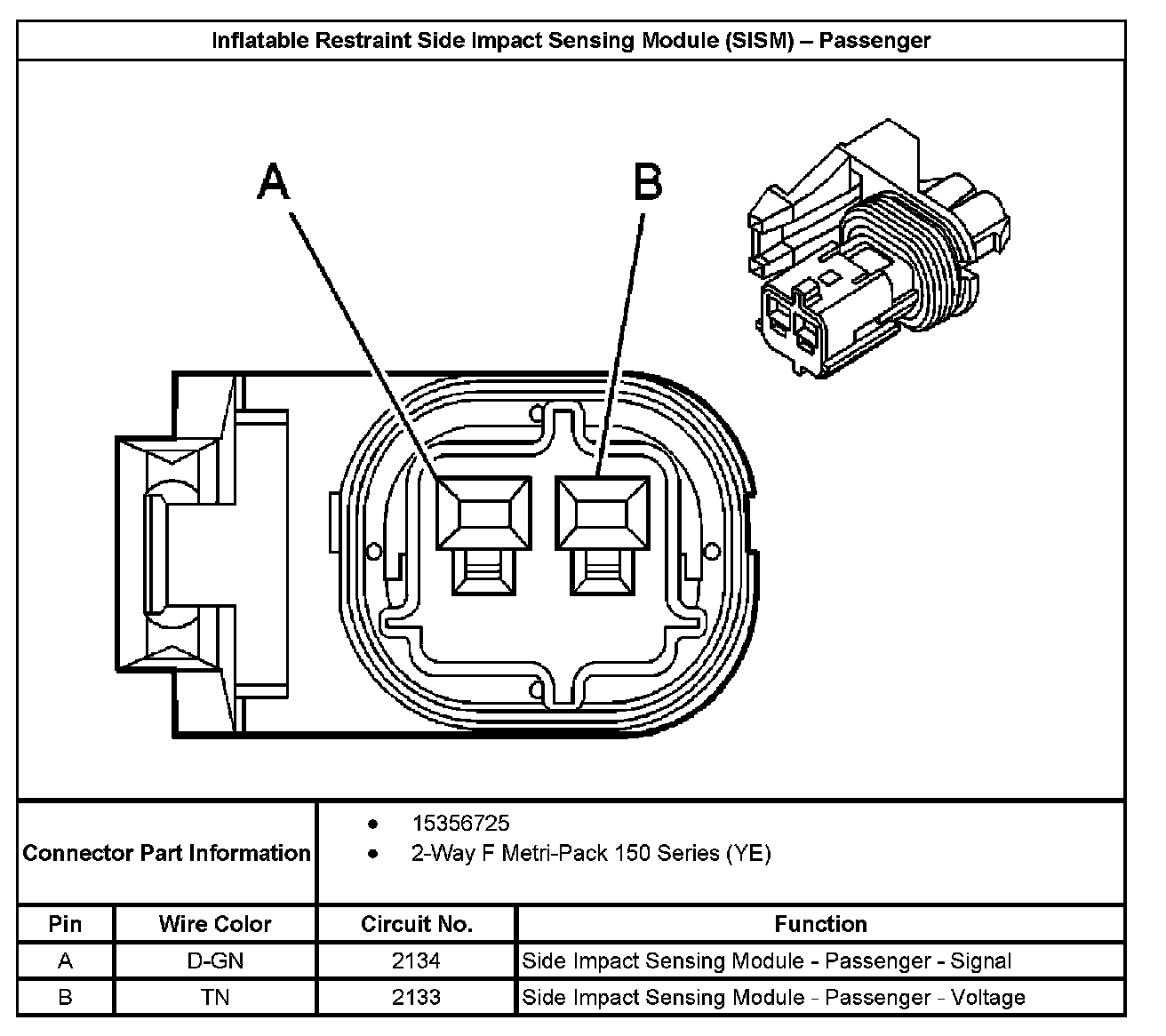

Inflatable Restraint Side Impact Sensing Module (SISM) - Passenger:
