Inflatable Restraint Side Impact Module

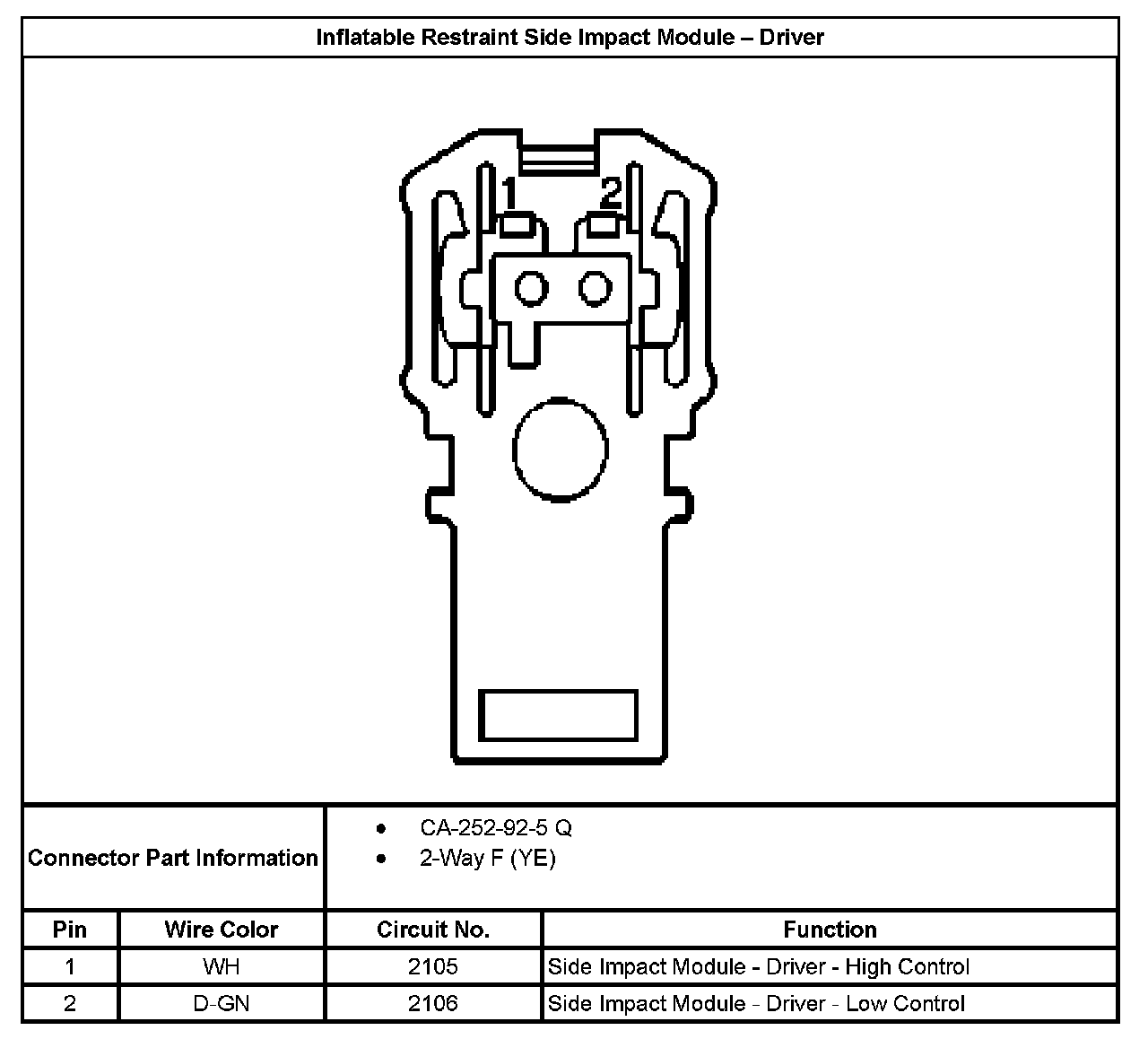

Inflatable Restraint Side Impact Module - Driver:

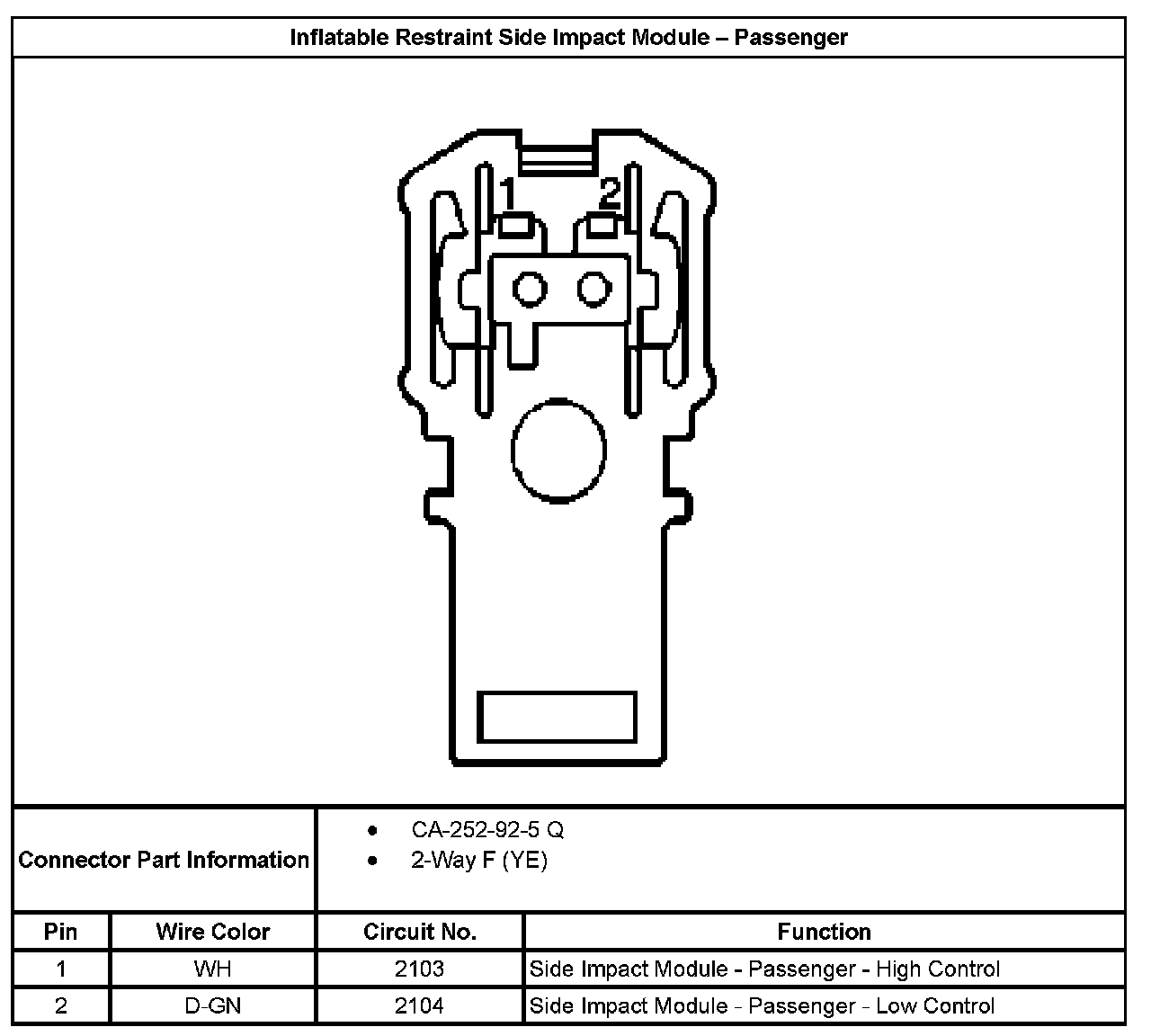

Inflatable Restraint Side Impact Module - Passenger:
