Right Rear Door Module (RRDM)

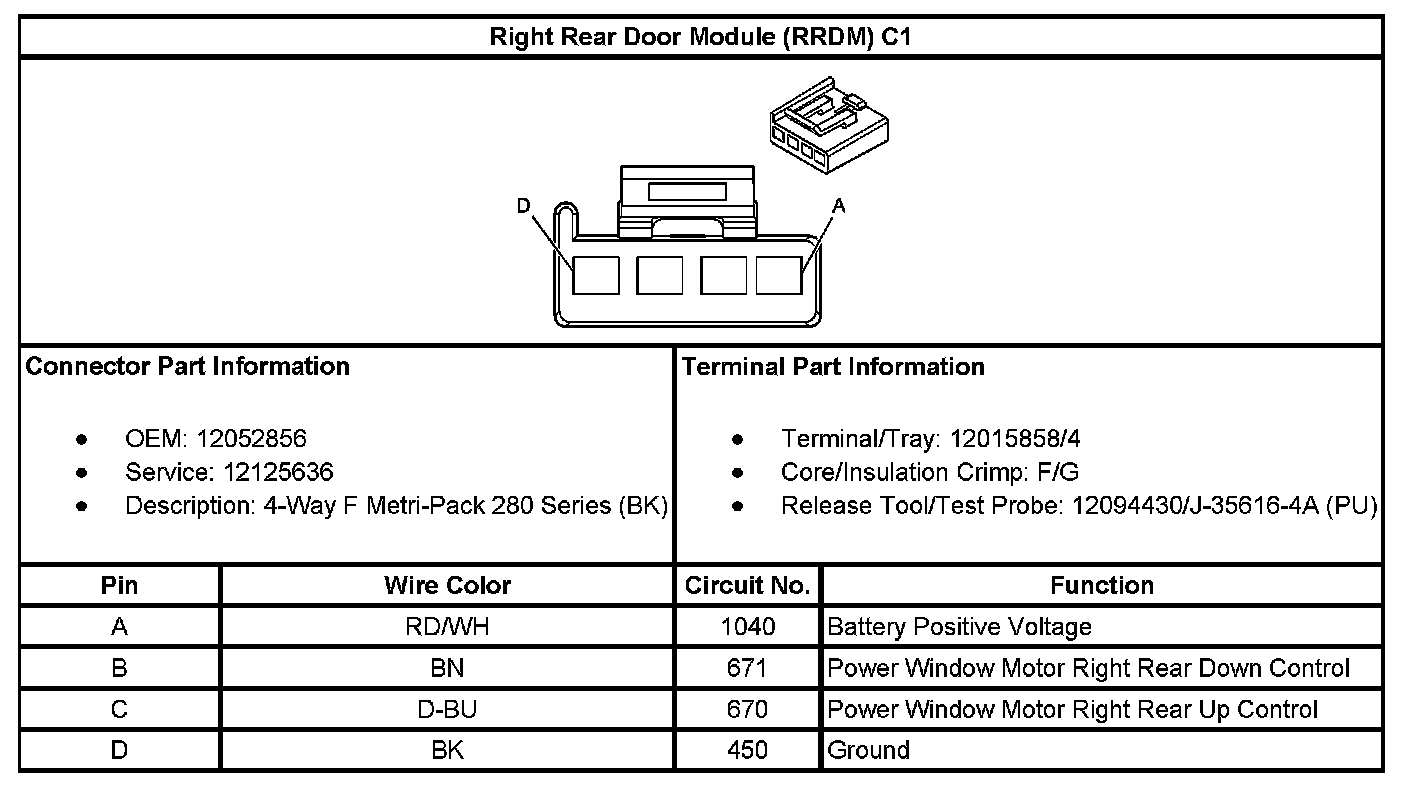

Right Rear Door Module (RRDM) C1:

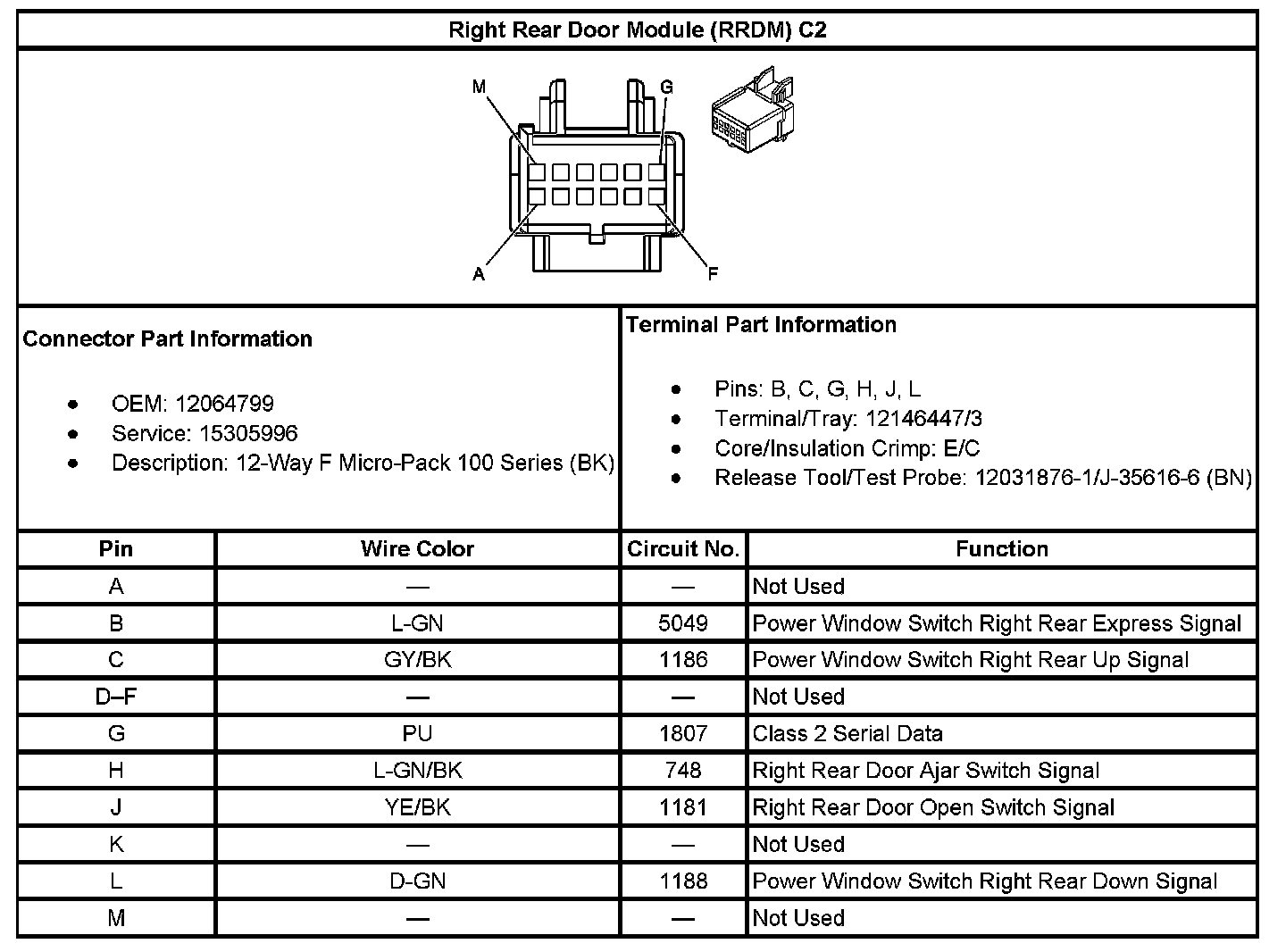

Right Rear Door Module (RRDM) C2:

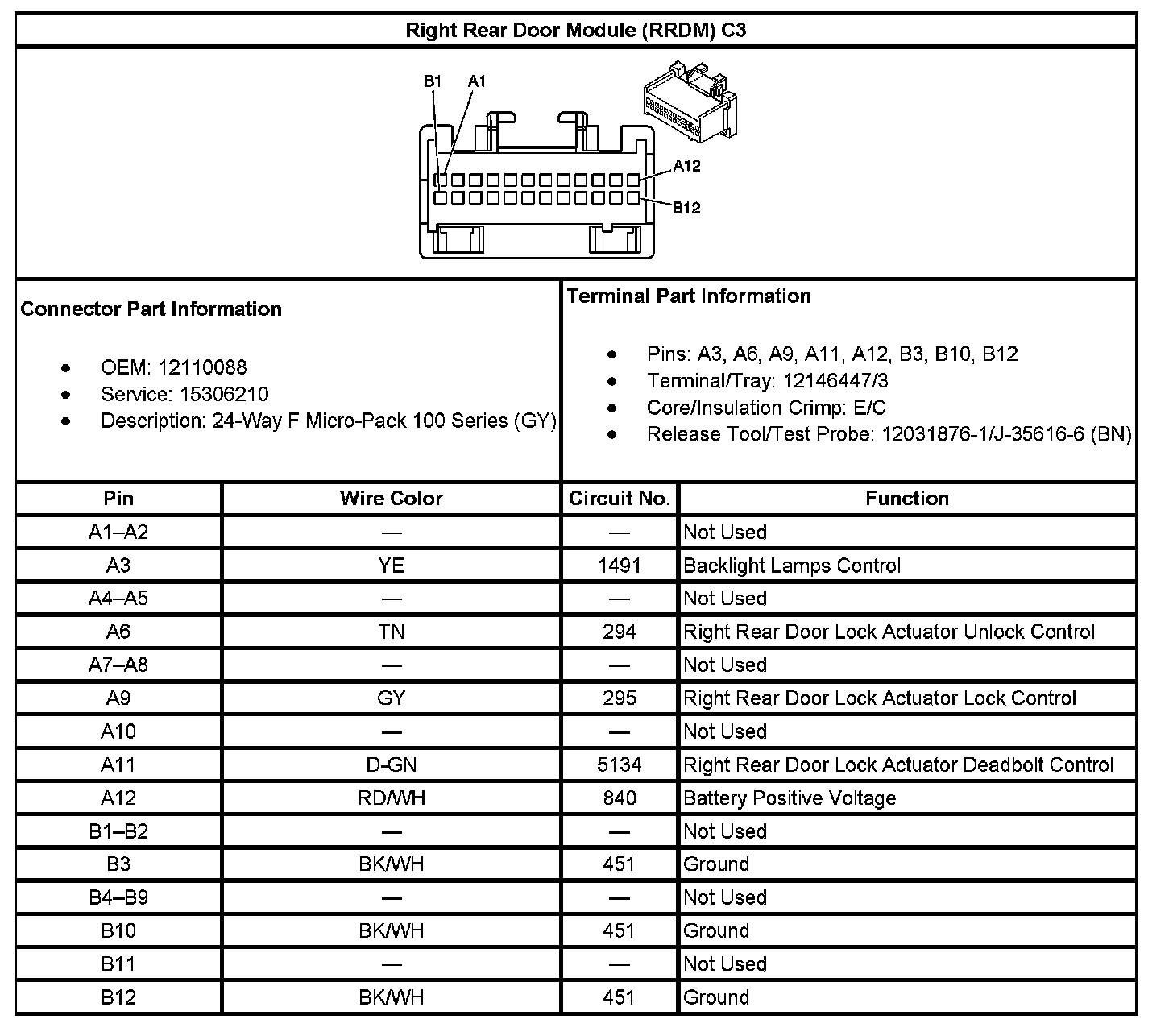

Right Rear Door Module (RRDM) C3:
