Electronic Brake Control Module

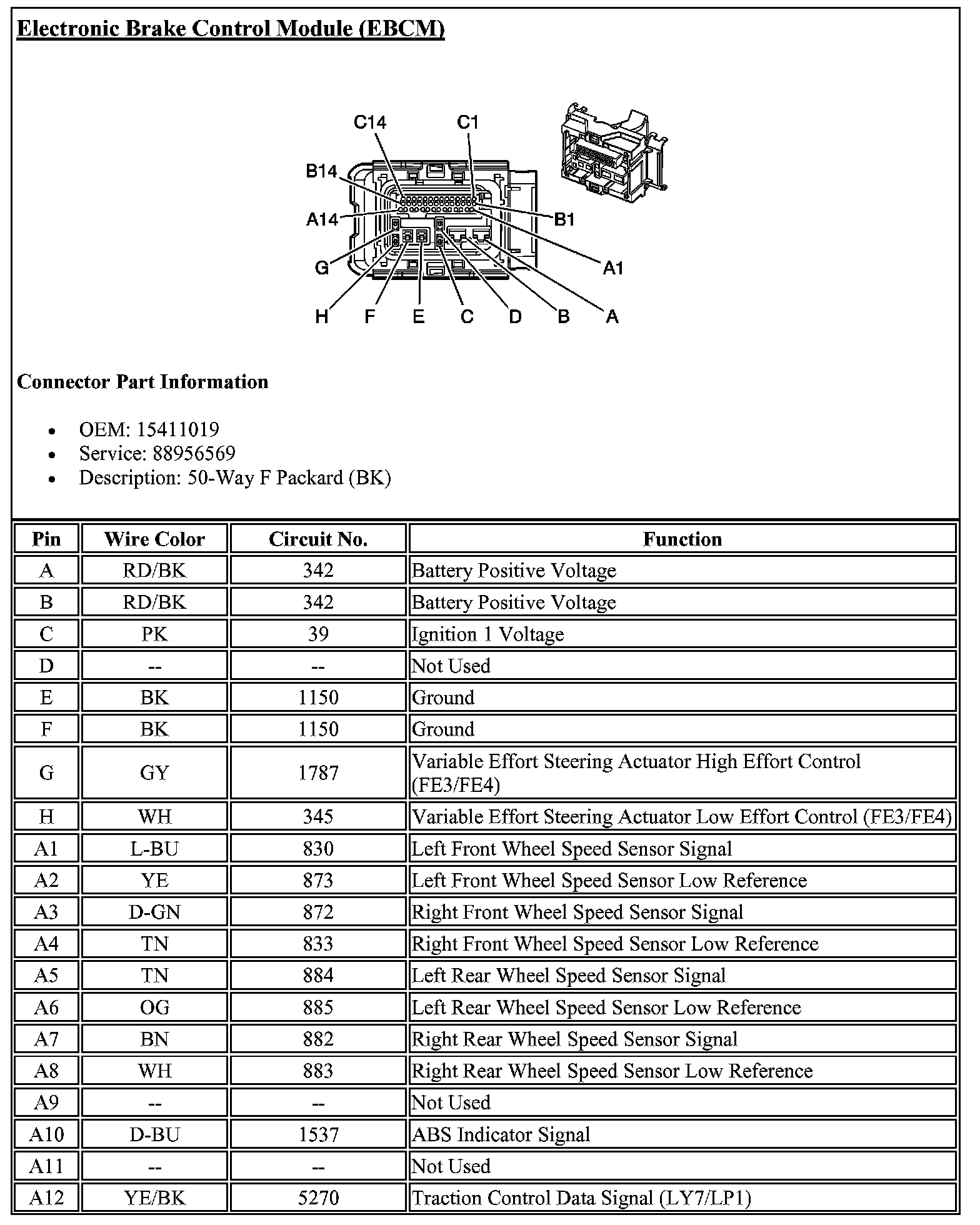

Electronic Brake Control Module (Part 1):

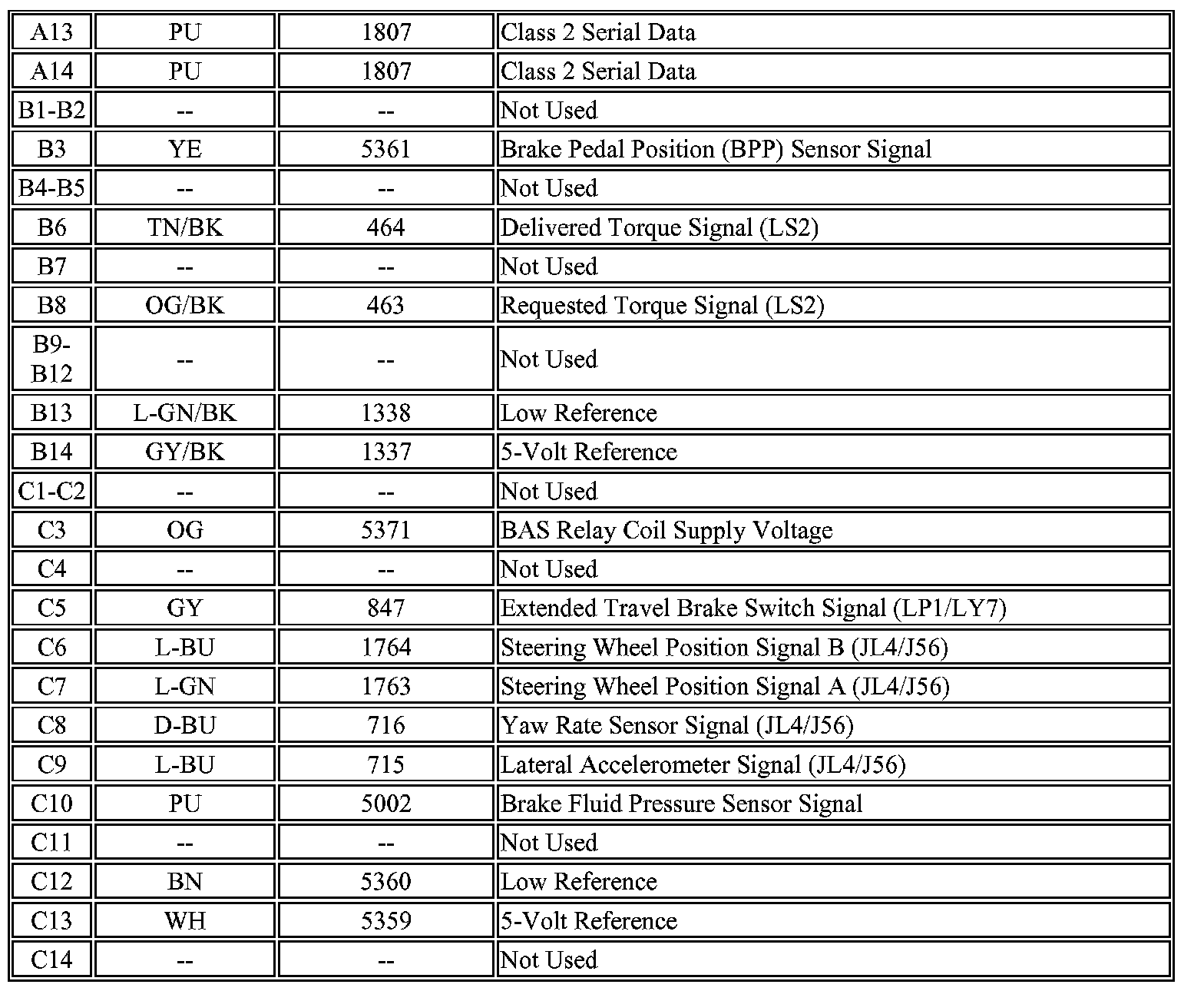

Electronic Brake Control Module (Part 2):
