Fuse Block - Right Rear

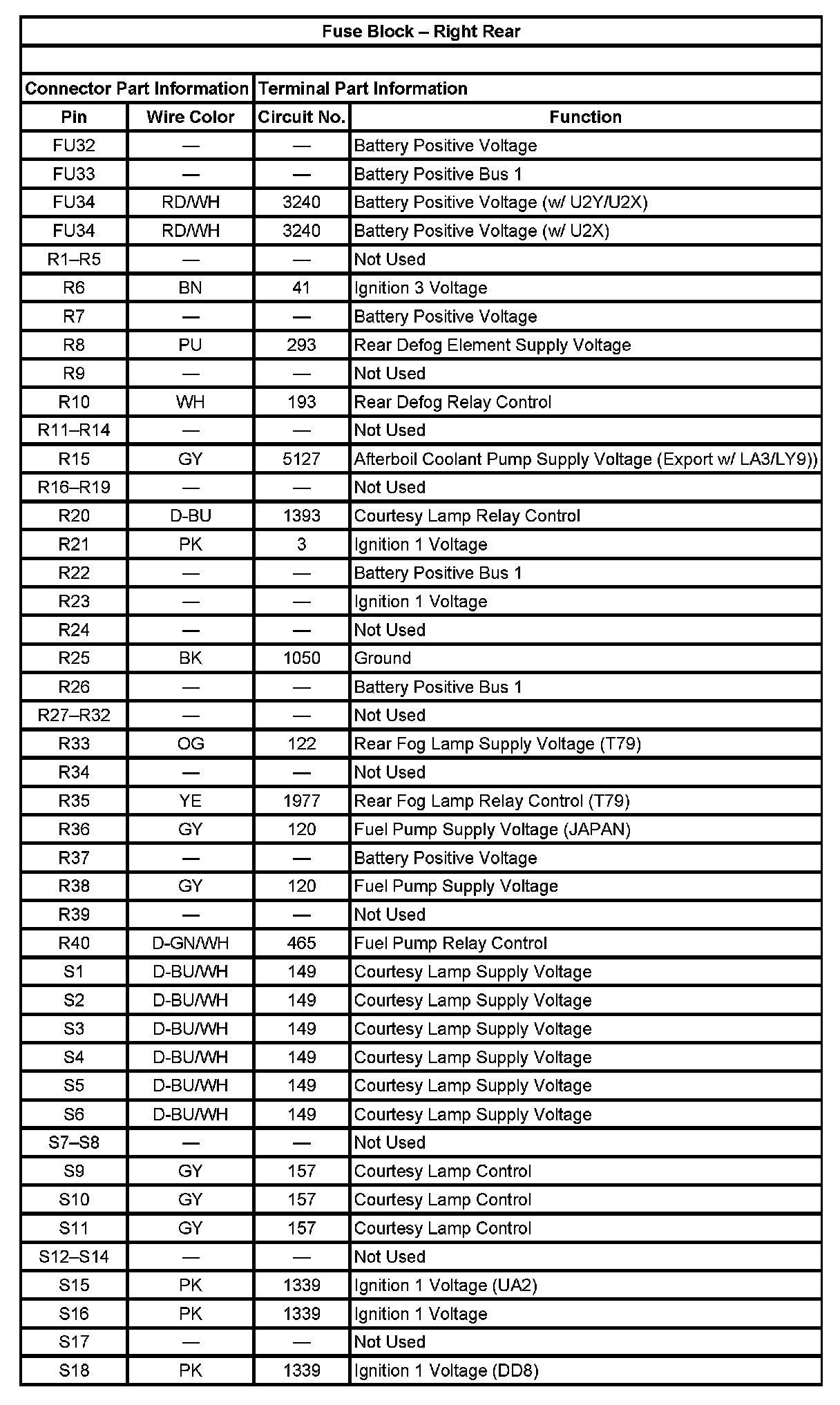

Fuse Block - Right Rear (Part 1):

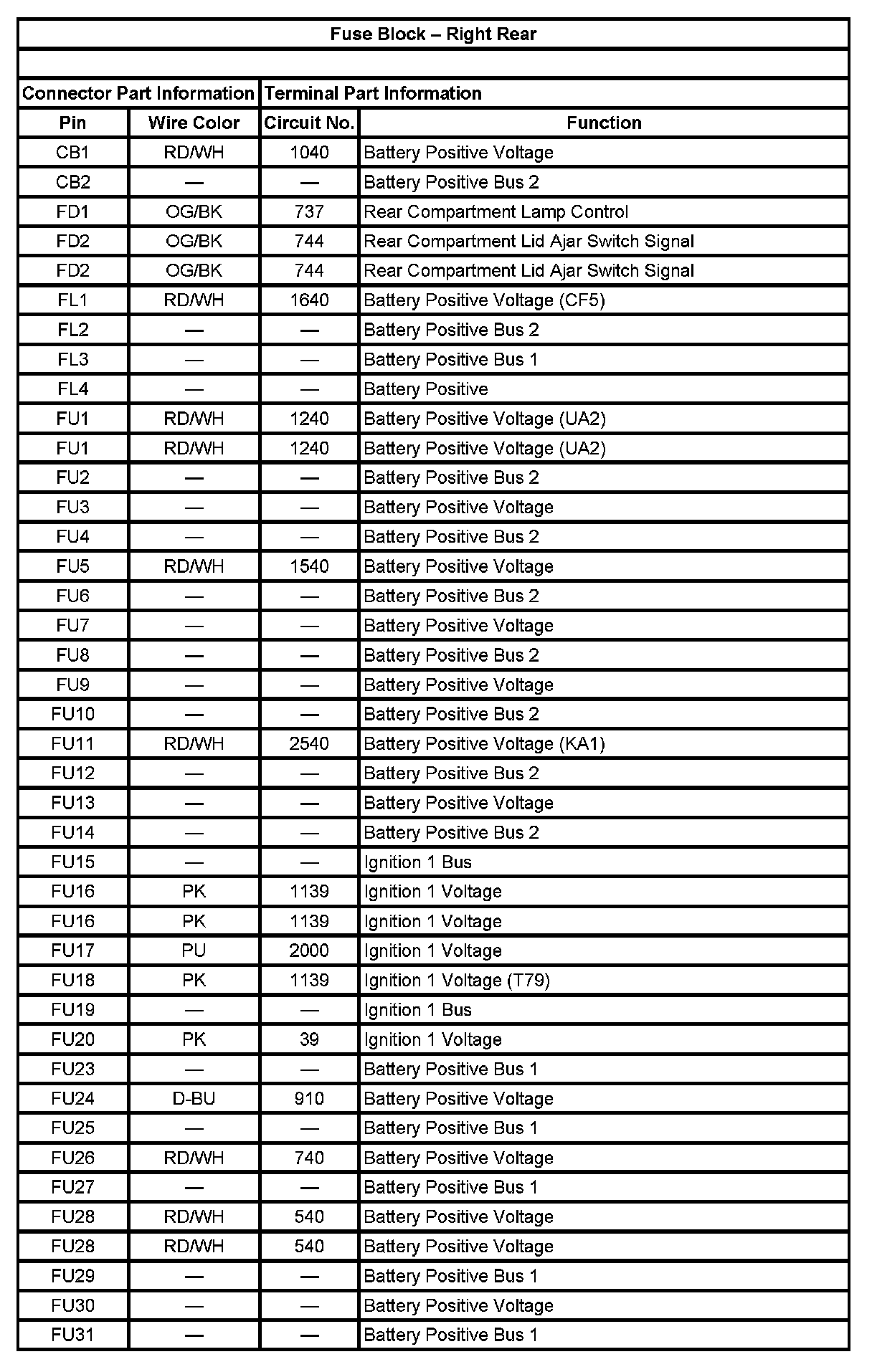

Fuse Block - Right Rear (Part 2):
Fuse Block - Right Rear (Part 3):
