Turn Signal/Multifunction Switch C3

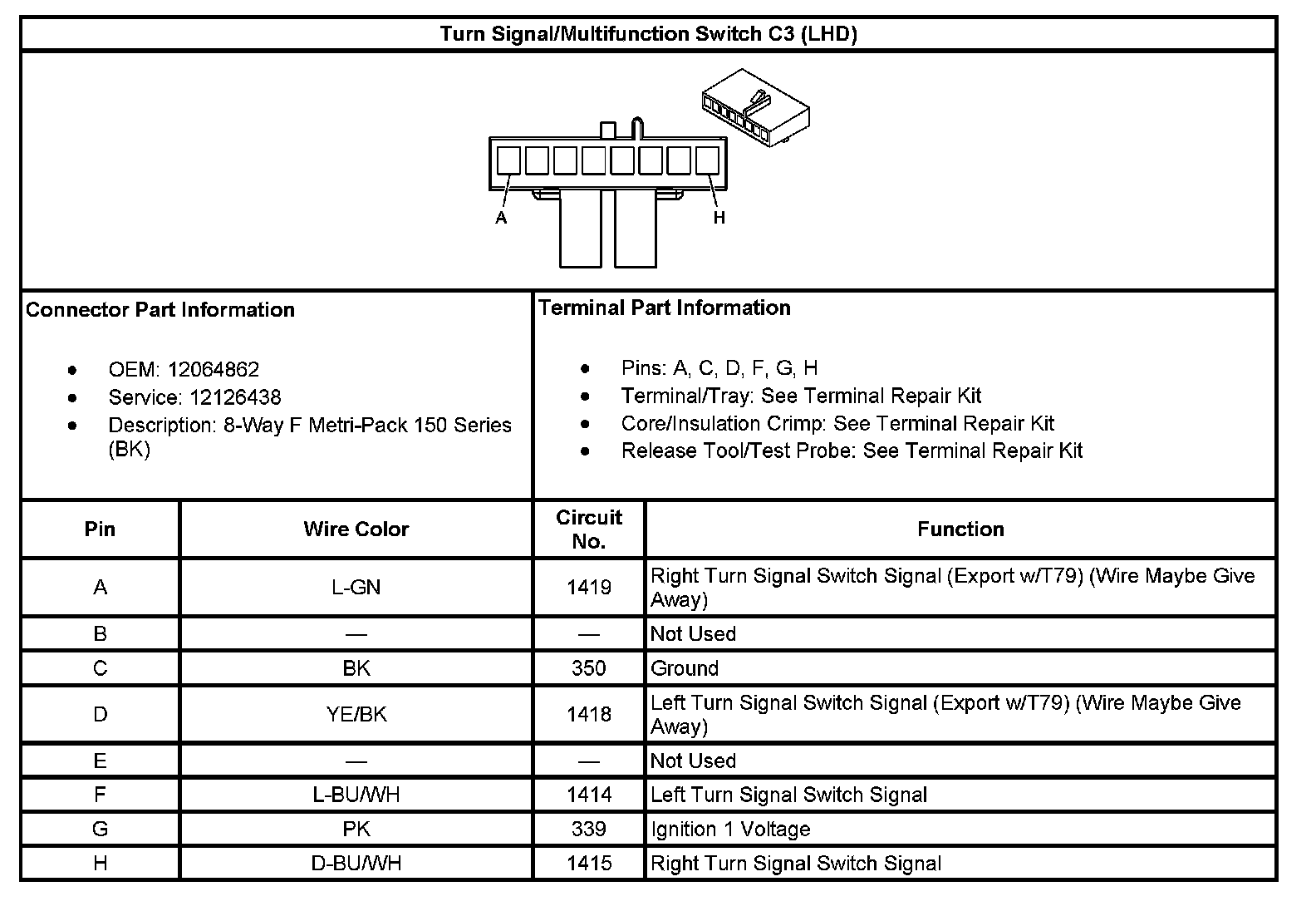

Turn Signal/Multifunction Switch C3 (LHD):

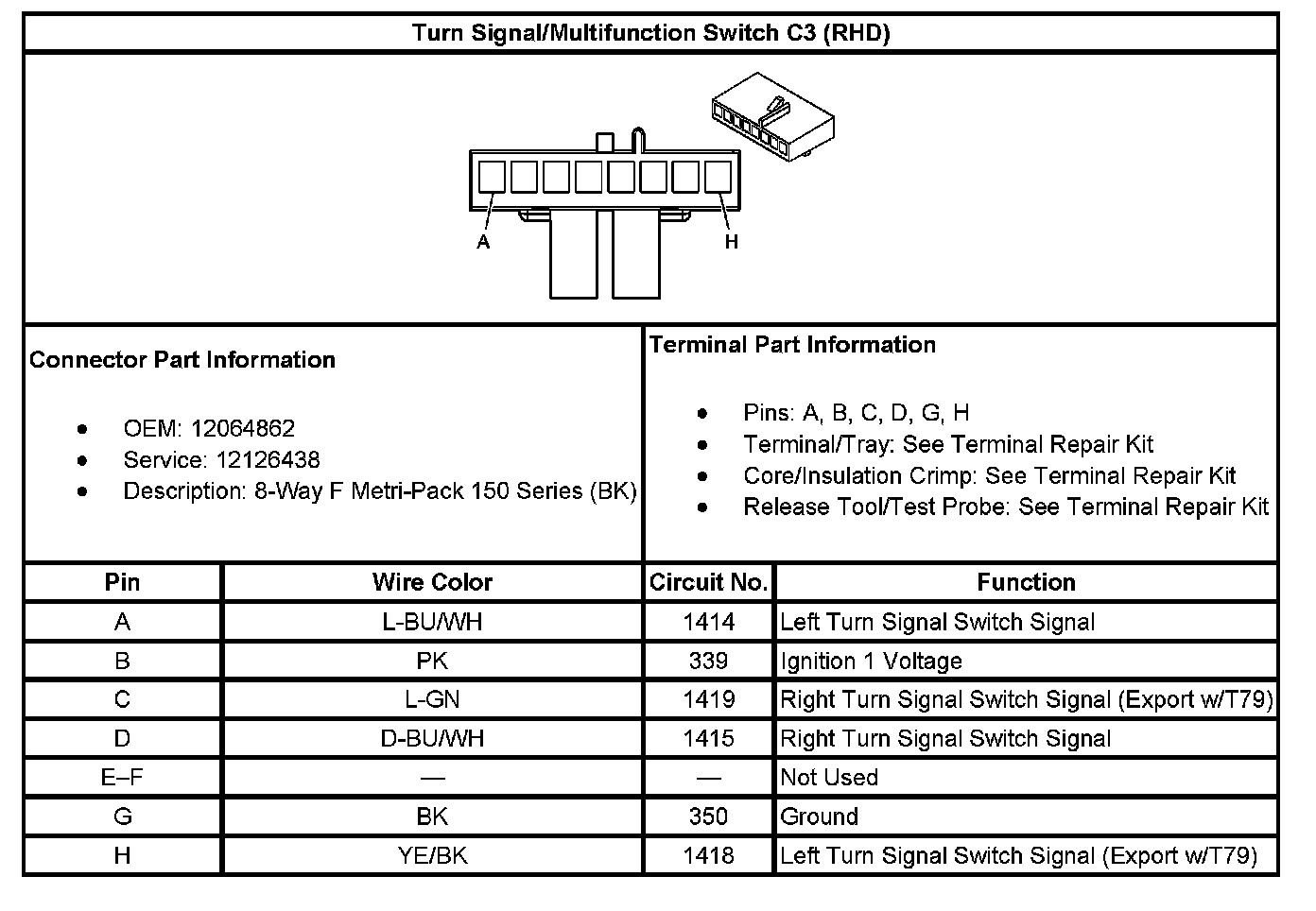

Turn Signal/Multifunction Switch C3 (RHD):
