Turn Signal/Multifunction Switch C4

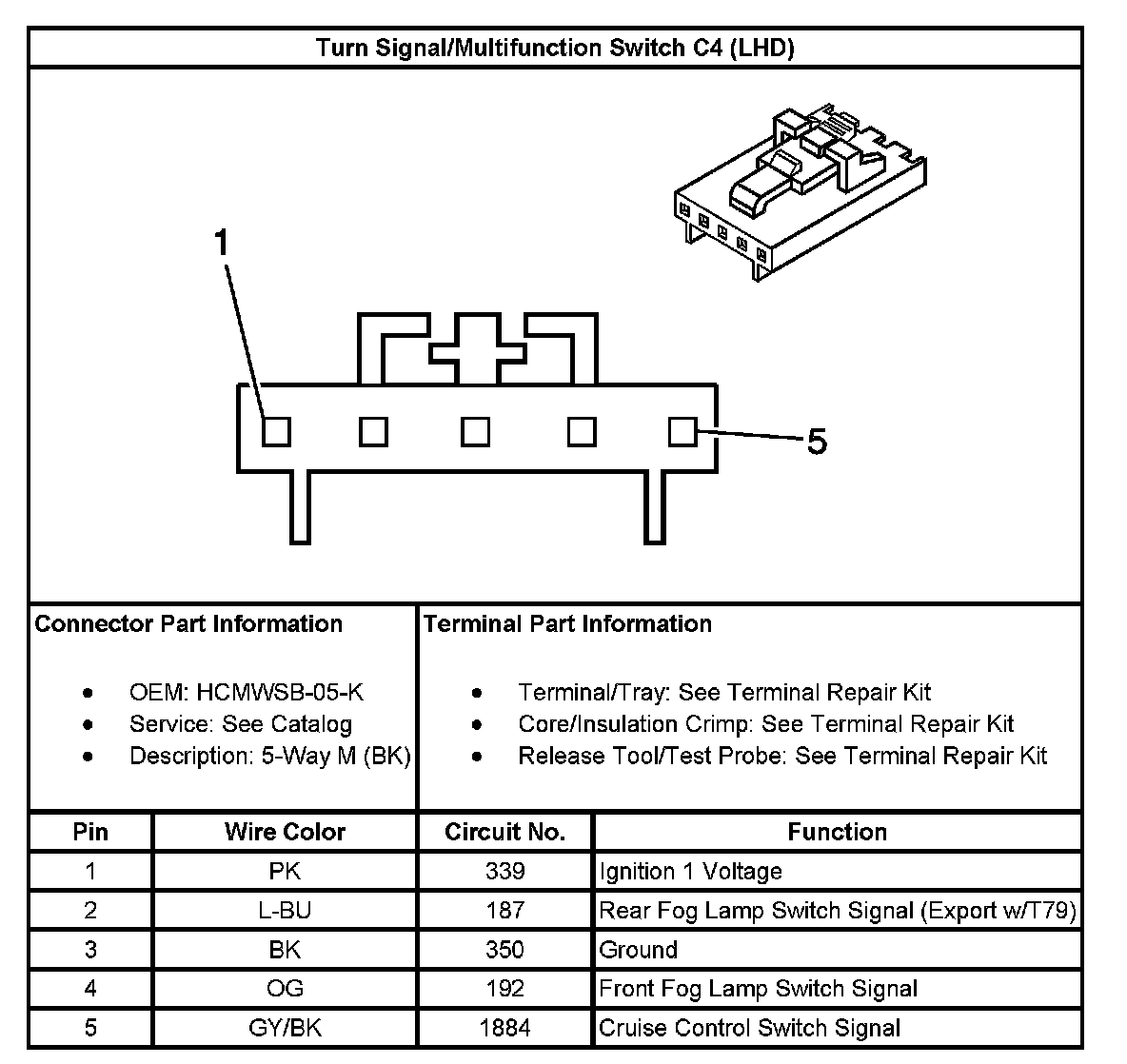

Turn Signal/Multifunction Switch C4 (LHD):

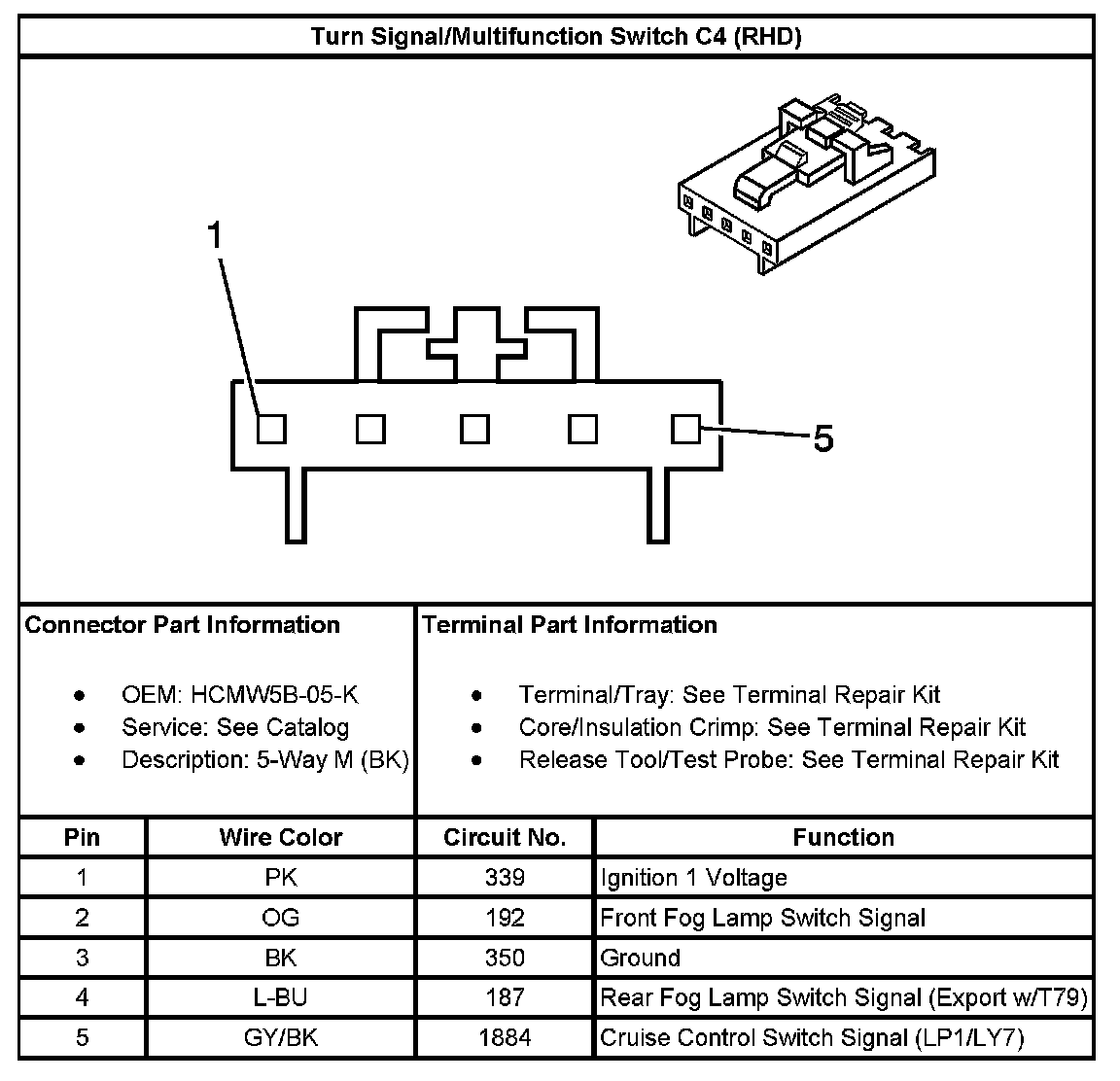

Turn Signal/Multifunction Switch C4 (RHD):
