Wheel Speed Sensor

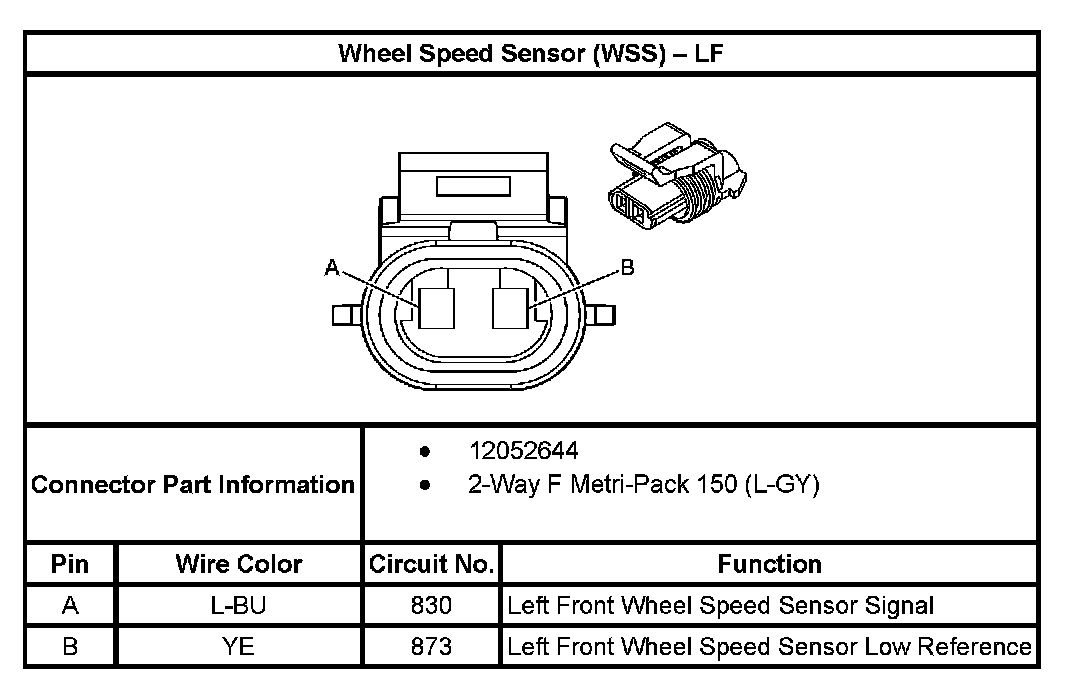

Wheel Speed Sensor (WSS) - LF:

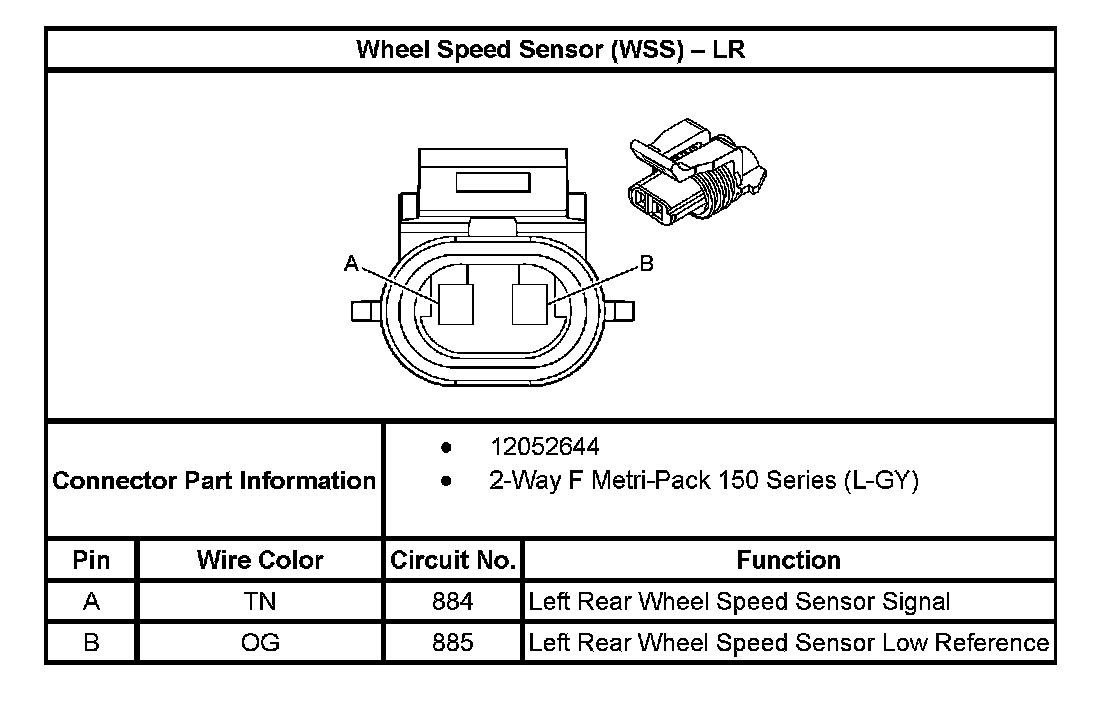

Wheel Speed Sensor (WSS) - LR:

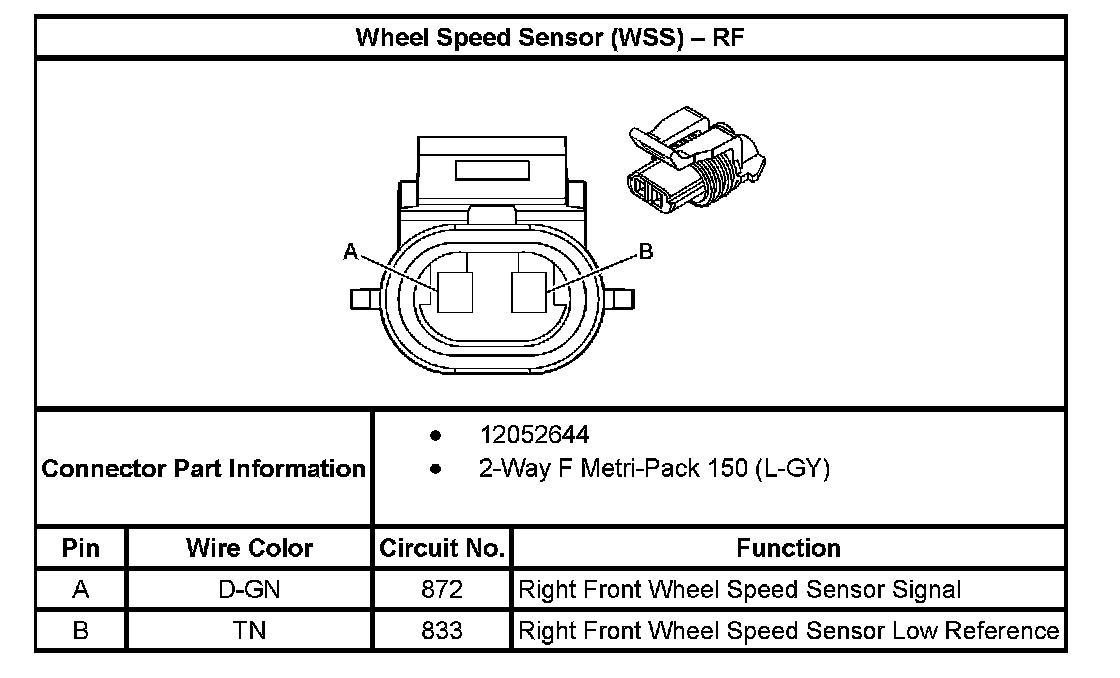

Wheel Speed Sensor (WSS) - RF:

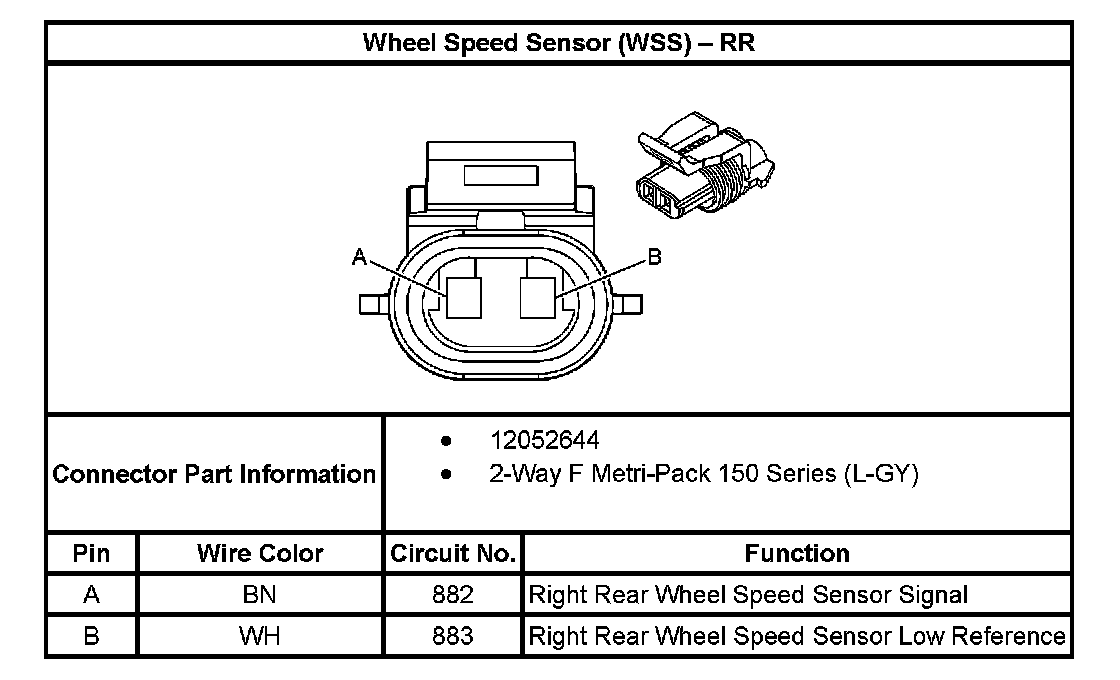

Wheel Speed Sensor (WSS) - RR:
