Generic Scan Tool (GST)

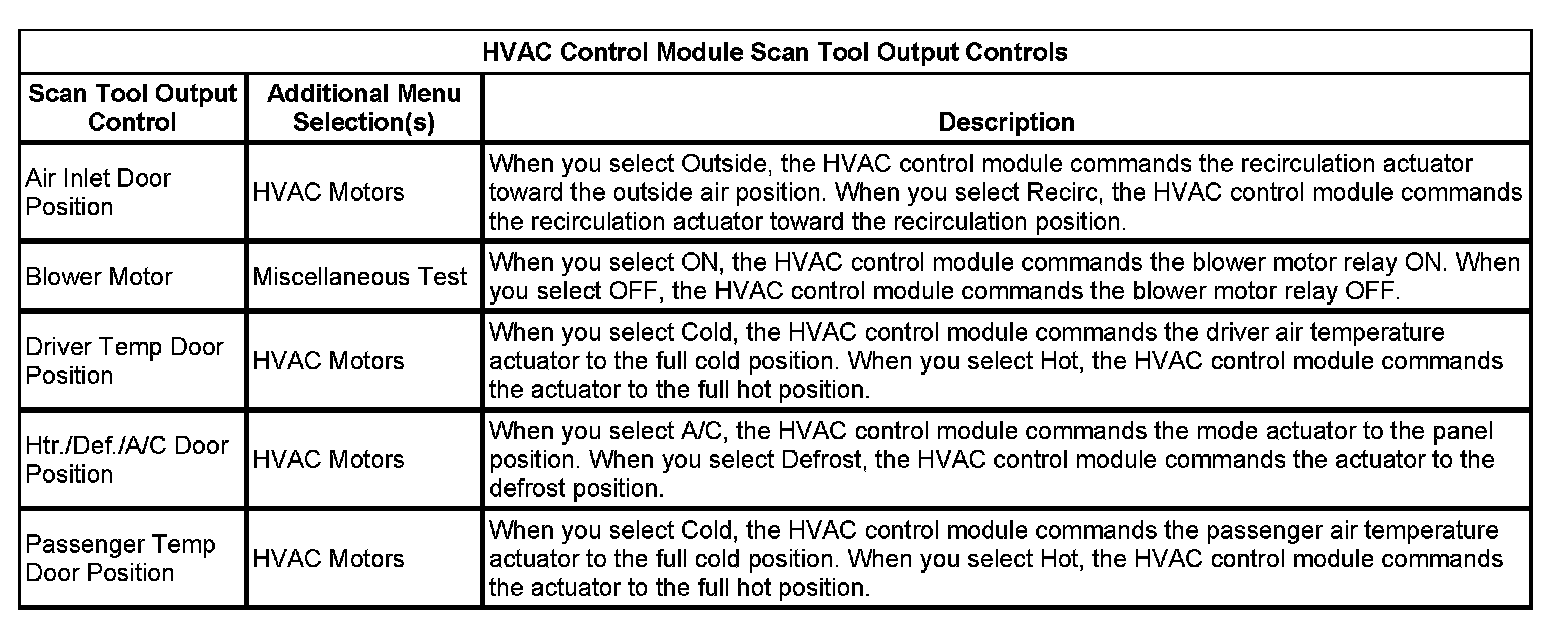

HVAC Control Module Scan Tool Output Controls:



ECM Scan Tool Output Controls:
