Data Link Connector: Service and Repair

DATA LINK CONNECTOR REPLACEMENT

REMOVAL PROCEDURE
1. Lower the instrument panel (I/P) closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side in Instrument Panel, Gages, and Console.

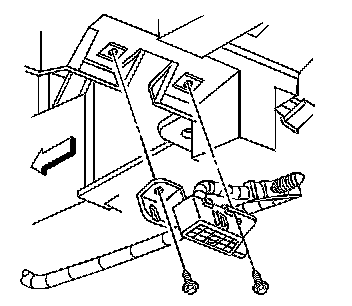

2. Remove the screws securing the data link connector to the I/P carrier.

INSTALLATION PROCEDURE




1. Install the screws securing the data link connector to the I/P carrier.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).

2. Install the I/P closeout panel.
