Rear Integration Module Replacement (Rear Body Control Module)

REAR INTEGRATION MODULE REPLACEMENT (REAR BODY CONTROL MODULE)

REMOVAL PROCEDURE
1. Remove the rear shelf.

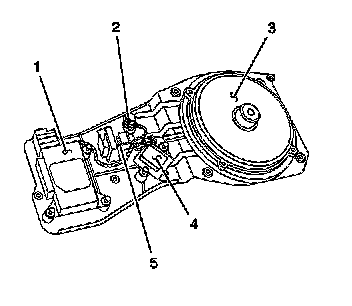

2. Remove the push pins securing the rear body control module (RBCM) (1) to the electrical carrier assembly.
3. Disconnect the electrical connectors.
4. Remove the RBCM.

INSTALLATION PROCEDURE




1. Install the RBCM (1) to the electrical carrier.
2. Reinstall the push pin fasteners.
3. Reinstall the rear shelf.
4. If installing a replacement RBCM, program the module. Refer to Control Module References for programming and setup information. Programming and Relearning
