Starter Motor: Service and Repair

STARTER MOTOR REPLACEMENT

REMOVAL PROCEDURE
1. Turn the ignition OFF.
2. Disconnect the battery negative cable.
3. Raise and support the vehicle. Refer to Vehicle Lifting.

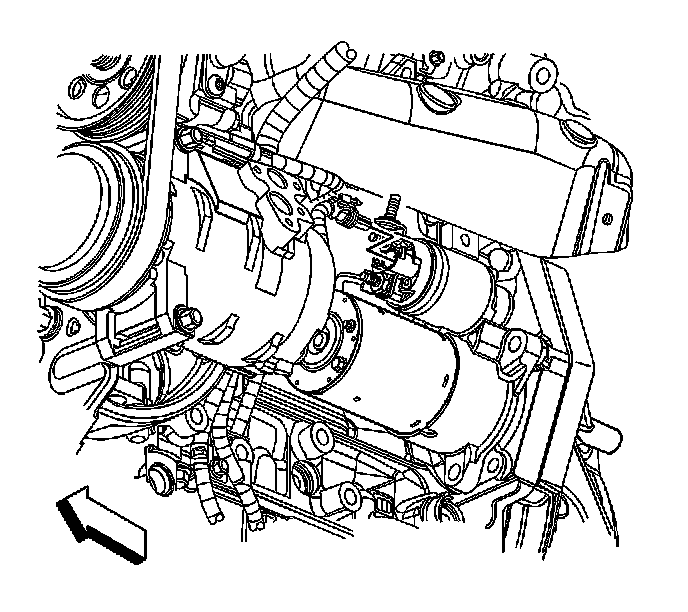

4. Disconnect the starter solenoid electrical connector from the starter.

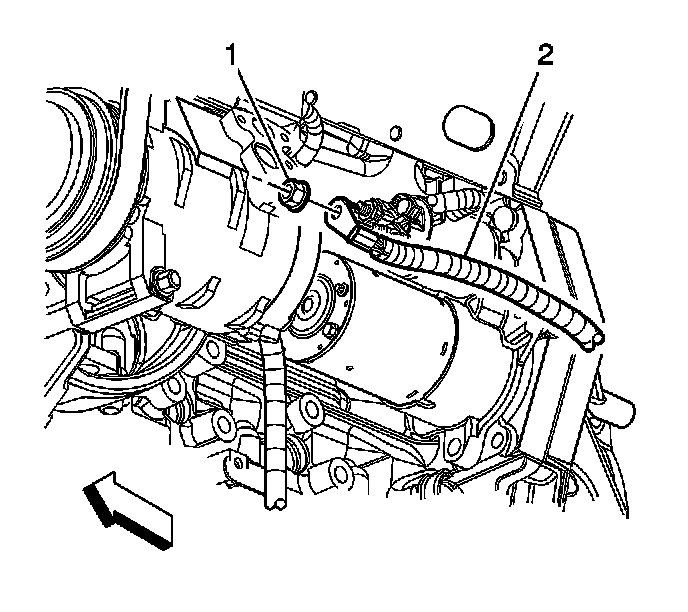

5. Remove the starter terminal nut (1) and the battery positive cable (2) from the starter.

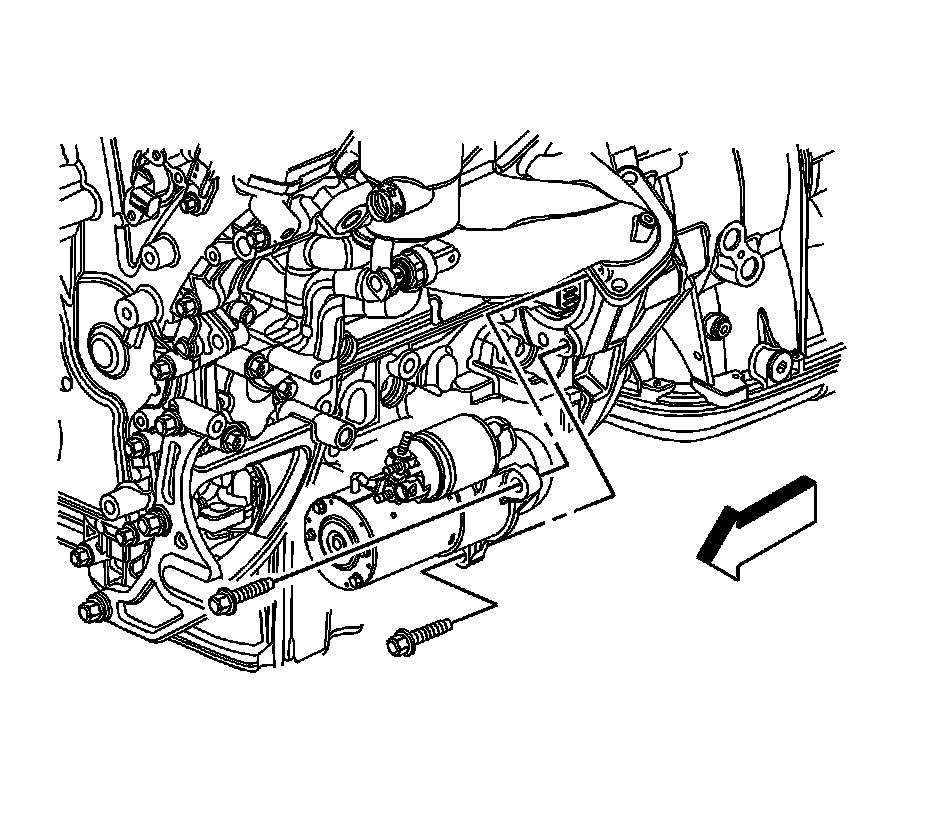

6. Remove the starter motor bolts.
7. Remove the starter motor.

INSTALLATION PROCEDURE




1. Install the starter motor.
2. Install the starter motor bolts.

NOTE: Refer to Fastener Notice.

Tighten the bolts to 50 N.m (37 lb ft).




3. Install the battery positive cable (2) to the starter and install the starter terminal nut (1).

Tighten the nut to 13 N.m (115 lb in).




4. Connect the electrical connector to the starter solenoid.
5. Lower the vehicle.
