Control Module: Locations

Automatic Transmission Shift Lock Control Component Views

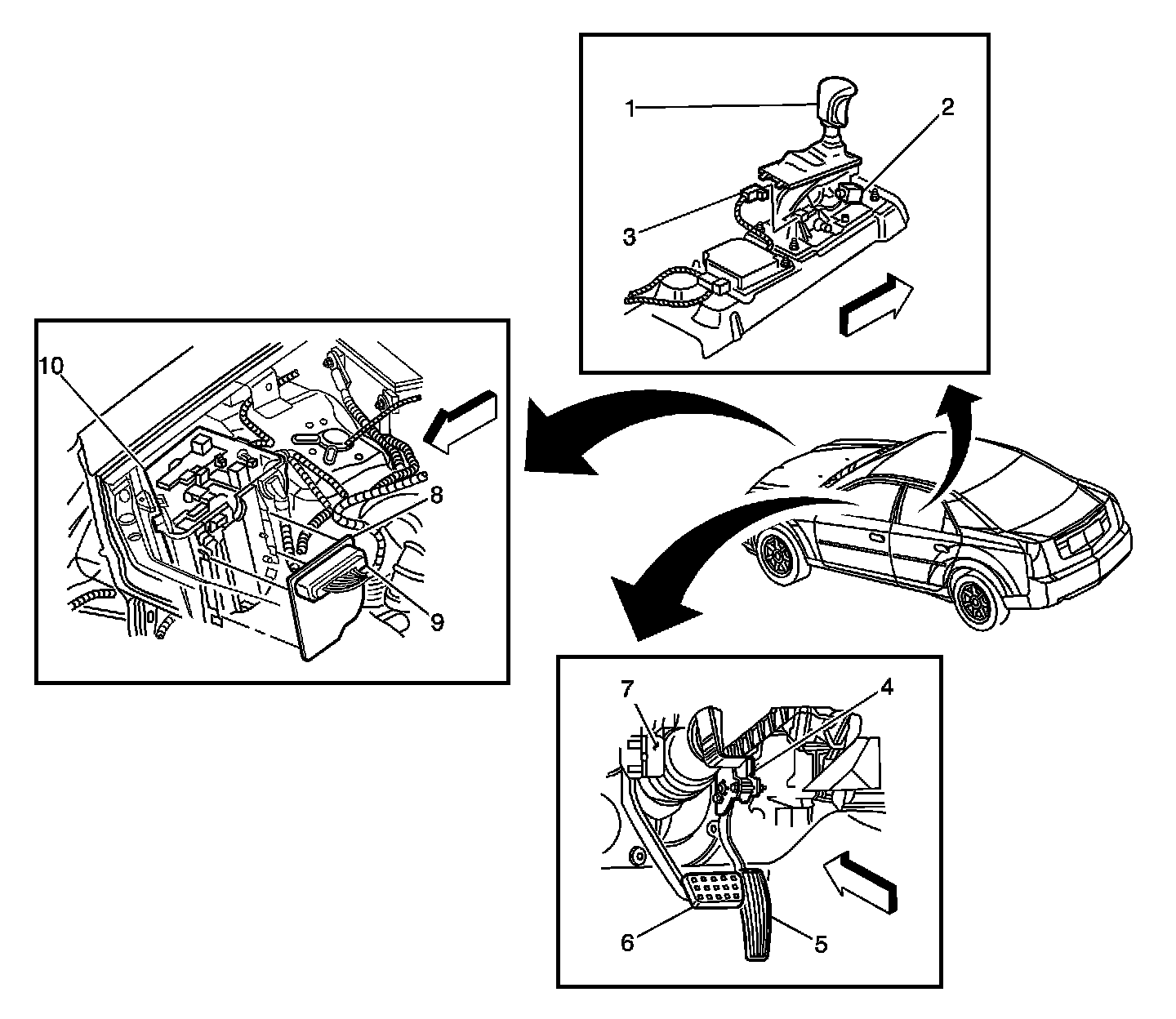

Shift Lock Control Components (M82)

Shift Lock Control Components (M82):

1 - A/T Shift Control Assembly
2 - A/T Shift Lock Control Solenoid Assembly
3 - A/T Shift Lock Control Solenoid Assembly Connector
4 - Accelerator Pedal Position (APP) Sensor
5 - Accelerator Pedal
6 - Brake Pedal
7 - Brake Pedal Position (BPP) Sensor
8 - Transmission Control Module (TCM)
9 - Transmission Control Module (TCM) Connector
10 - Fuse Block - Underhood

Automatic Transmission Shift Lock Control Component Views

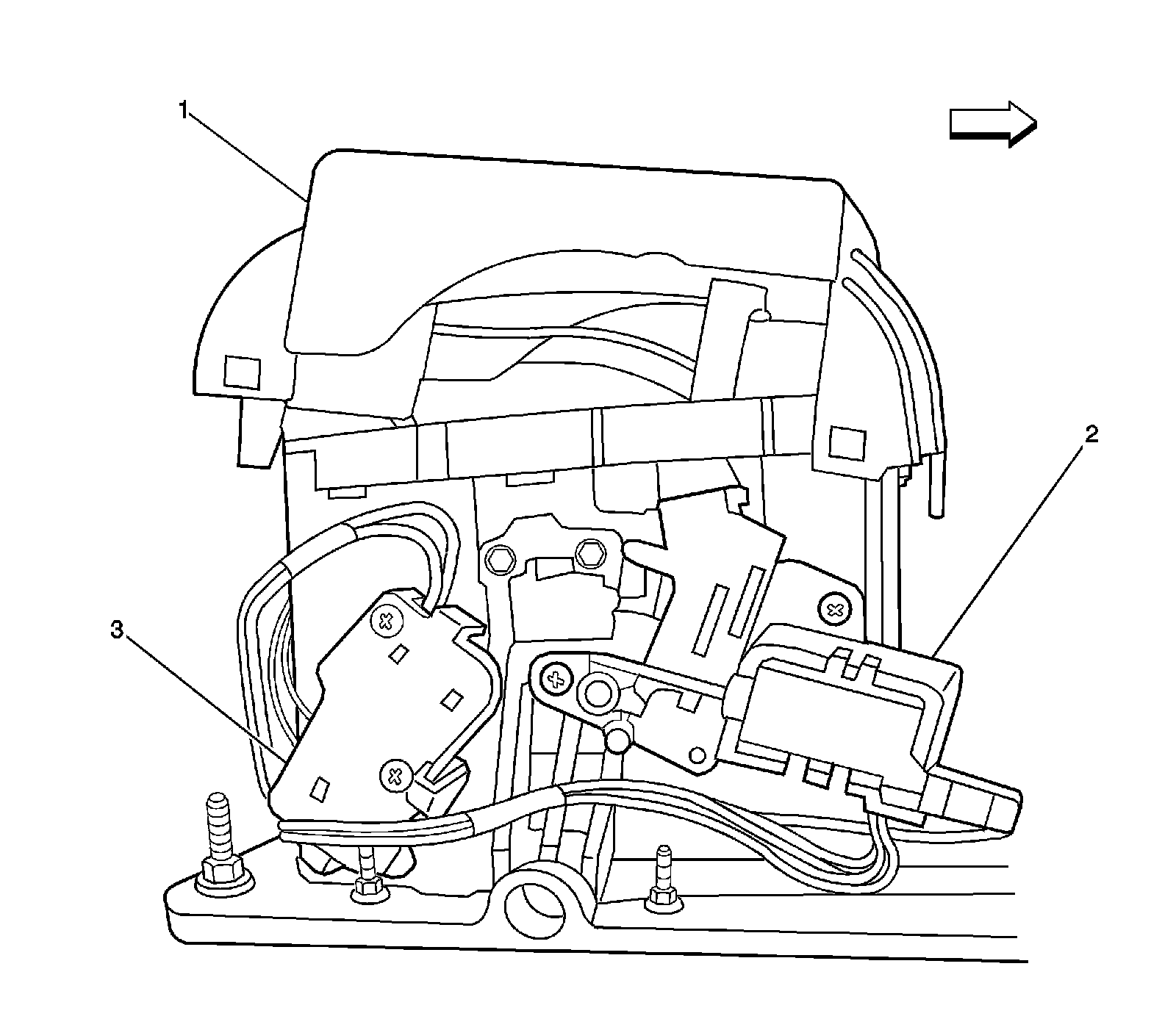

Automatic Transmission Shift Lock Control Component Views:

1 - Automatic Transmission Shift Lever
1 - A/T Shift Lock Control Solenoid
2 - Tap Up/Tap Down Switch
