Object Detection Component Views

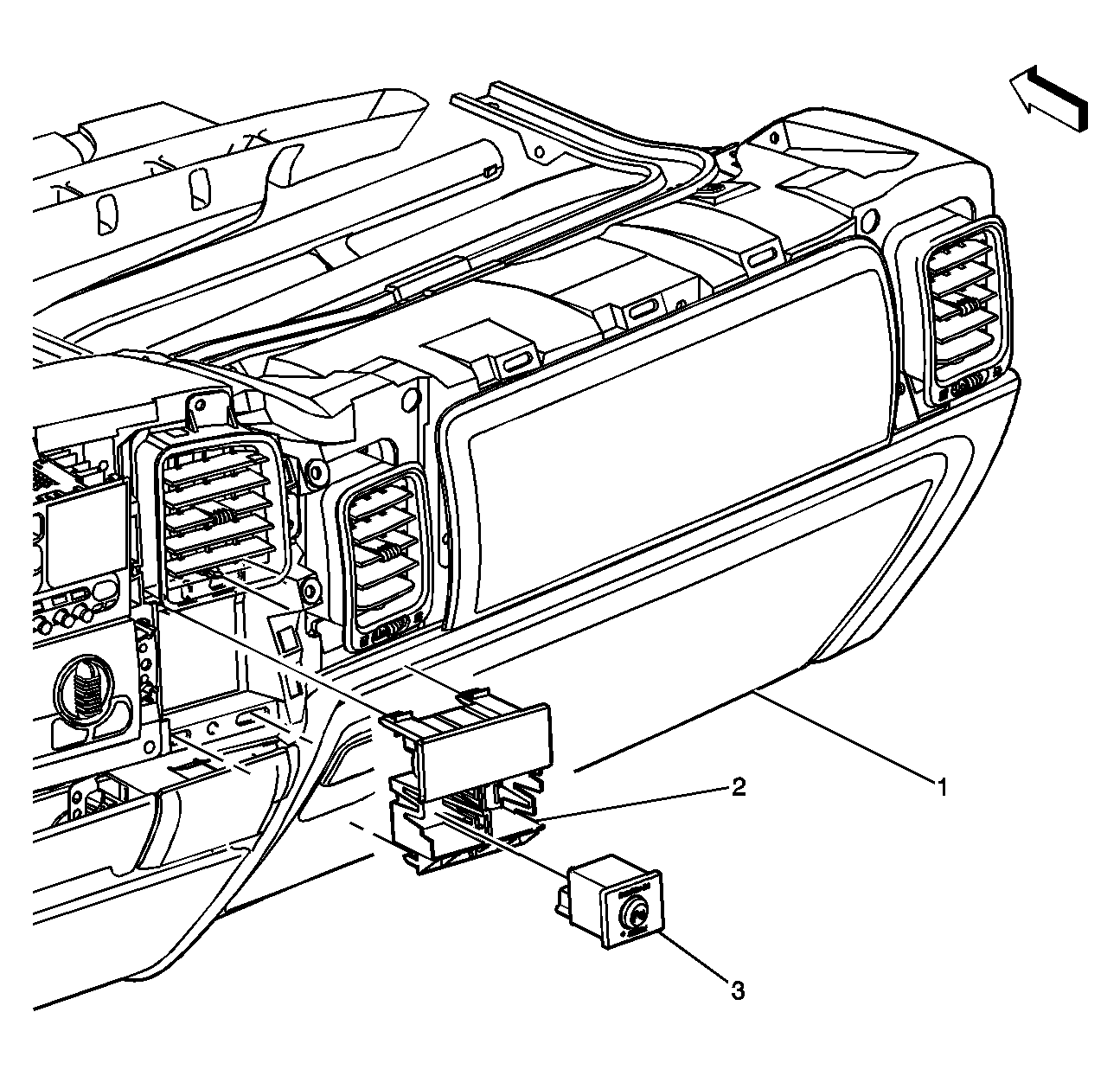

Fig 1: Instrument Panel - Right Front Component View
GM852231Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Switch Housing
3 Rear Parking Assist (RPA) Disable Switch

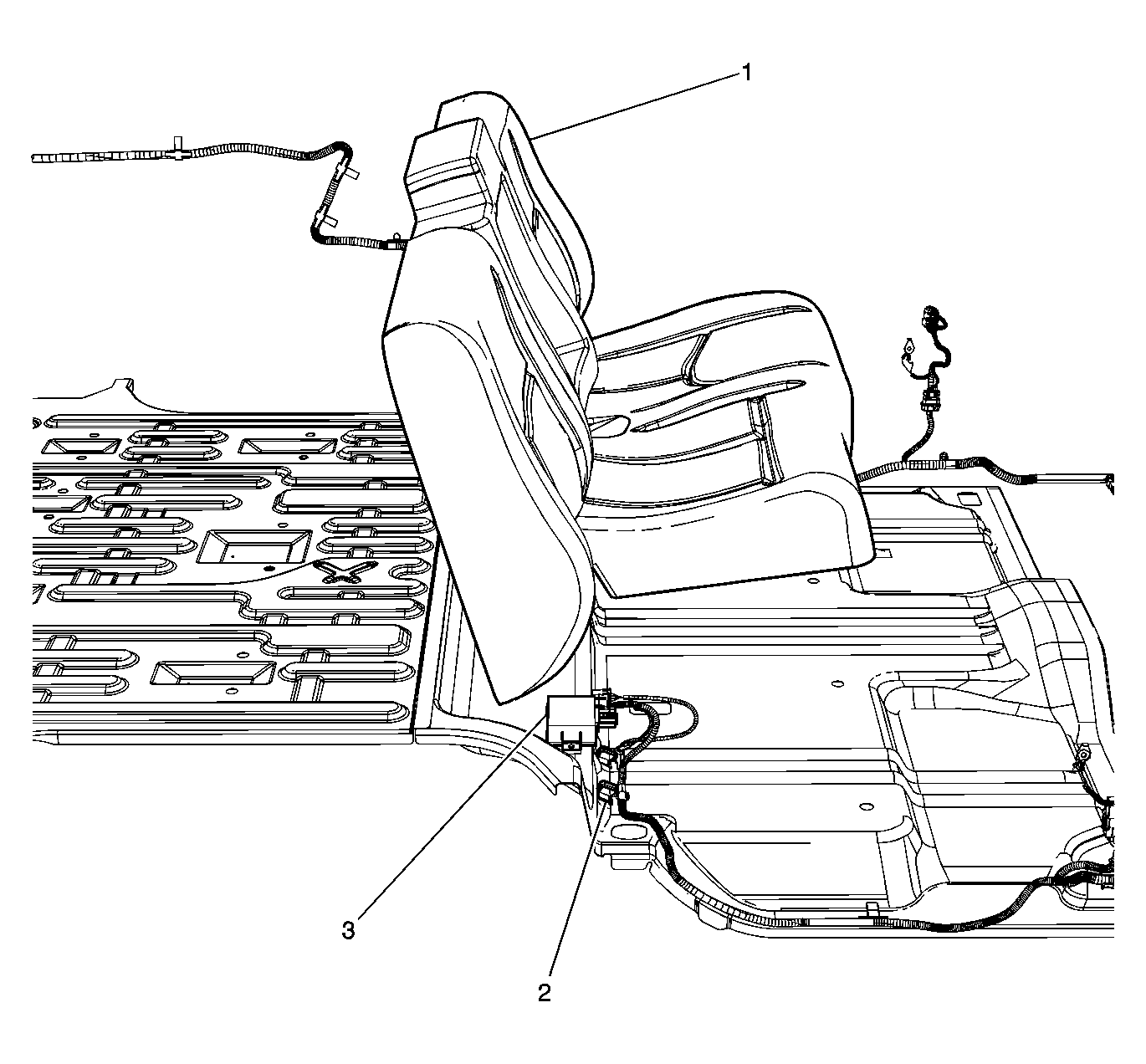

Fig 2: Under RR Seat (706) Component View
GM1522629Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 LR Seat
2 Rear Parking Assist (RPA) Diagnostic Connector
3 Rear Object Sensor Control Module

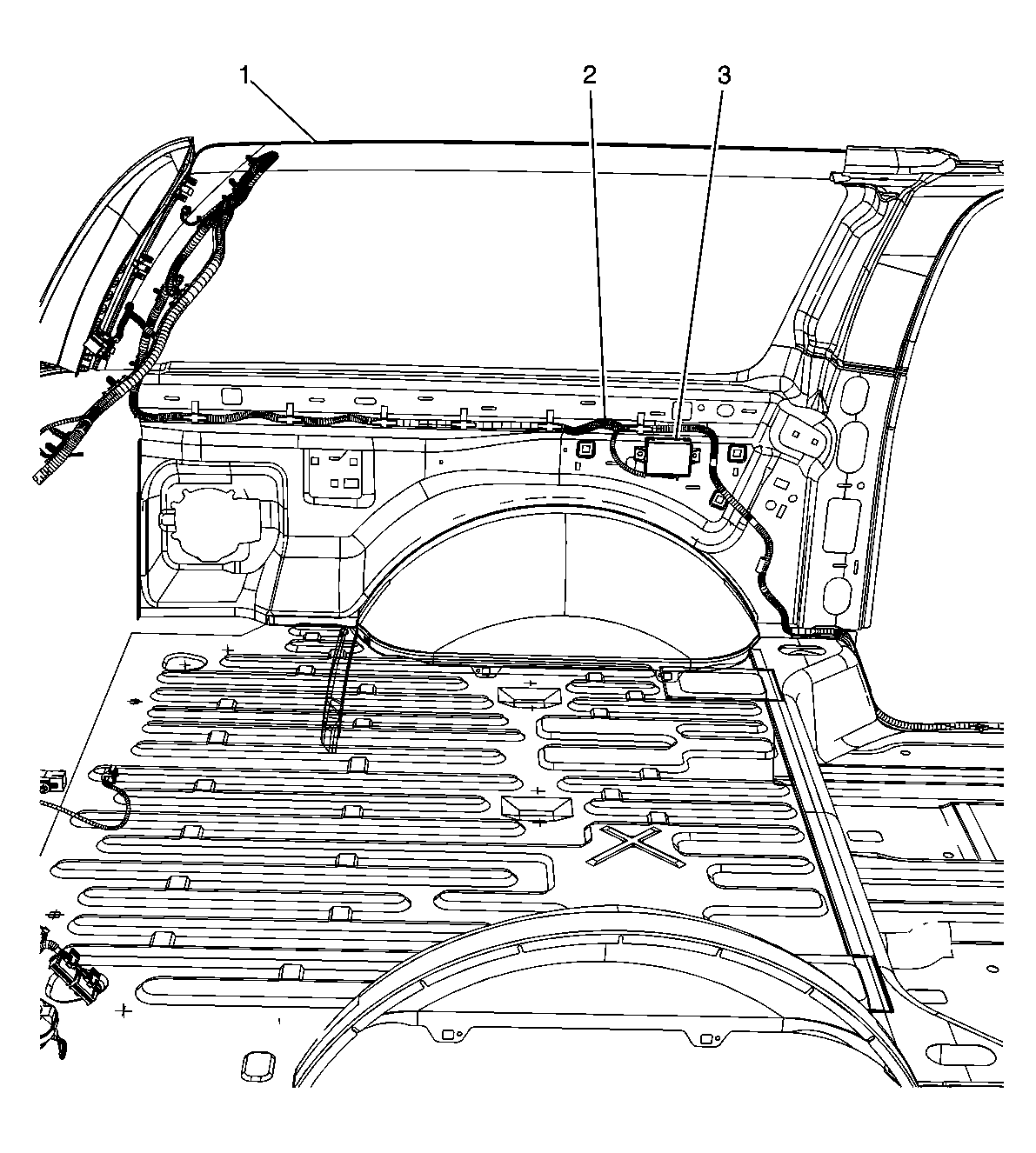

Fig 3: Left Side Of Luggage Compartment (906) Component View
GM1522630Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left Rear Quarter Panel
2 Rear Parking Assist (RPA) Diagnostic Connector
3 Rear Object Sensor Control Module

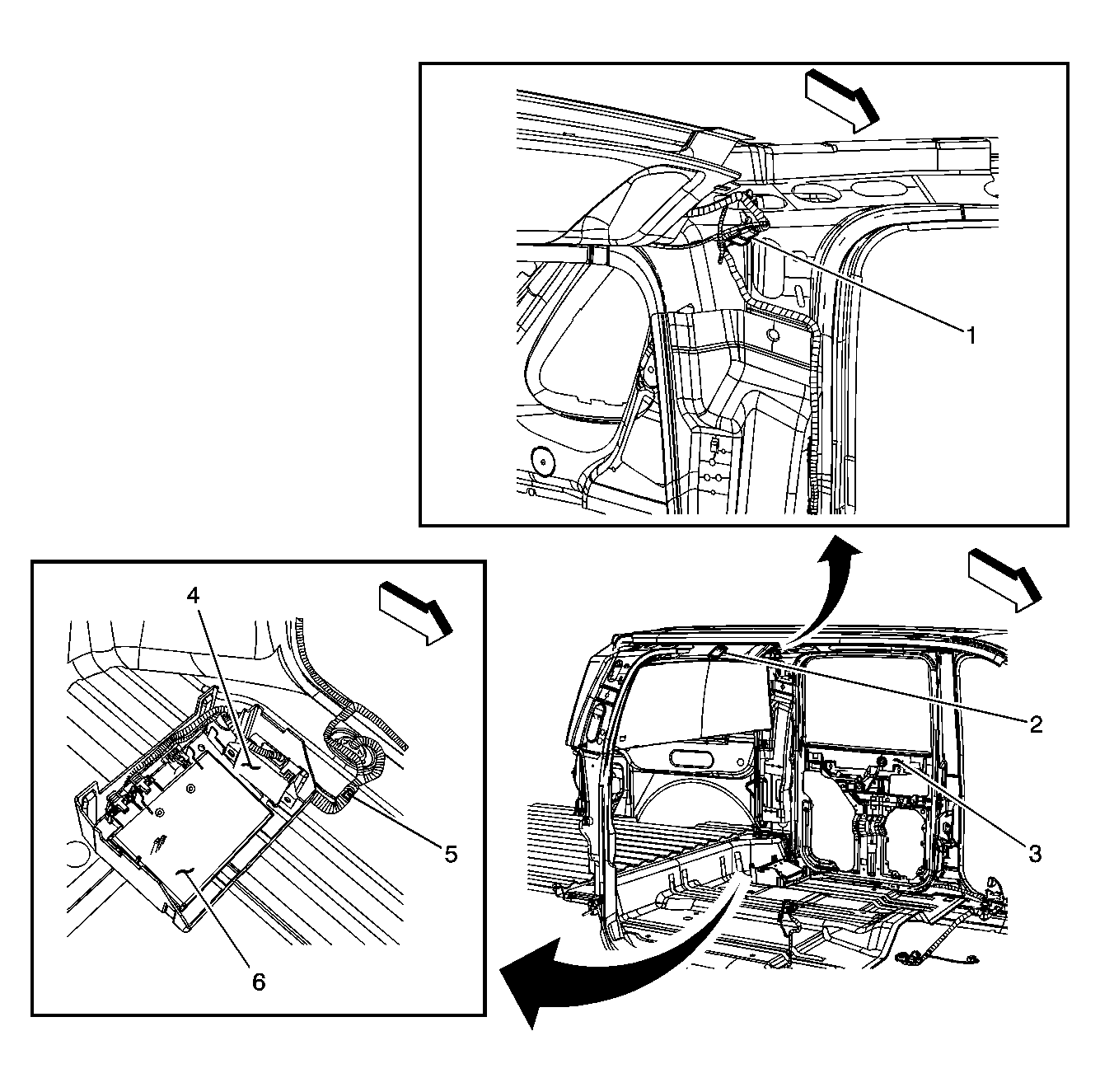

Fig 4: Under Left Rear Passenger Seat (Avalanche and Escalade EXT)
GM1562752Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C415 Body Extension Jumper Harness to Body Harness
2 Rear Parking Assist (RPA) Display
3 Left Rear Inner Door Panel
4 Rear Object Sensor Control Module
5 Rear Parking Assist (RPA) Diagnostic Connector
6 Electronic Suspension Control (ESC) Module

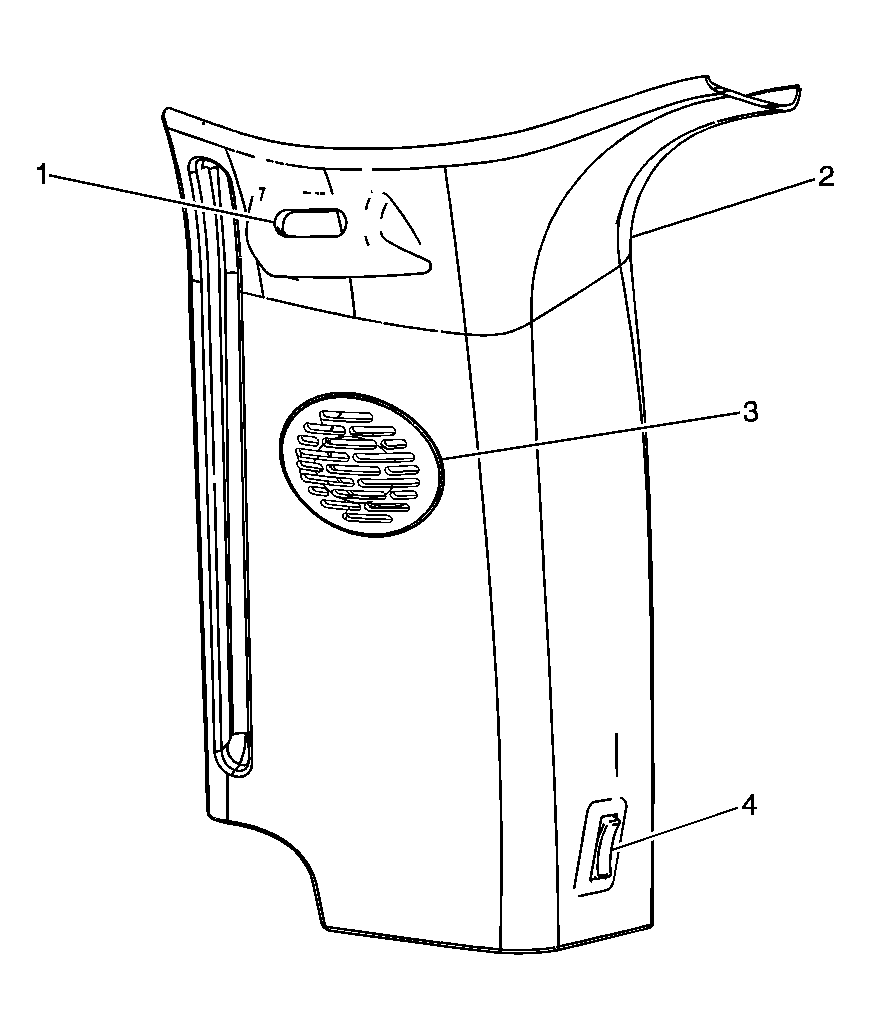

Fig 5: RR Of Cargo Area Component View
GM1402938Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Parking Assist (RPA) Display
2 RR D Pillar Trim Panel
3 Speaker - Right D Pillar
4 Door Lock Switch - Rear Cargo

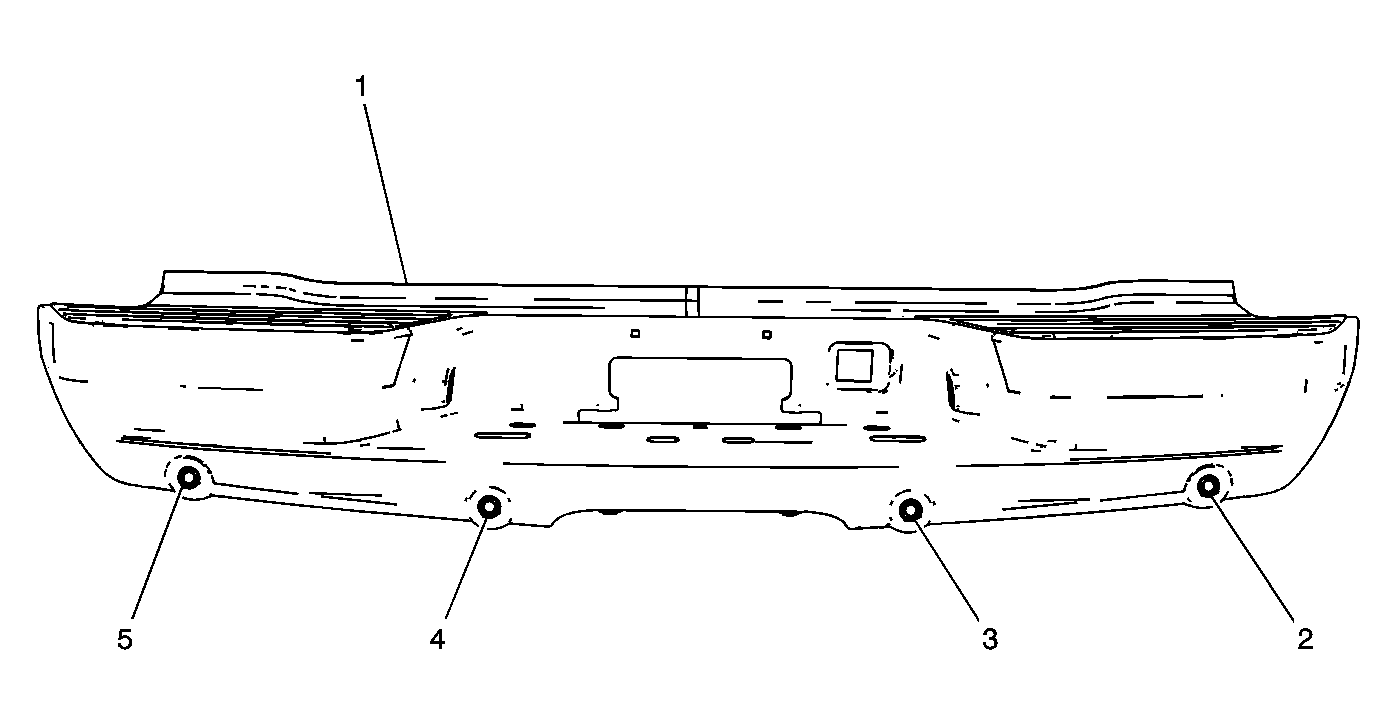

Fig 6: Rear Object Sensors Component View
GM1402937Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Fascia
2 Object Sensor - RR Corner
3 Object Sensor - RR Middle
4 Object Sensor - LR Middle
5 Object Sensor - LR Corner
