Installation Procedure

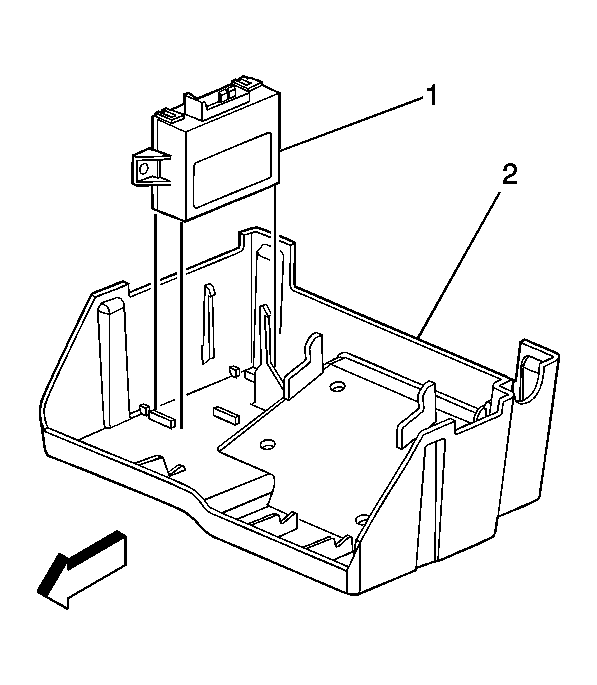

Fig 1: Removing Object Alarm Module From Container (Cadillac EXT)

GM1363966

Courtesy of GENERAL MOTORS CORP.

Install the module (1) to the container (2).

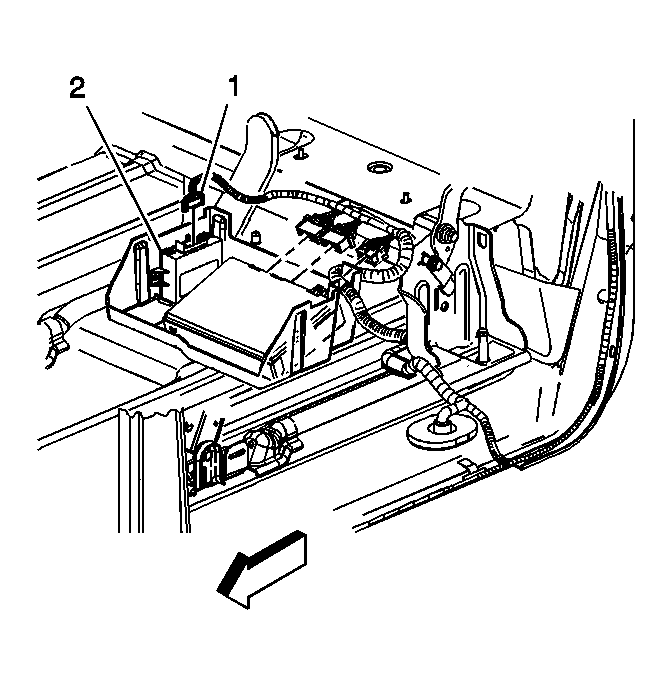

Fig 2: Disconnecting Electrical Connector From Rear Object Alarm Module (Cadillac EXT)

GM814571

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the module (2).

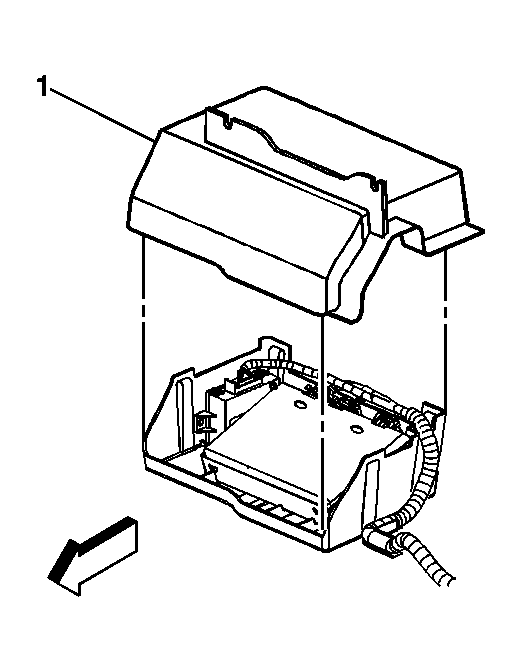

Fig 3: Removing Object Alarm Module Cover (Cadillac EXT)

GM814570

Courtesy of GENERAL MOTORS CORP.

Install the container cover (1) and lock in place.
Slid the container under the rear seat.
Install the container retainers.
Set the rear seat to its original position.
