Installation Procedure

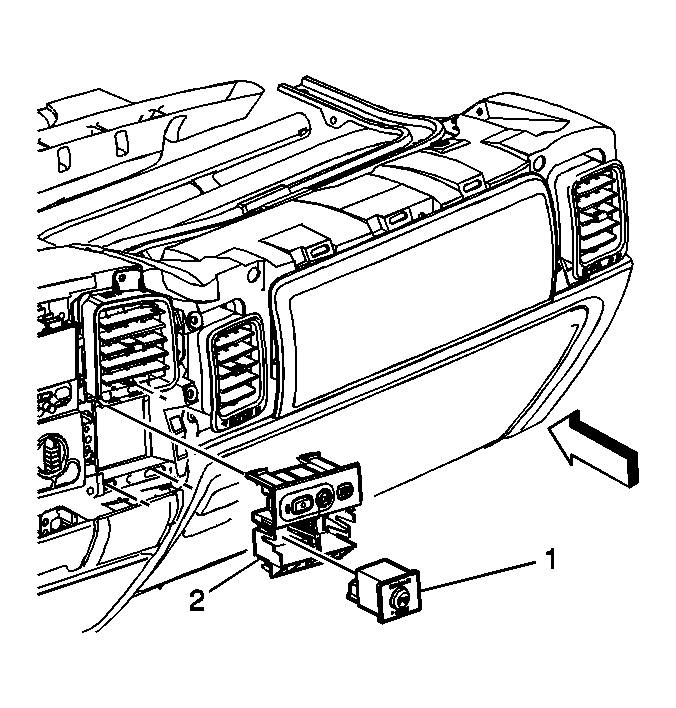

    Fig 1: Removing Rear Object Alarm Module Switch
    GM741402Courtesy of GENERAL MOTORS CORP.
  1. Install the rear object alarm switch into the housing (2).
  2. Connect the electrical connector to the switch (1).
  3. Install the switch housing into the dash.
  4. Install the dash trim bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
