Object Detection Schematics

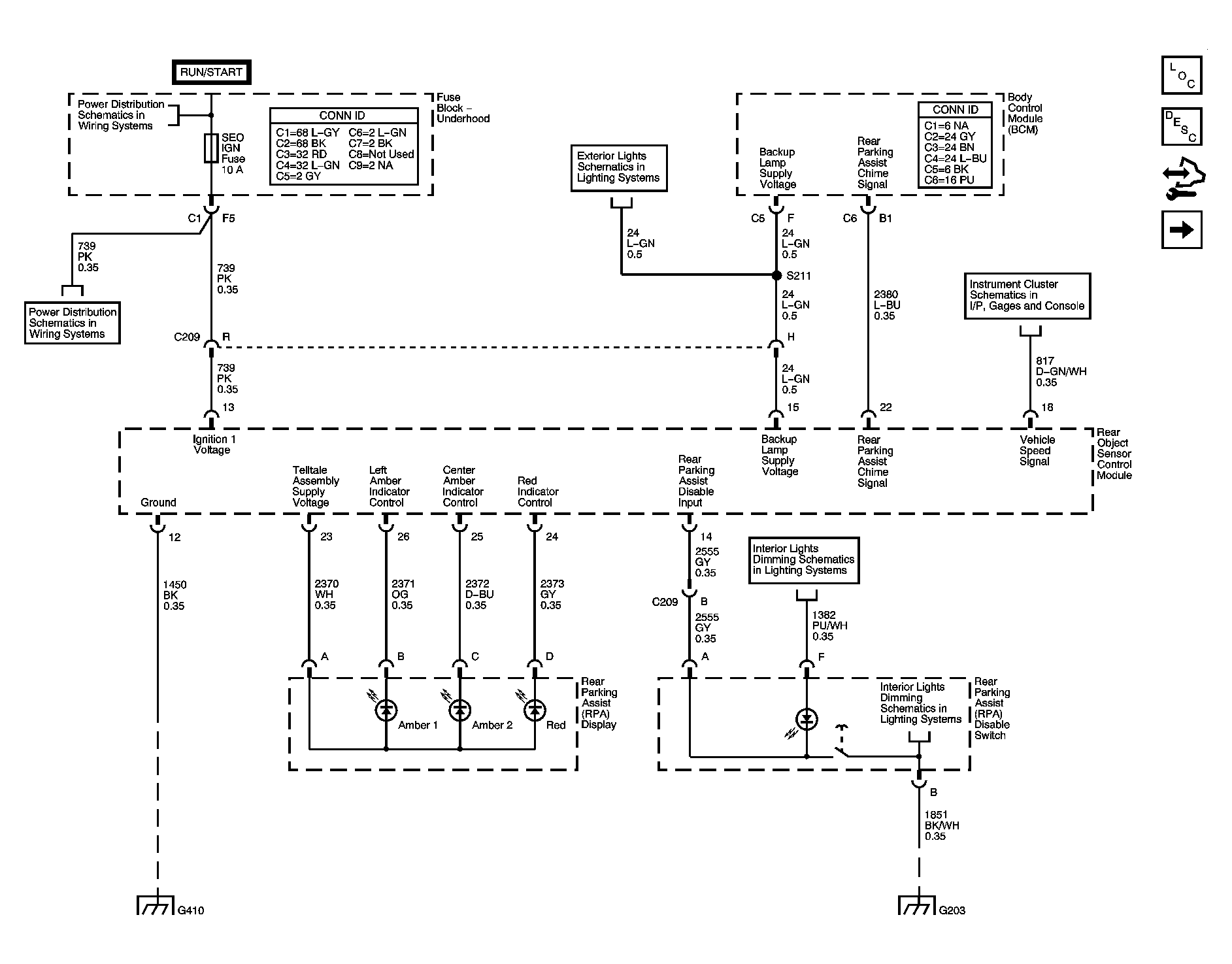

Fig 1: Rear Object Sensor Control Module, RPA Display, and RPA Disable Switch

Courtesy of GENERAL MOTORS CORP.

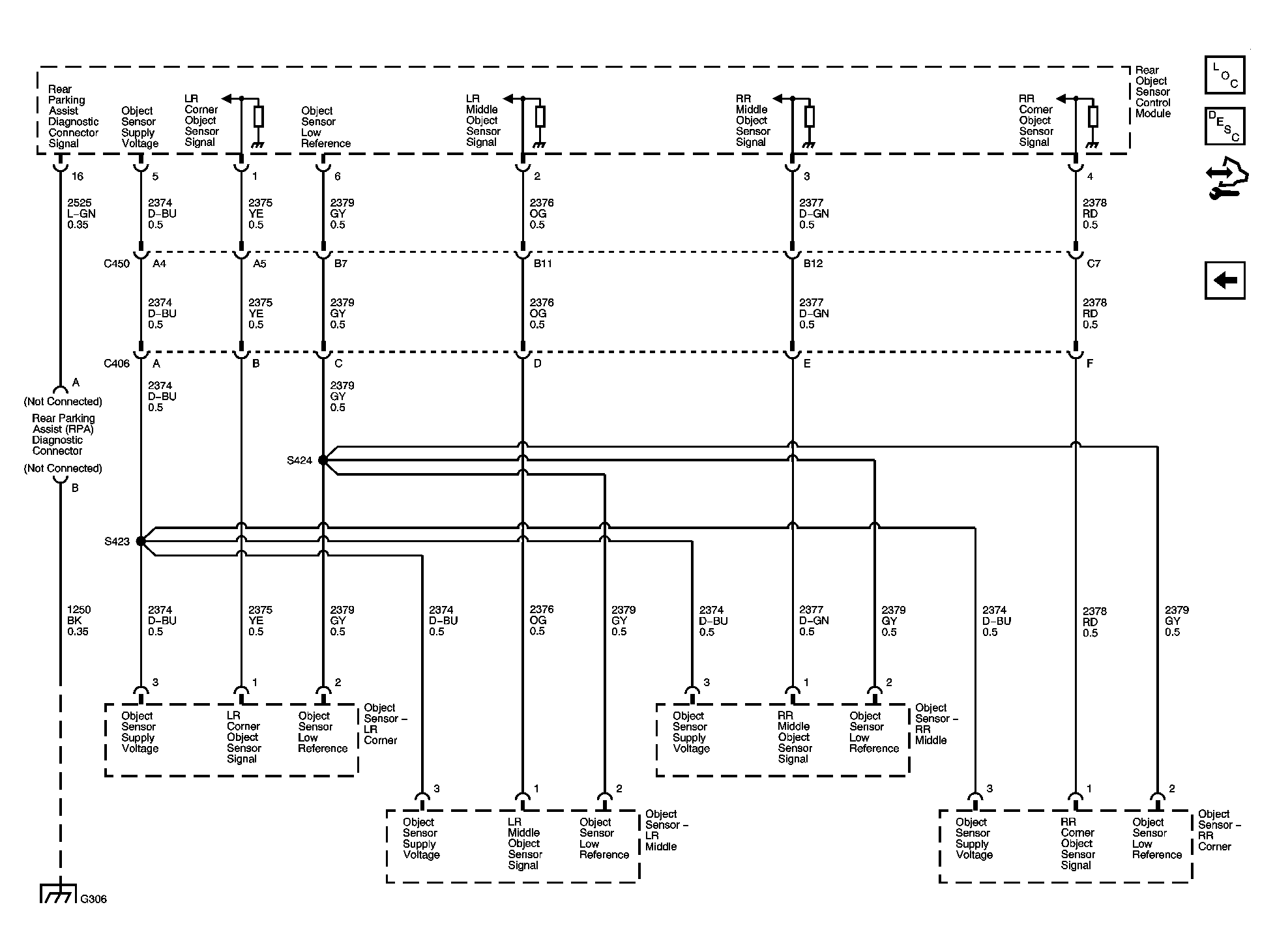

Fig 2: Rear Object Sensor Control Module and Object Sensors

Courtesy of GENERAL MOTORS CORP.

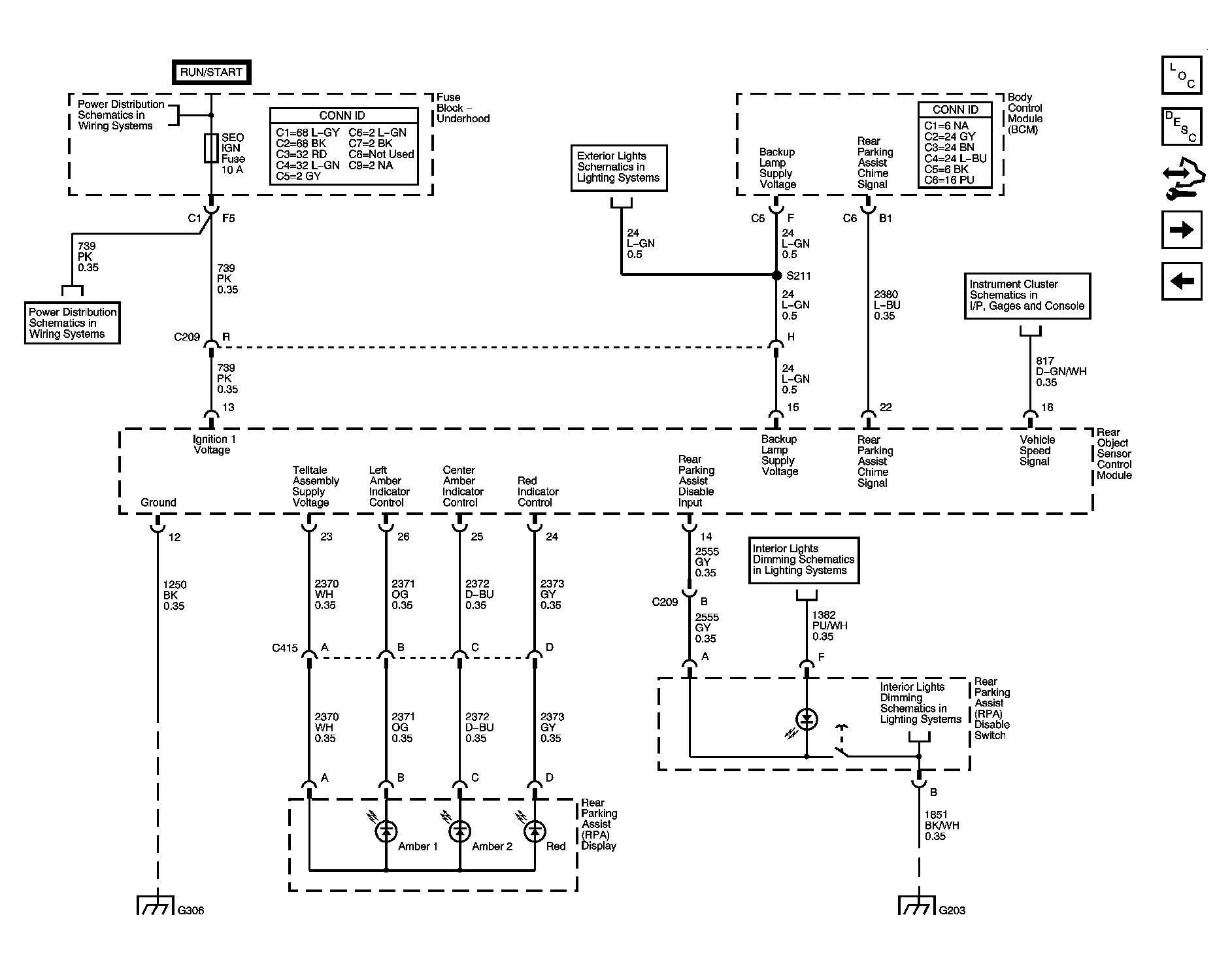

Fig 3: Rear Object Sensor Control Module, RPA Display and Disable Switch - Escalade EXT

Courtesy of GENERAL MOTORS CORP.

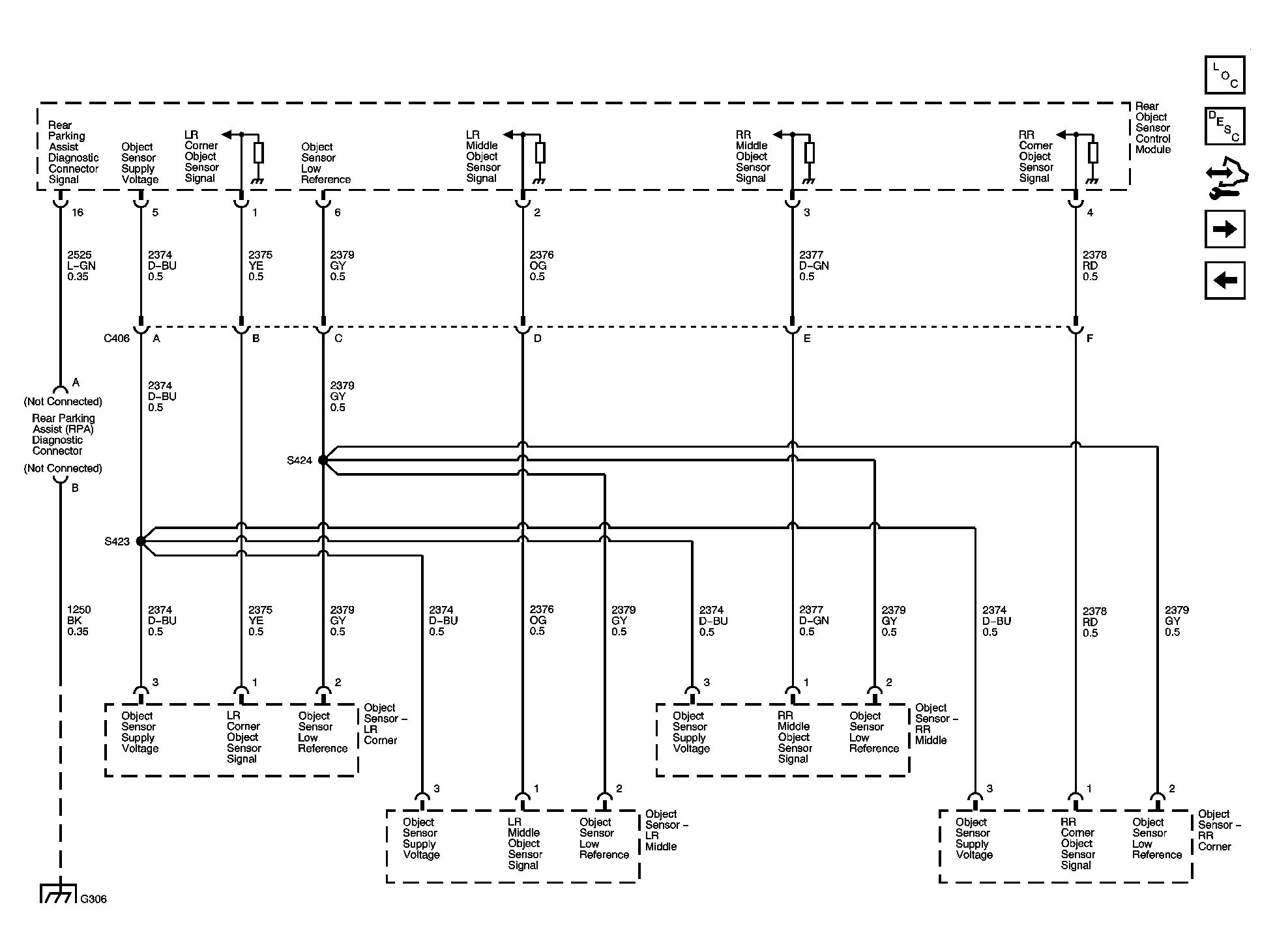

Fig 4: Rear Object Sensor Control Module and Object Sensors - Escalade EXT

Courtesy of GENERAL MOTORS CORP.
