Body Control System Wiring Schematics

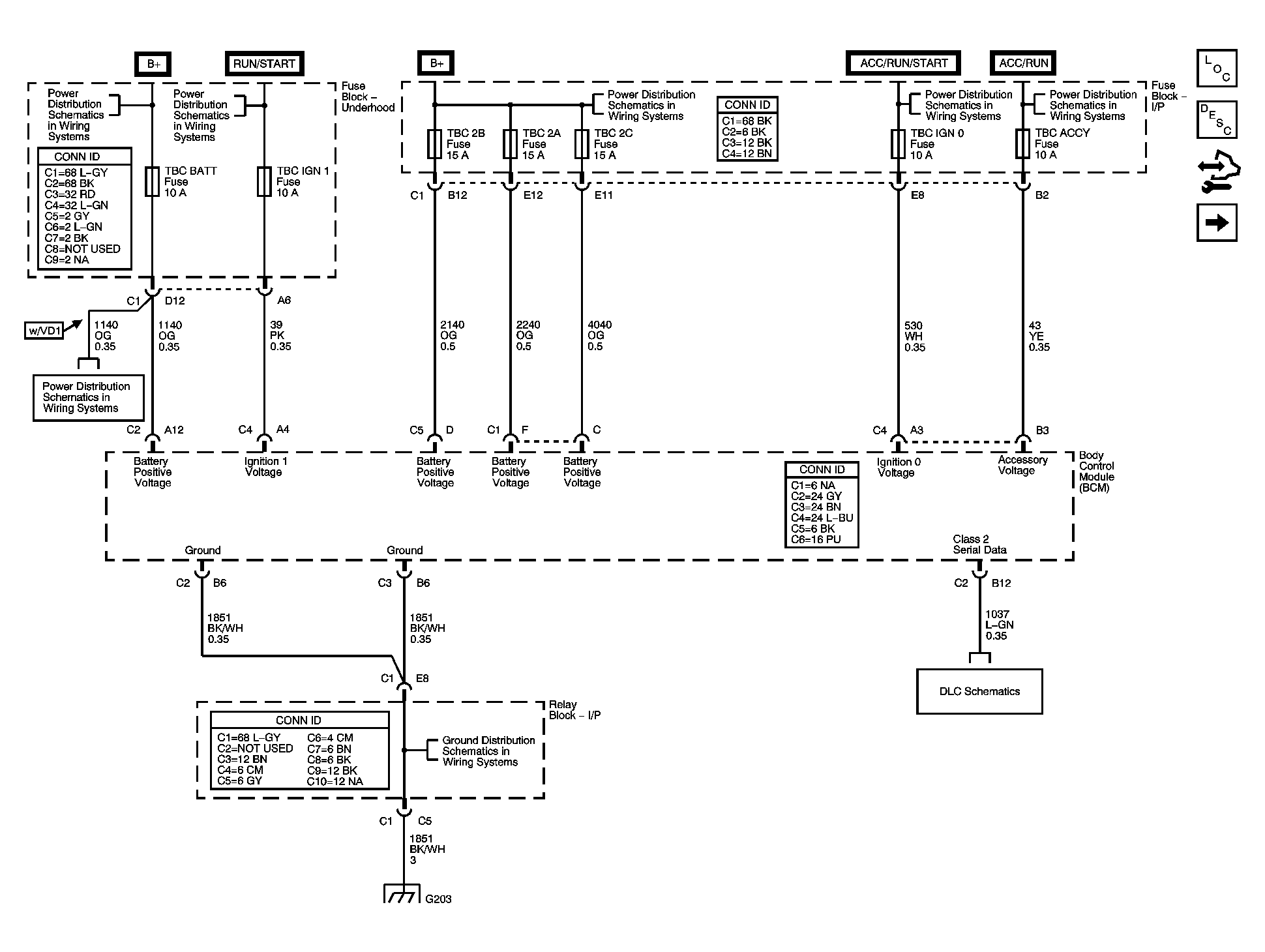

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

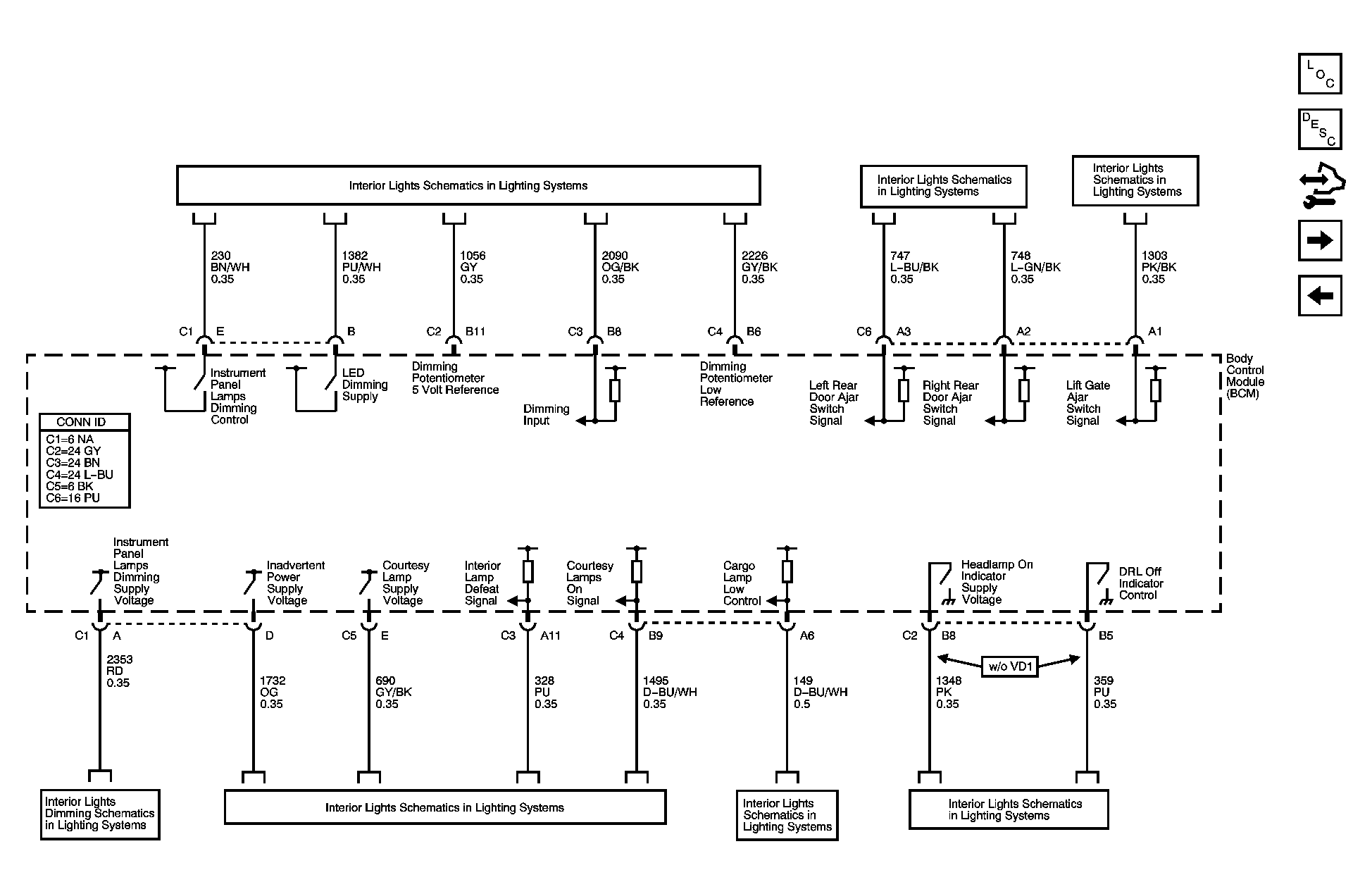

Fig 2: Interior Lights System References

Courtesy of GENERAL MOTORS CORP.

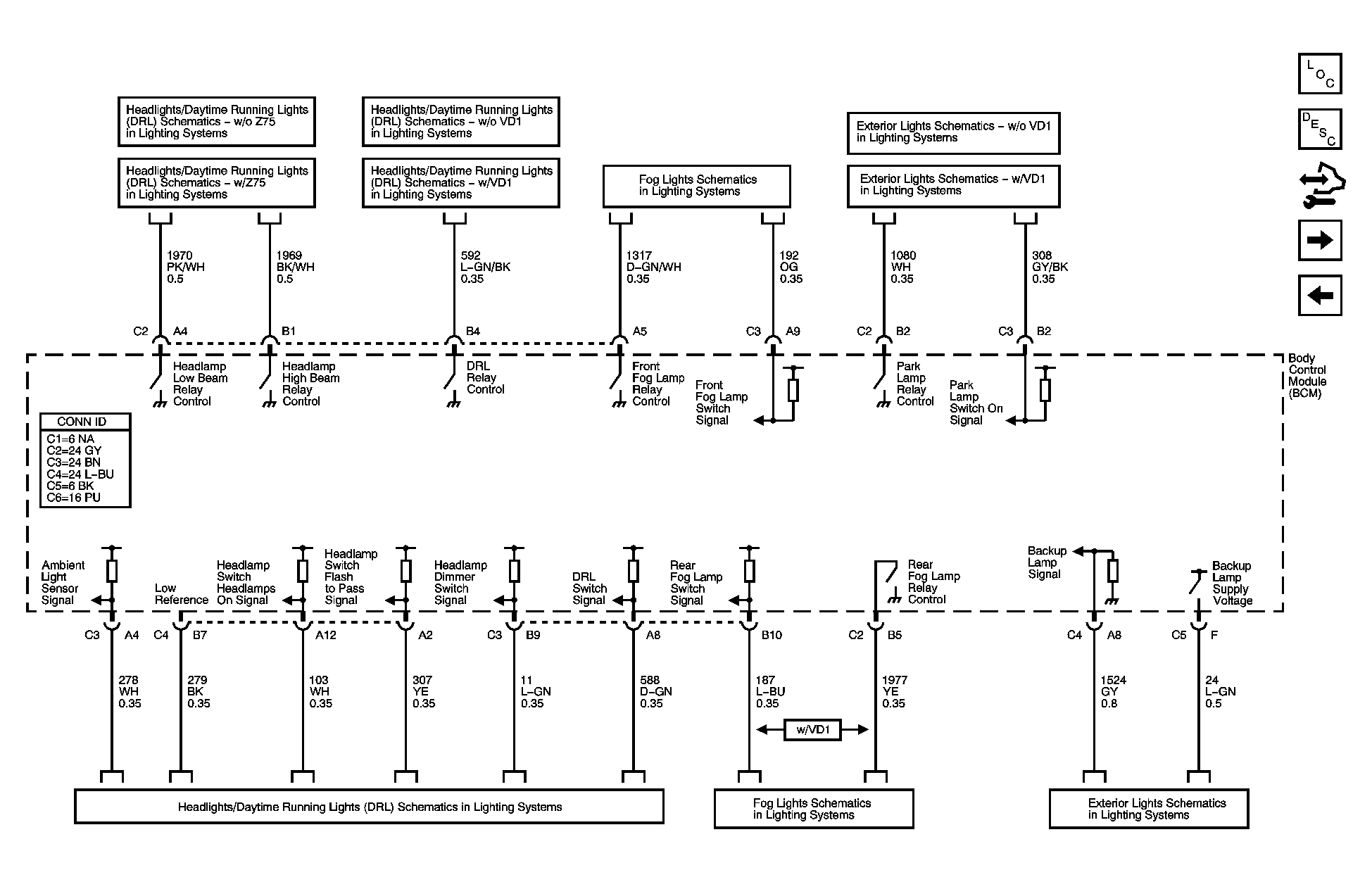

Fig 3: Exterior Lights System References

Courtesy of GENERAL MOTORS CORP.

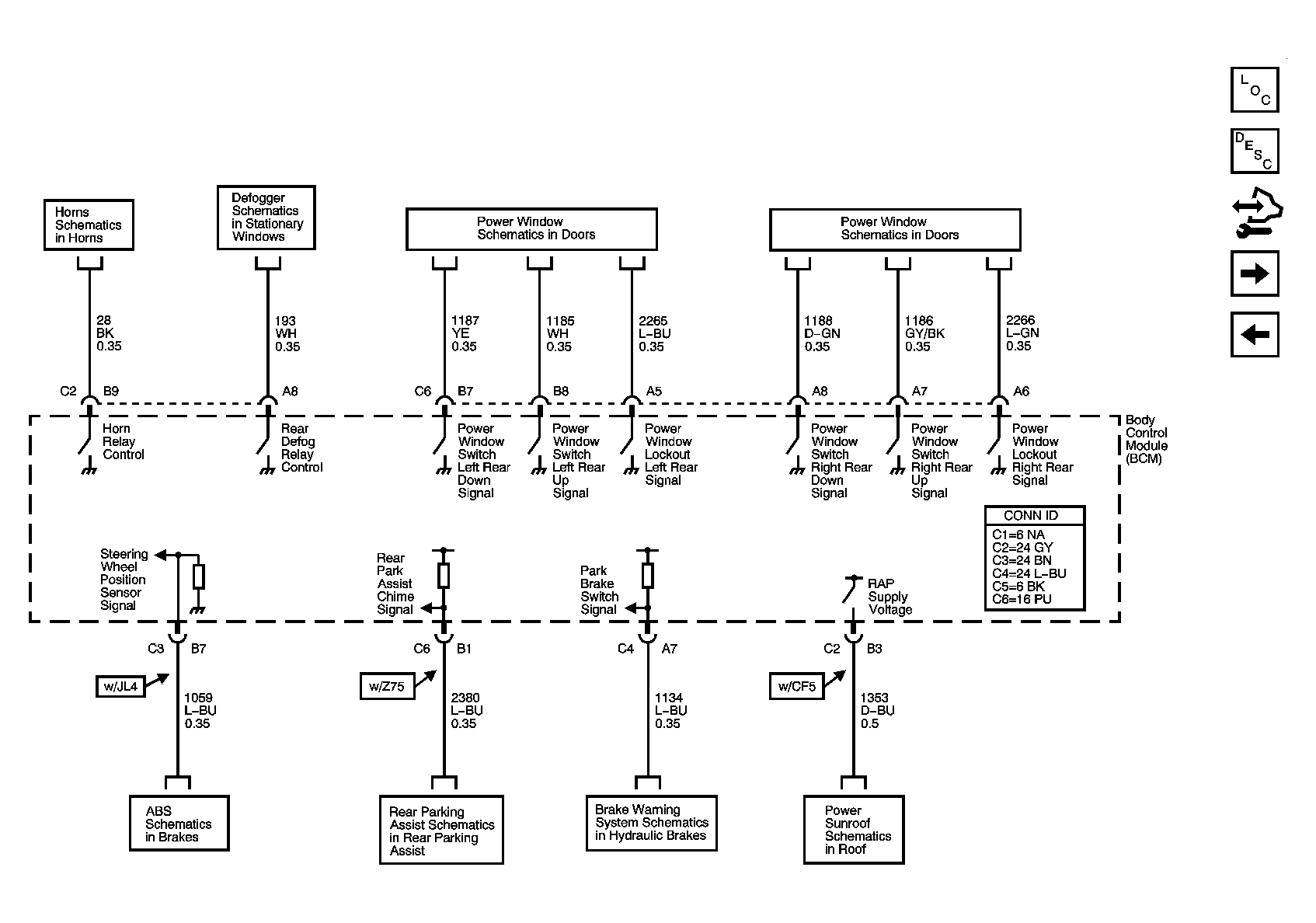

Fig 4: Controlled/Monitored Subsystem References (1 of 2)

Courtesy of GENERAL MOTORS CORP.

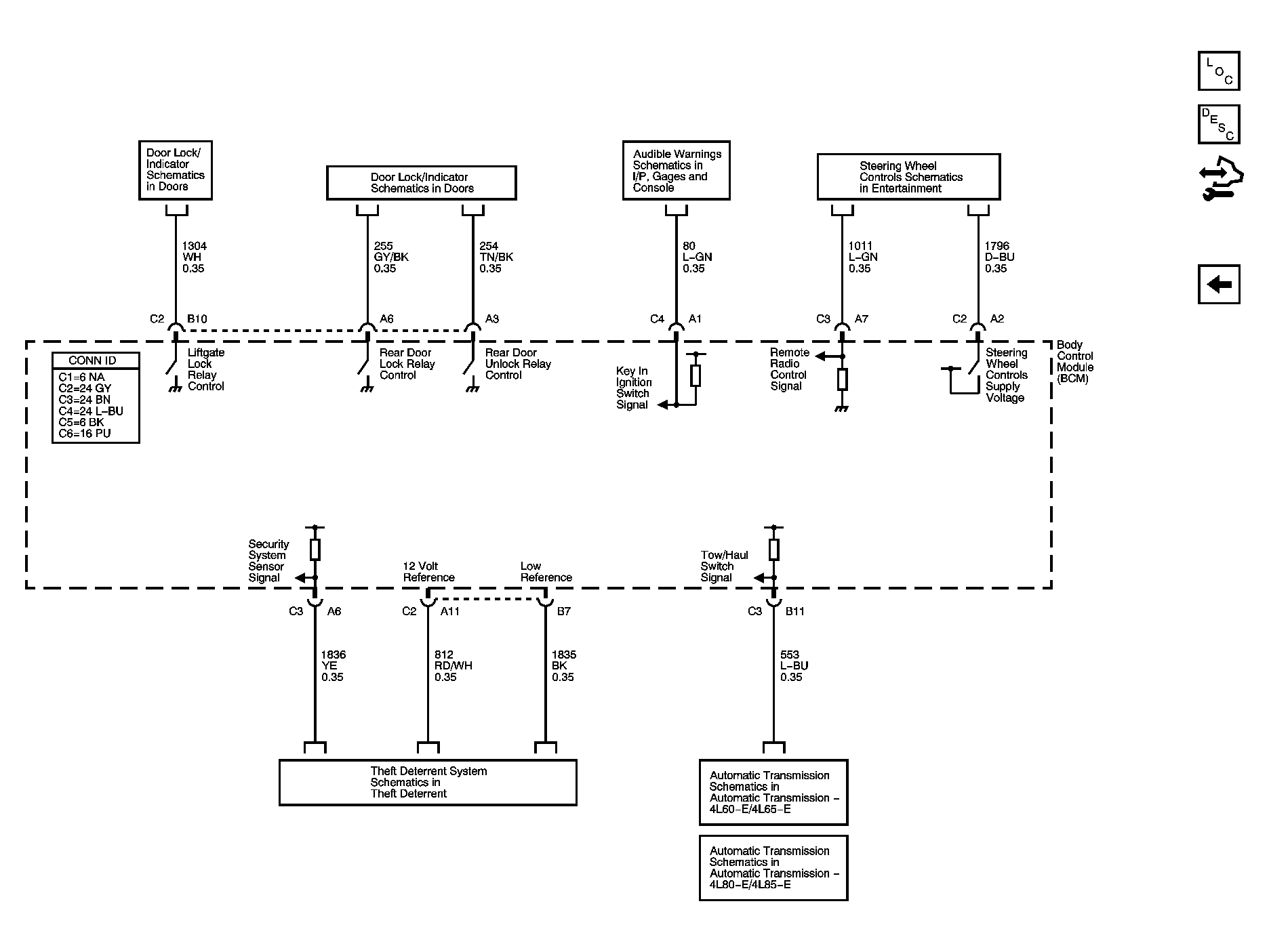

Fig 5: Controlled/Monitored Subsystem References (2 of 2)

Courtesy of GENERAL MOTORS CORP.
