Installation Procedure

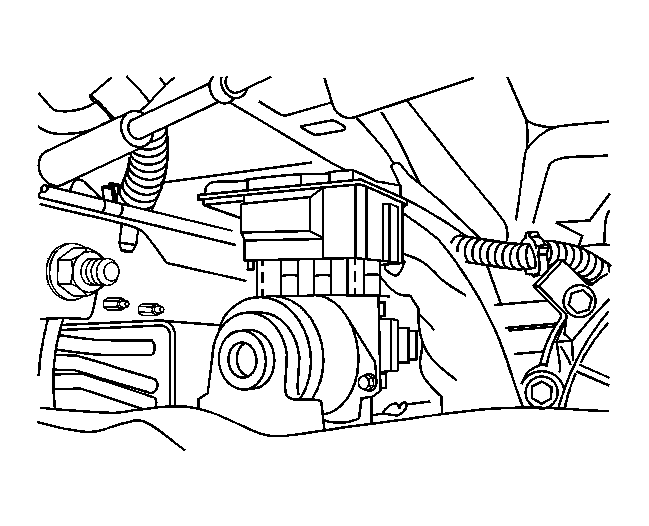

    Fig 1: Removing/Installing EBCM (w/ JL4)
    GM925878Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Do not reuse the old mounting screws. Always install new mounting screws with the new EBCM.
    • Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.
  1. Install the EBCM to the BPMV.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.

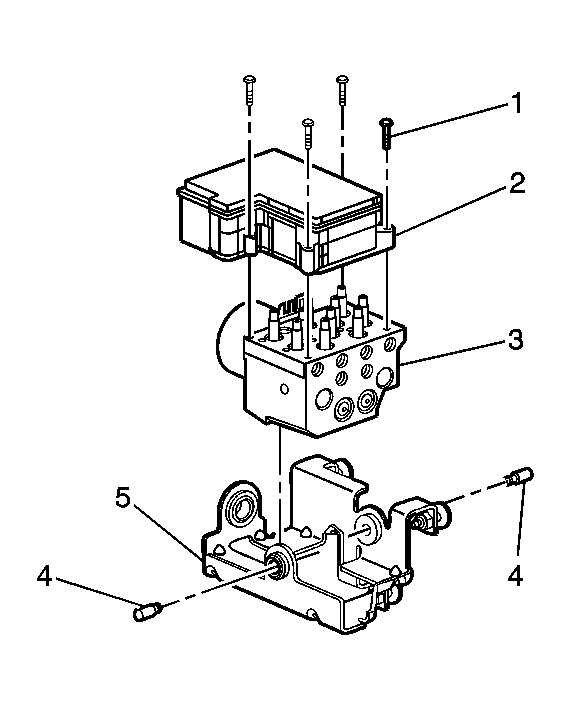

    Fig 2: Exploded View Of EBCM & BPMV Components (w/ JL4)
    GM925574Courtesy of GENERAL MOTORS CORP.
  2. Install the new EBCM screws (1).

    Tighten:  Tighten the screws to 5 N.m (39 lb in) in an X-pattern.

  3. Lower the vehicle.
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  5. If a new EBCM was installed, the EBCM must be programmed. Refer to Service Programming System (SPS) .
  6. Turn the ignition to the ON position. DO NOT start the engine.
  7. Perform the Diagnostic System Check - Vehicle .
