Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Body Relay Block | Under left side of dash, near kick panel. See Figure. |
| Fuse Block - I/P | Behind lower left side of dash. |
| Junction Block - I/P | At right side of dash, behind access panel. |
| Rear Lamps Junction Block | On rear inner side of right frame rail. |

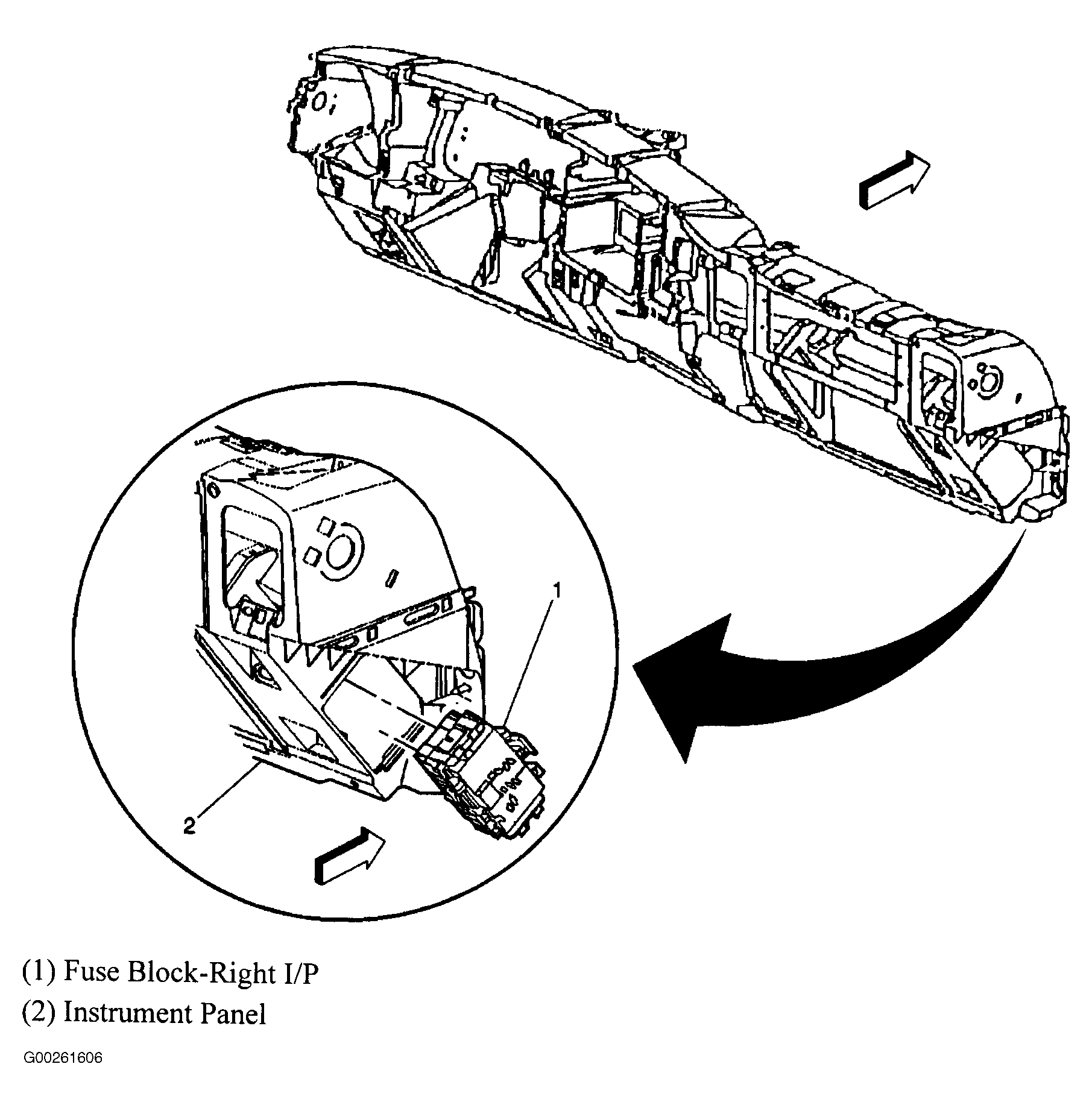

| Right I/P Fuse Block | On lower right side of dash. See Figure. |

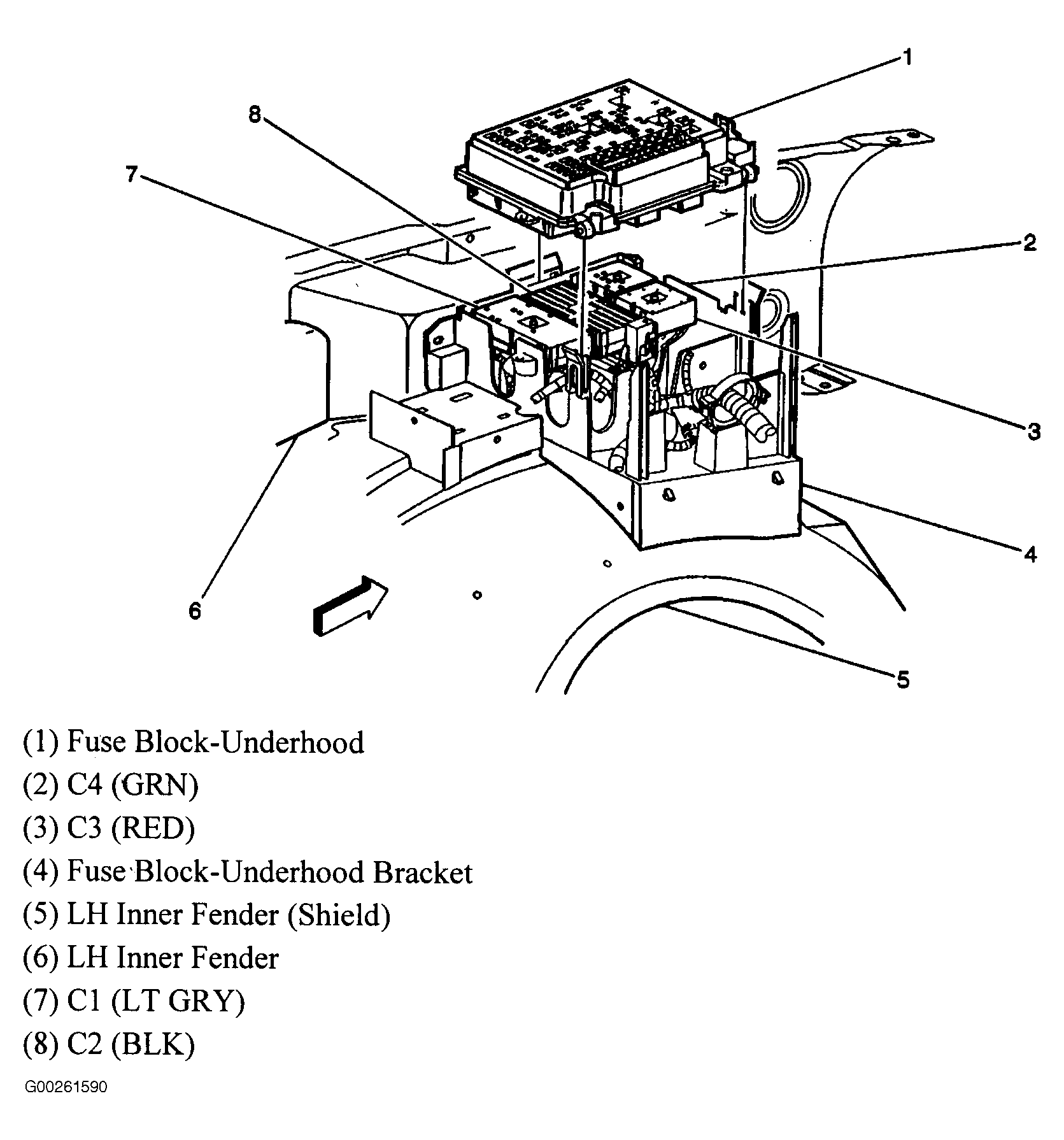

| Underhood Fuse Block | At left side of engine compartment, near battery. See Figure. |
