HVAC Control Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

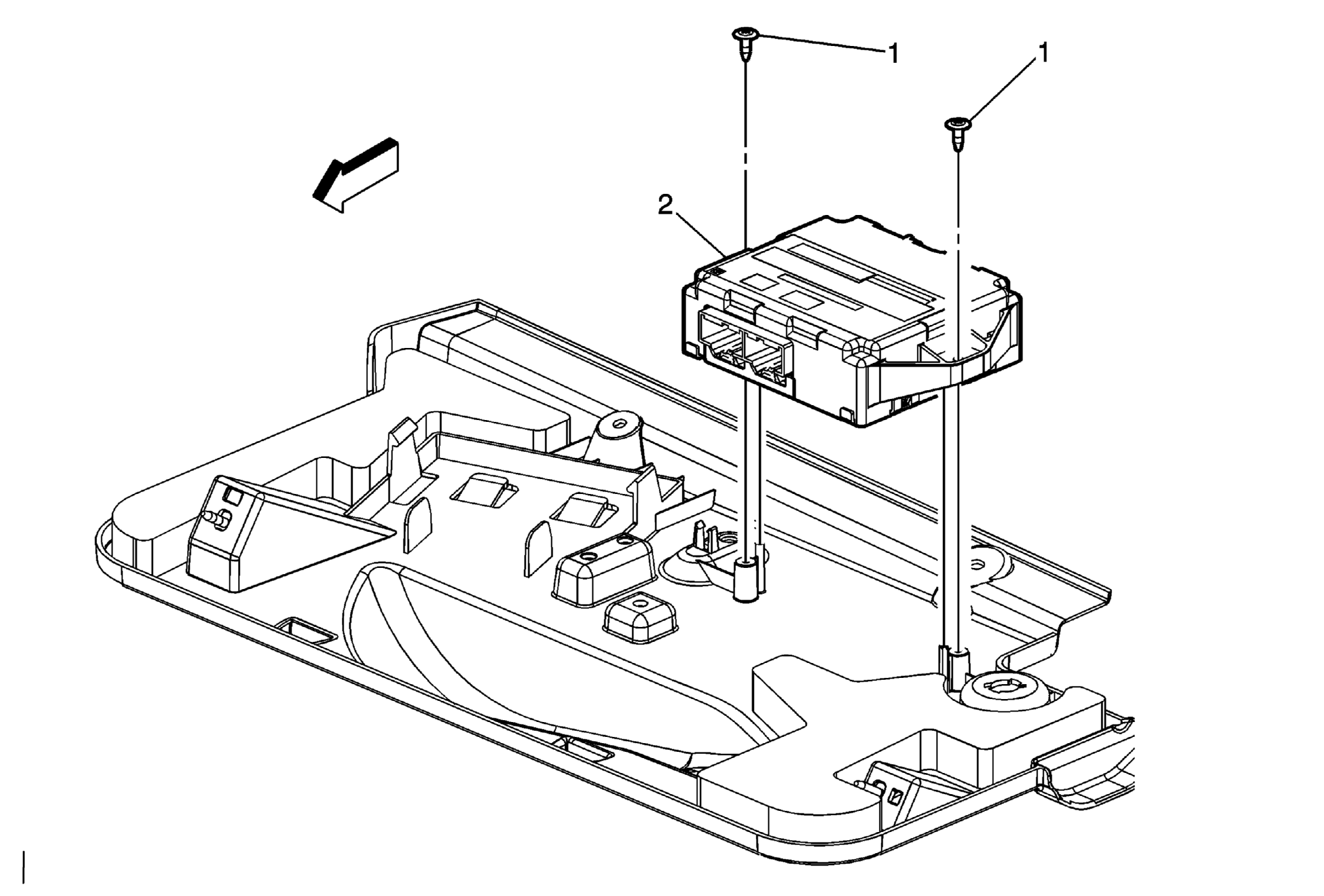

Fig 1: HVAC Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right sound insulator. Refer to Instrument Panel Insulator Replacement - Right Side . Remove the electrical connectors from the HVAC control module.
1	HVAC Control Module Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	HVAC Control Module

Callout

Component Name

Preliminary Procedure

Remove the right sound insulator. Refer to Instrument Panel Insulator Replacement - Right Side .
Remove the electrical connectors from the HVAC control module.

HVAC Control Module Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

HVAC Control Module
