Remote Function Schematics

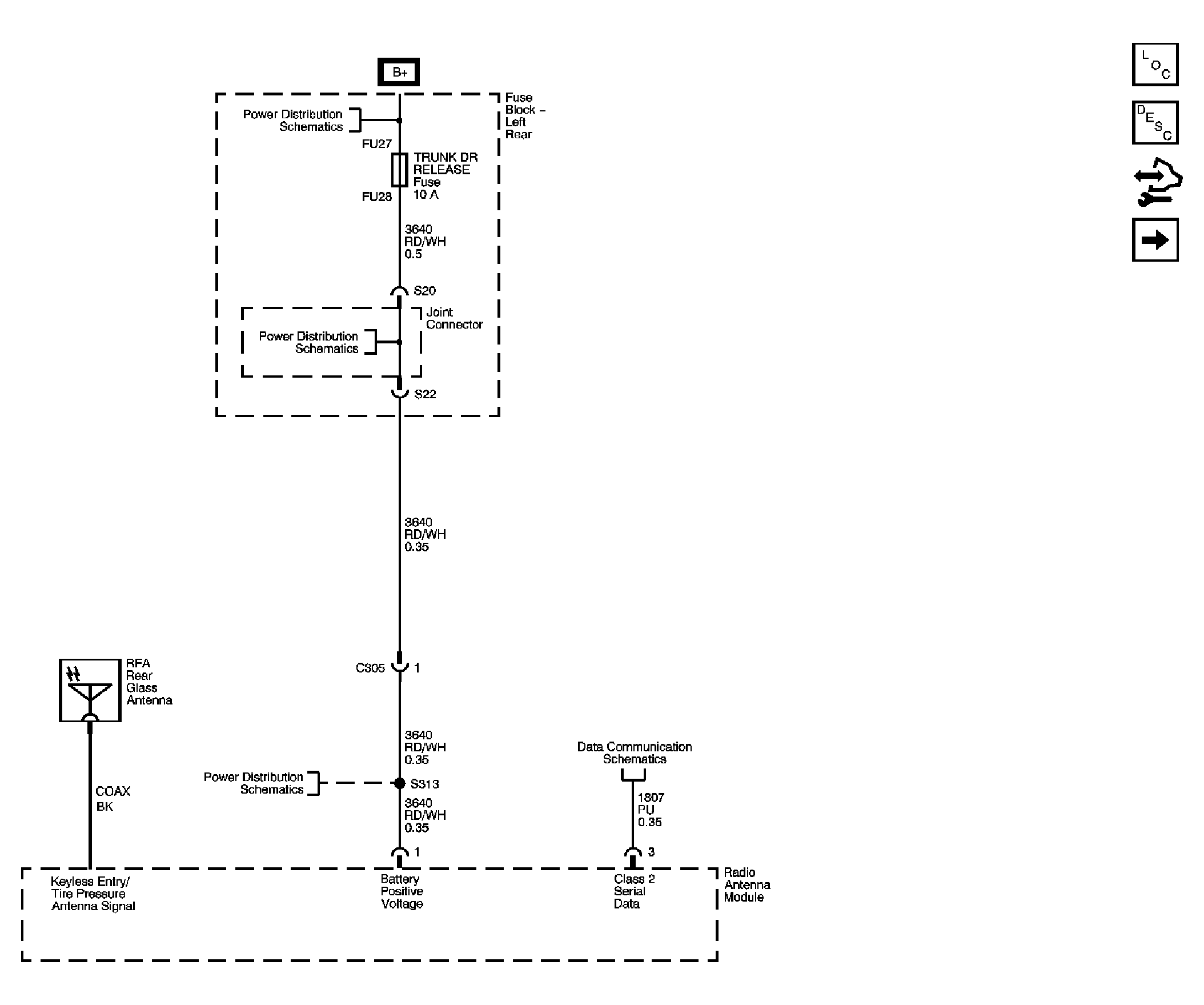

Fig 1: Remote Functions Schematics
GM1787453Courtesy of GENERAL MOTORS CORP.

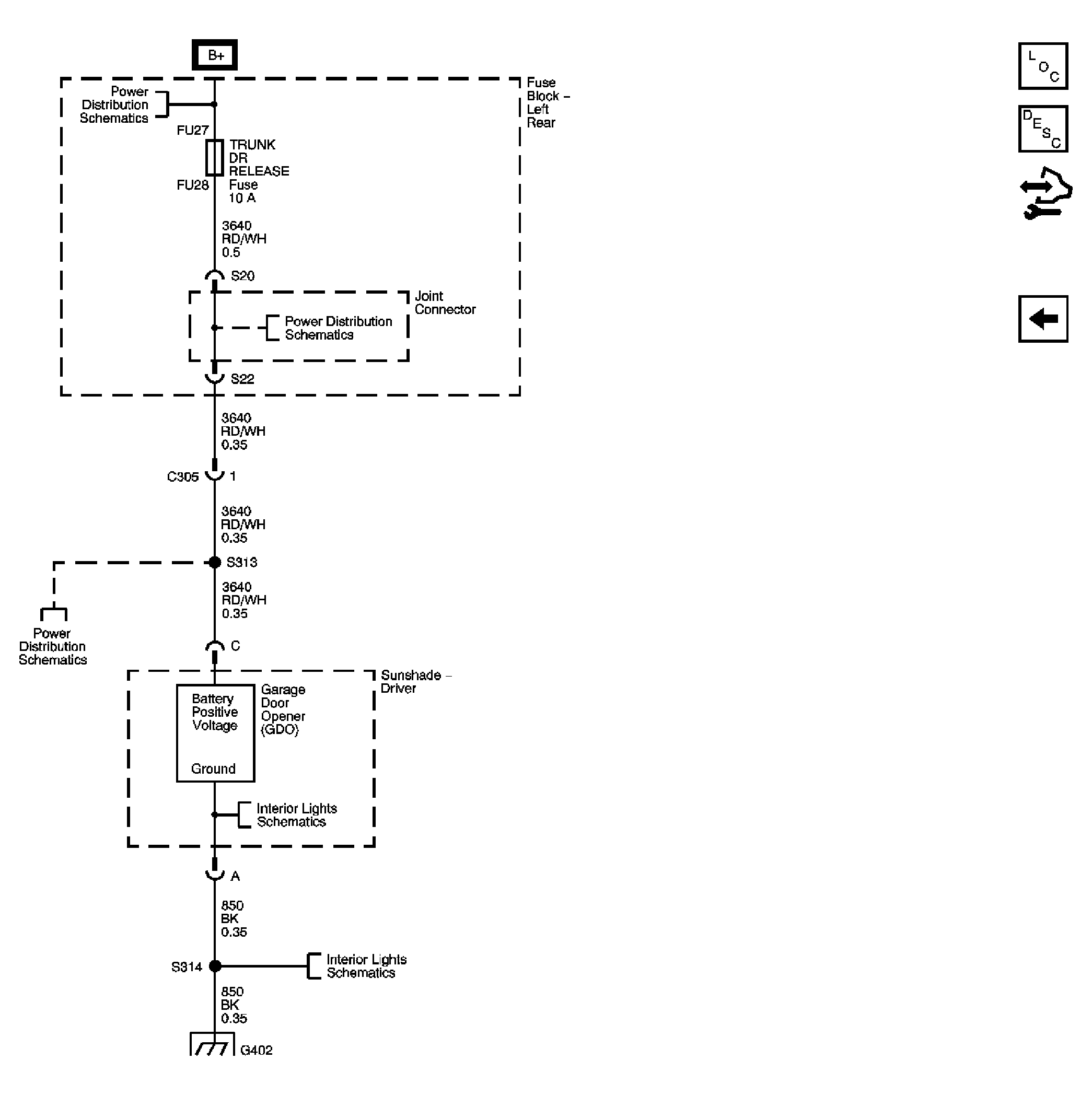

Fig 2: Garage Door Opener Schematics
GM1787456Courtesy of GENERAL MOTORS CORP.
