Remote Function Component Views



Remote Function Component Views

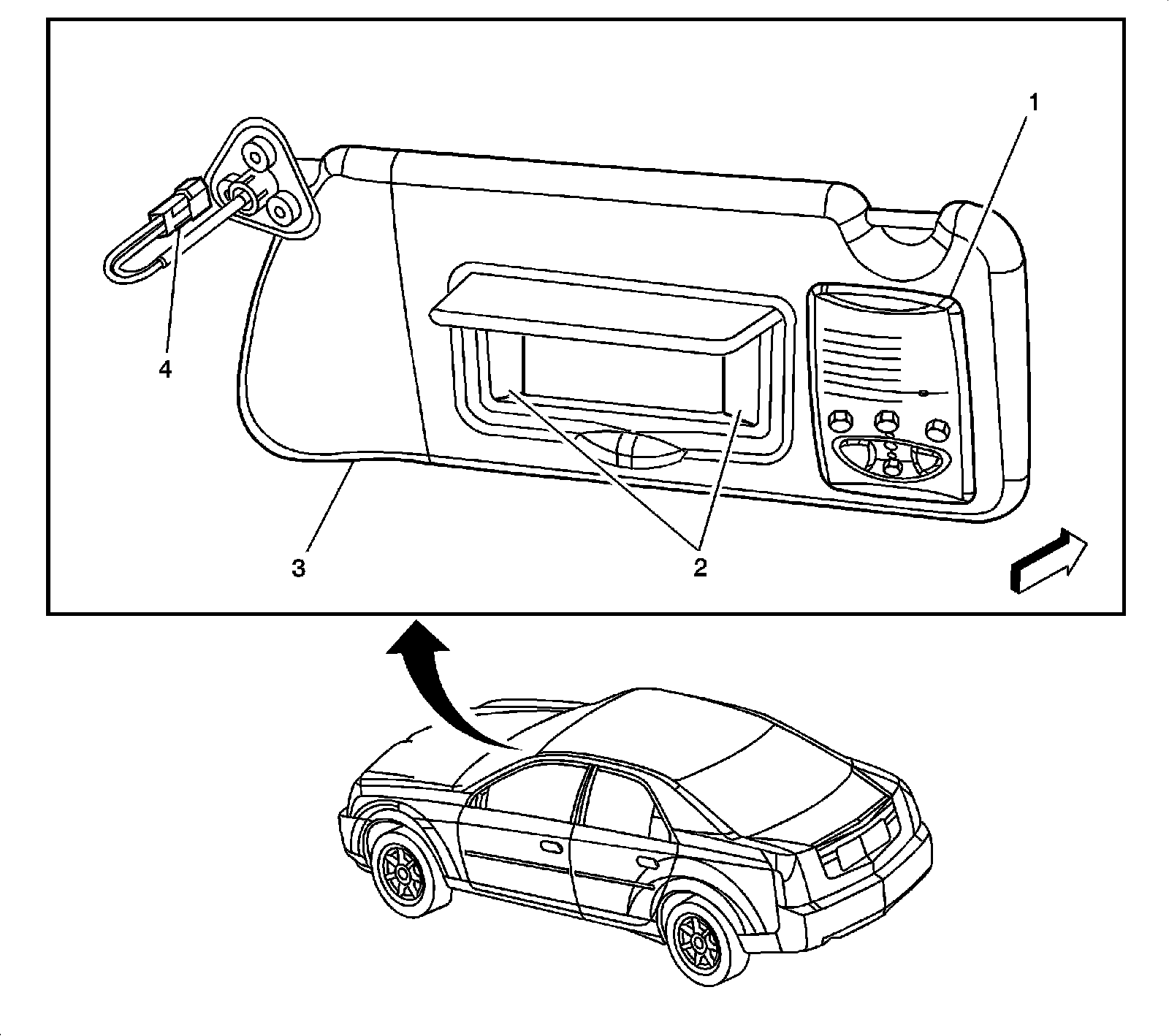

Garage Door Opener Subsystem Components




1 - Garage Door Opener (GDO)
2 - Vanity Lamps - Driver
3 - Sunshade - Driver (LHD shown, RHD similar)
4 - Sunshade - Driver Connector
