Memory Positioning Module: Service and Repair

Memory Seat Control Module Replacement

Removal Procedure

Caution: Refer to SIR Caution.




1. Remove the front seat cushion.
2. Disconnect the electrical connectors from the heated seat module.

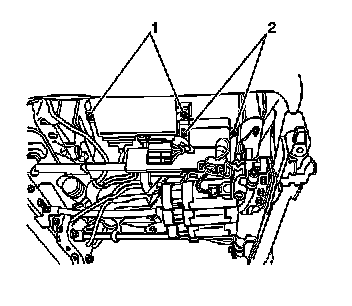

3. Remove the screws (1) retaining the memory seat module to the seat frame.

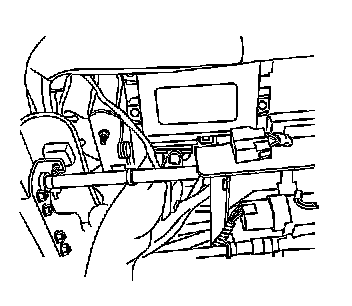

4. Remove the memory seat module.

Installation Procedure

1. Install the memory seat module.





Notice: Refer to Fastener Notice.

2. Install the memory seat module screws (1).

Tighten the screws 2 N.m (18 lb in).




3. Connect the electrical connections to the module.
4. Install the front seat cushion. Refer to Front Seat Cushion Replacement.
5. Calibrate the seat. Refer to Control Module References for programming and setup information. Programming and Relearning
