Cruise Control: Locations

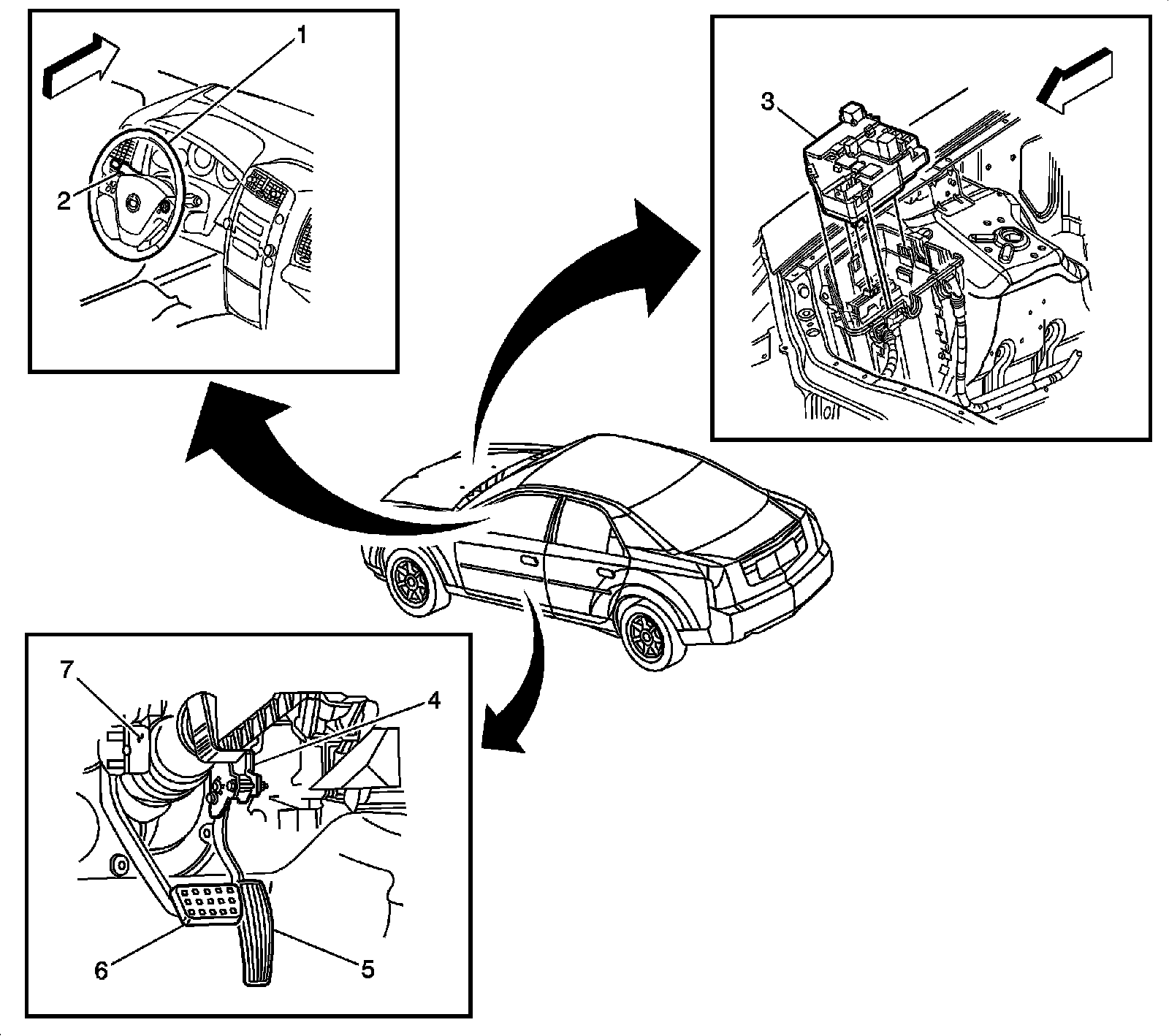

Cruise Control Component Views

Cruise Control Components




1 - Steering Wheel (LHD shown, RHD similar)
2 - Cruise Control Switch (Part of Turn Signal/Multifunction Switch)
3 - Fuse Block - Underhood
4 - Accelerator Pedal Position (APP) Sensor
5 - Accelerator Pedal
6 - Brake Pedal
7 - Brake Pedal Position (BPP) Sensor
