Home >> Cadillac >> 2007 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Acceleration/Deceleration Sensor
April 5, 2026: LEMON Manuals is launched! Read the announcement.

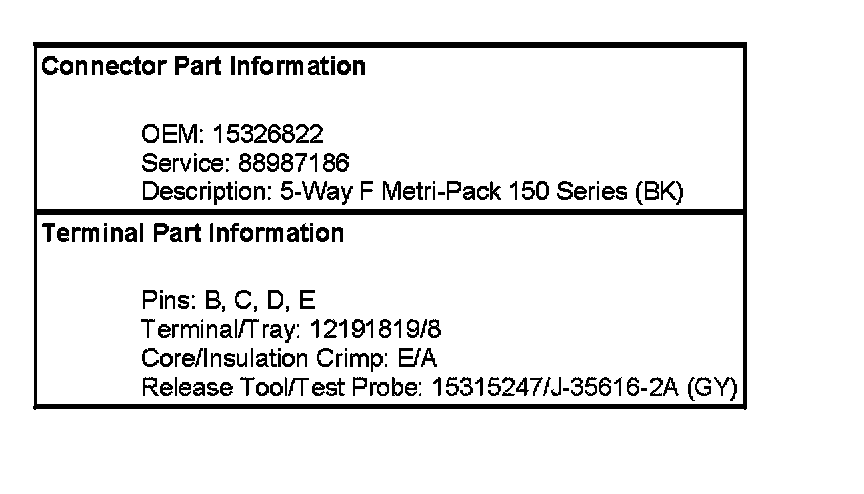

Acceleration/Deceleration Sensor

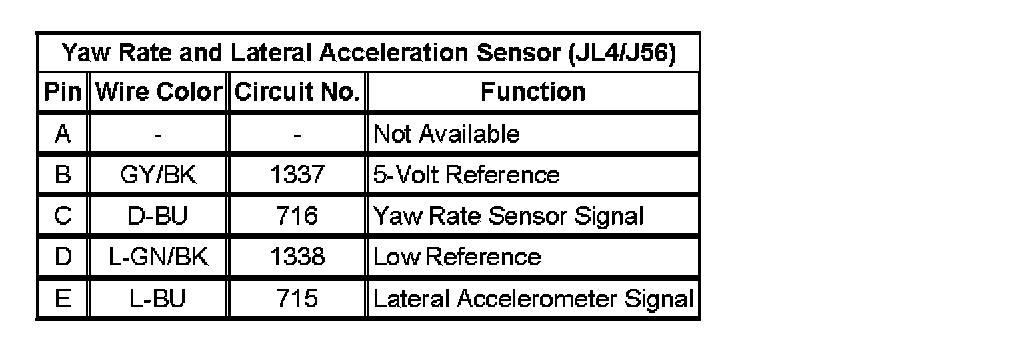

Yaw Rate and Lateral Acceleration Sensor (JL4/J56)







Yaw Rate And Lateral Acceleration Sensor (JL4/J56):
