Central Control Module



Entertainment/Communication Connector End Views

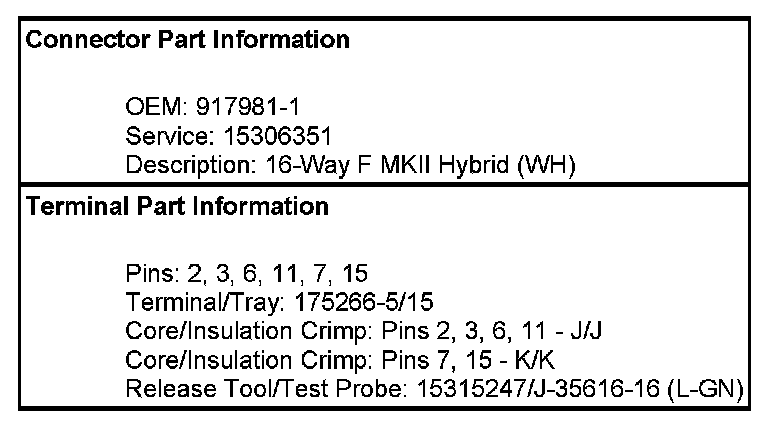

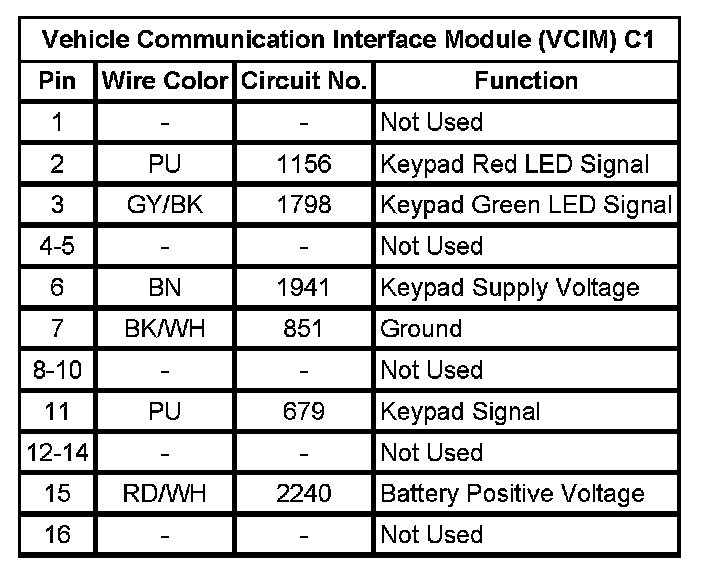

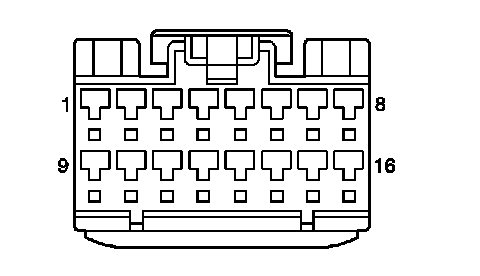

Vehicle Communication Interface Module (VCIM) C1

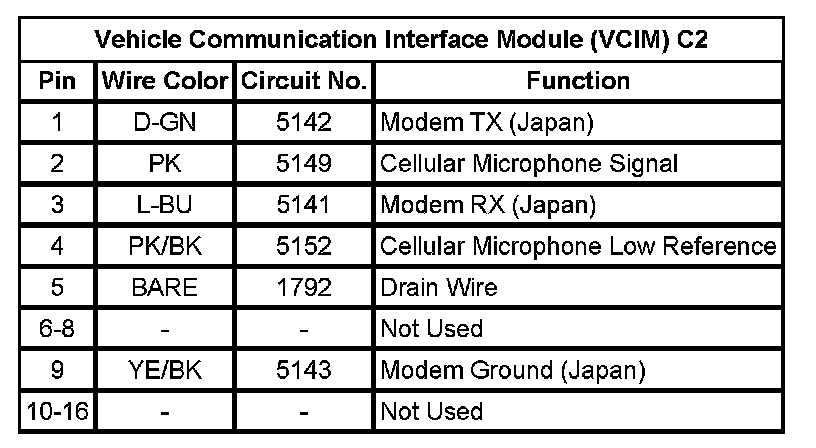

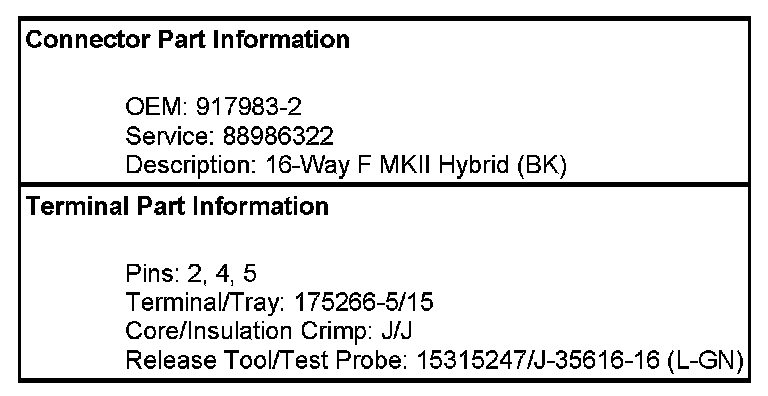

Vehicle Communication Interface Module (VCIM) C2

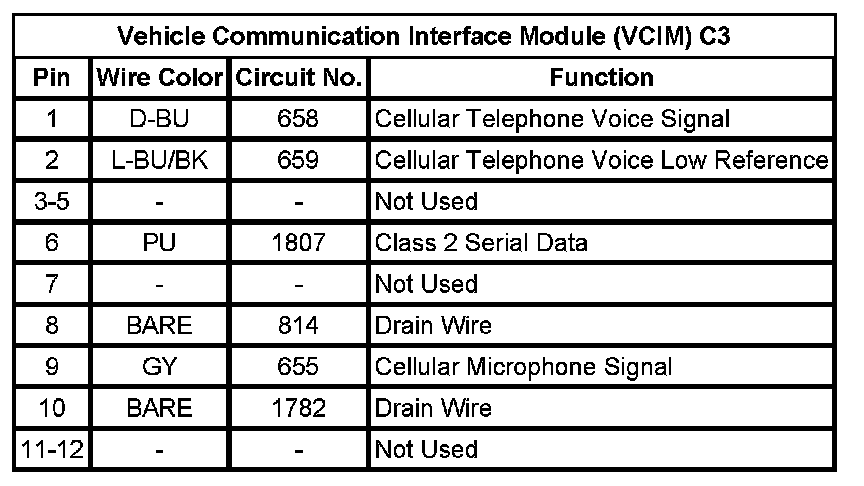

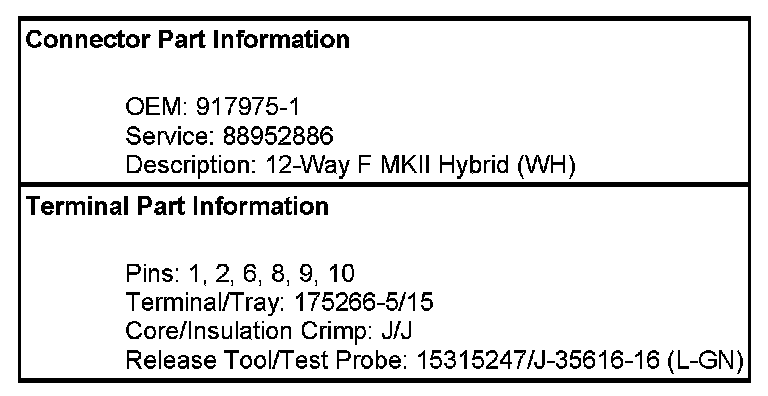

Vehicle Communication Interface Module (VCIM) C3
