Control Module HVAC
HVAC Connector End Views

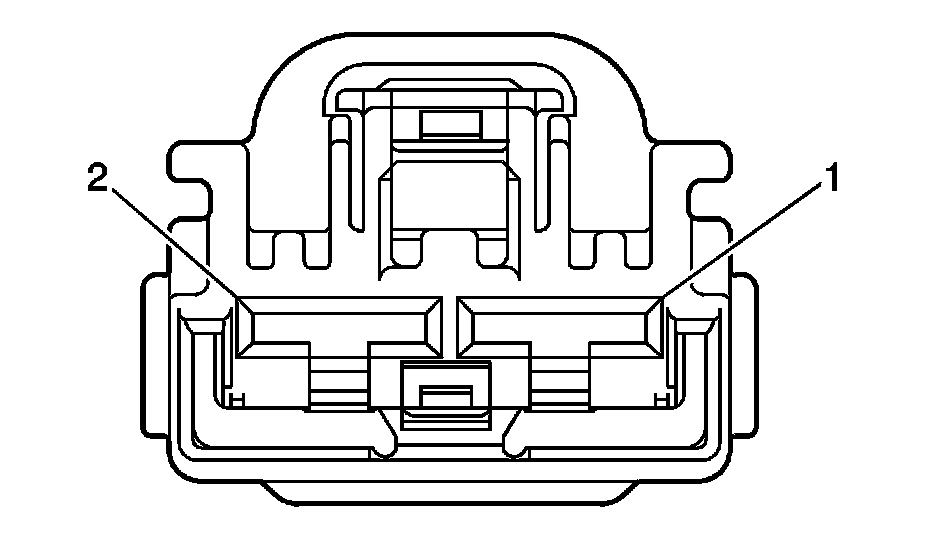

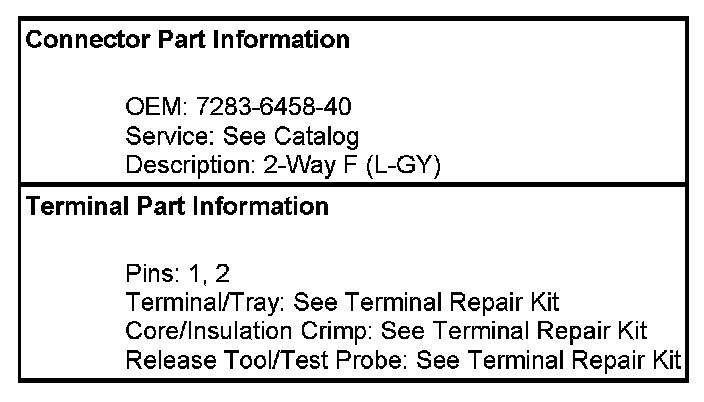

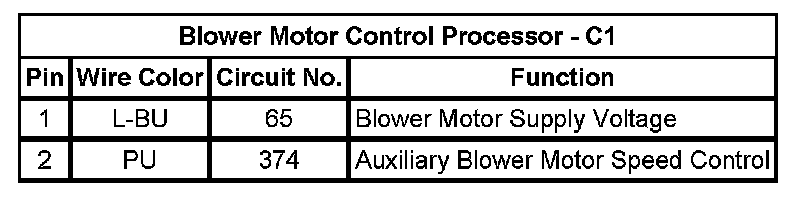

Blower Motor Control Processor - C1

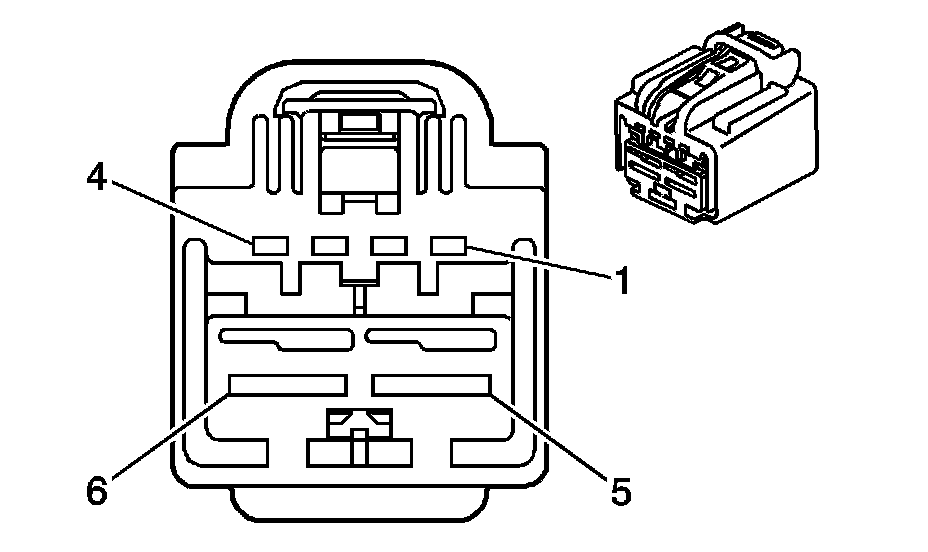

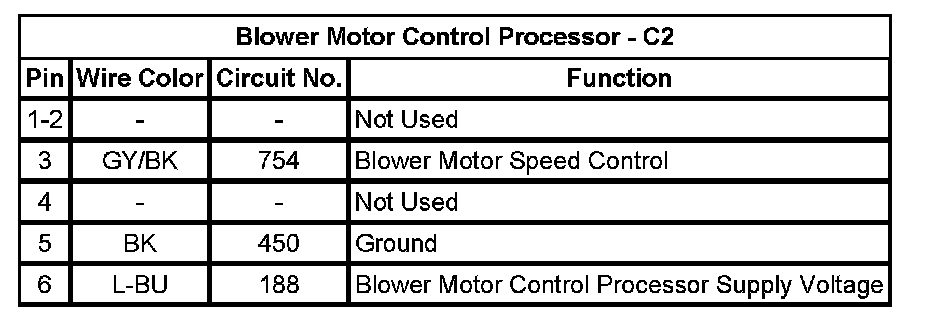

Blower Motor Control Processor - C2
