Impact Sensor



SIR Connector End Views

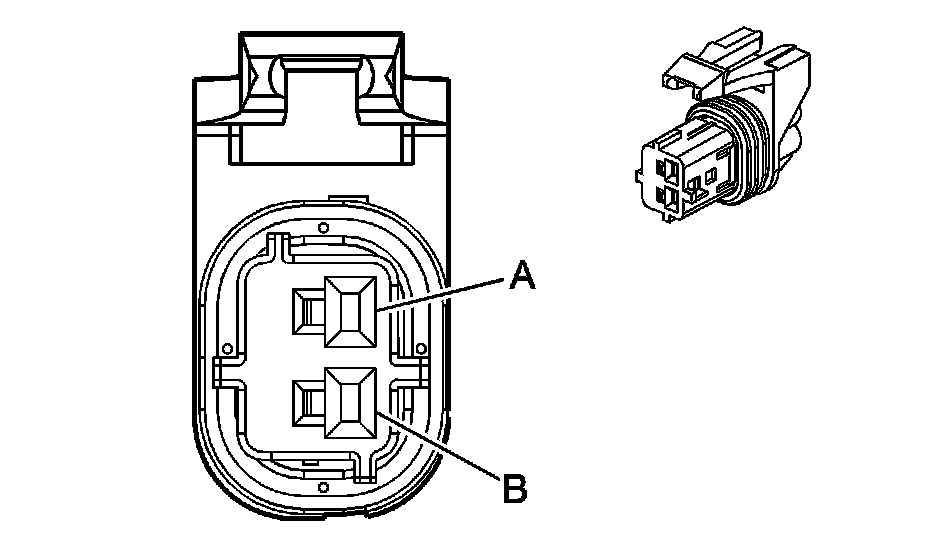

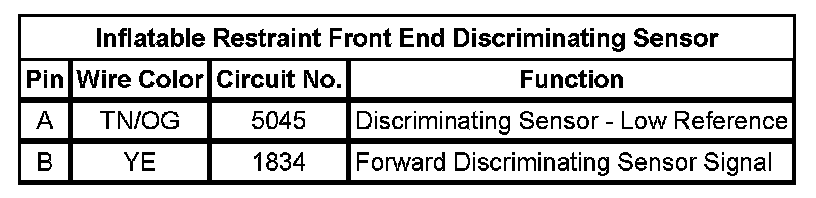

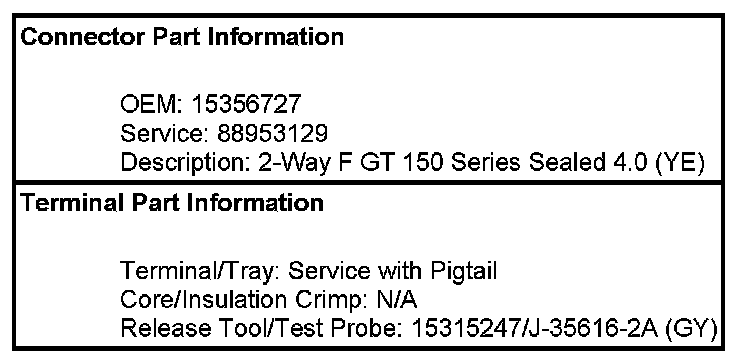

Inflatable Restraint Front End Discriminating Sensor

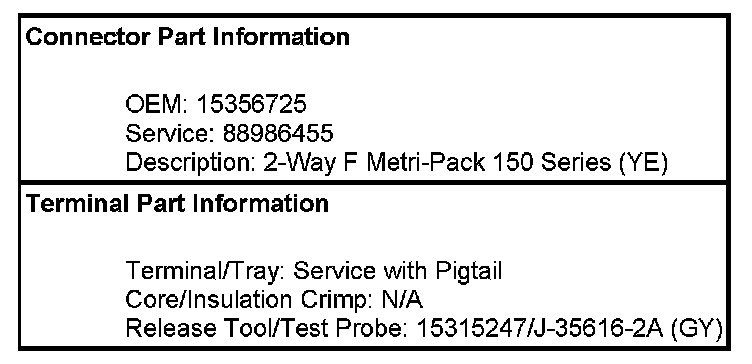

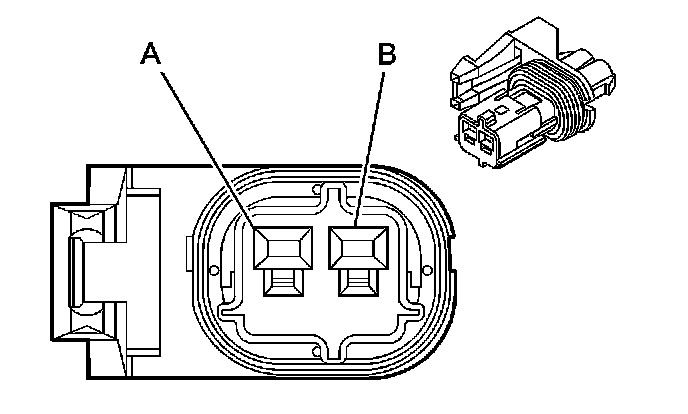

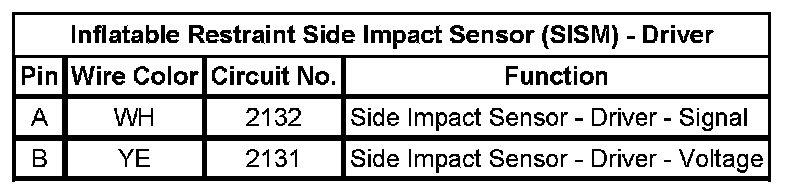

Inflatable Restraint Side Impact Sensor (SISM) - Driver

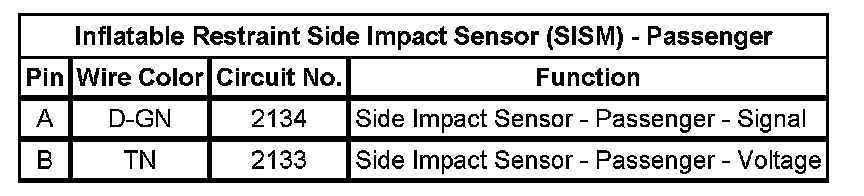

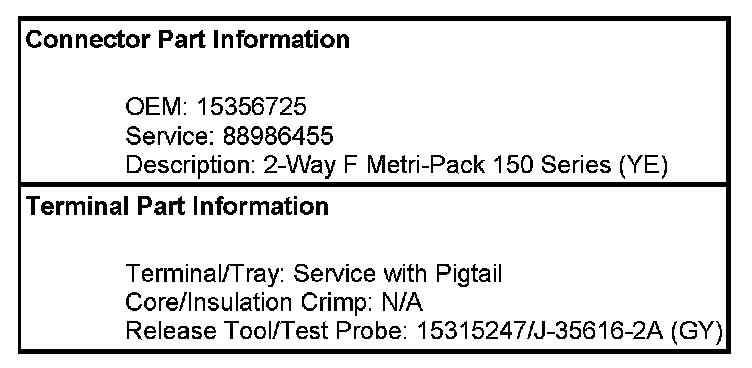

Inflatable Restraint Side Impact Sensor (SISM) - Passenger
