Memory Positioning Switch

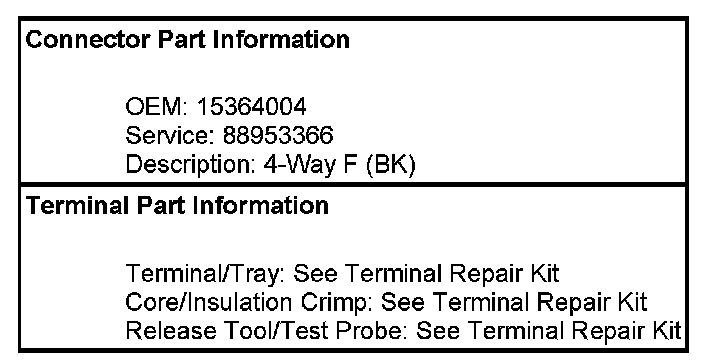

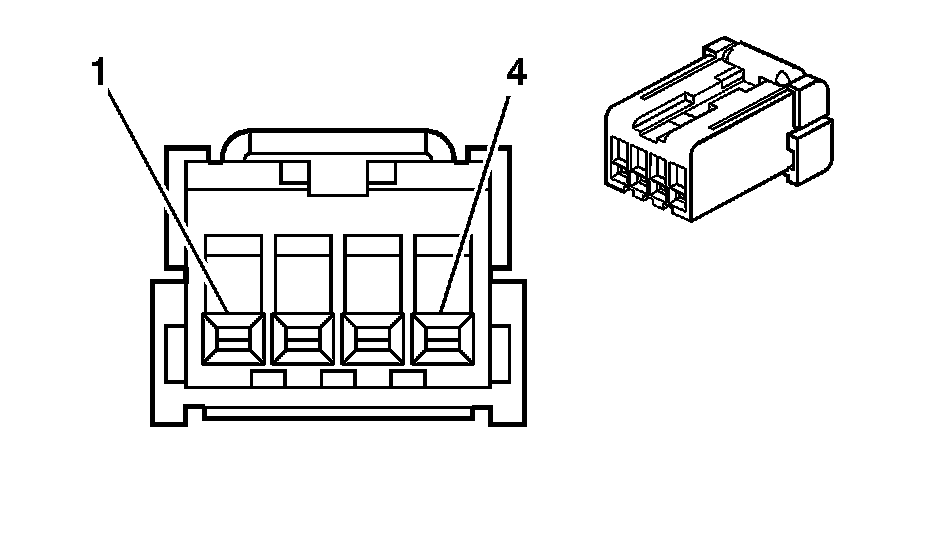

Power Seat Connector End Views

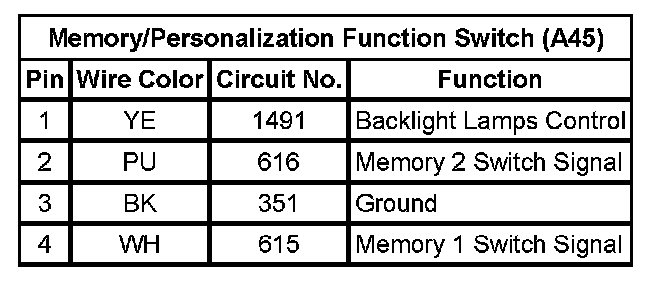

Memory/Personalization Function Switch (A45)
