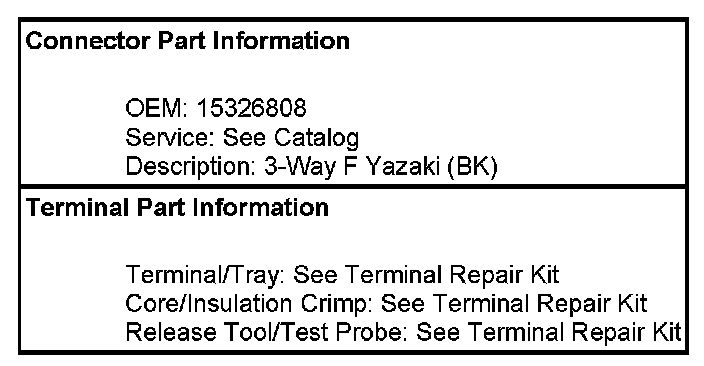

Engine Controls Connector End Views
Engine Controls Connector End Views

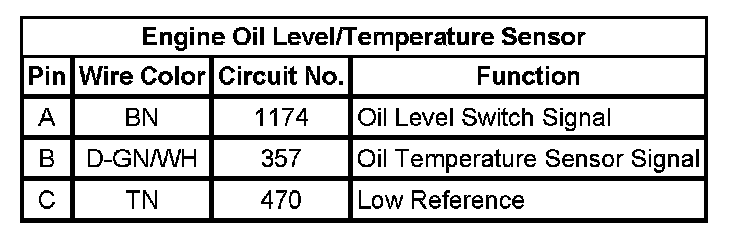

Engine Oil Level/Temperature Sensor
