Variable Induction Control Solenoid

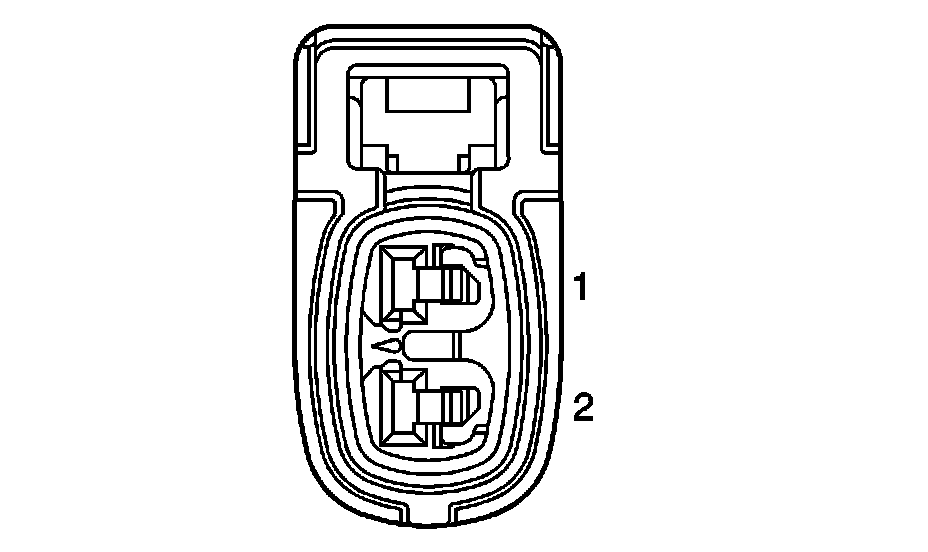

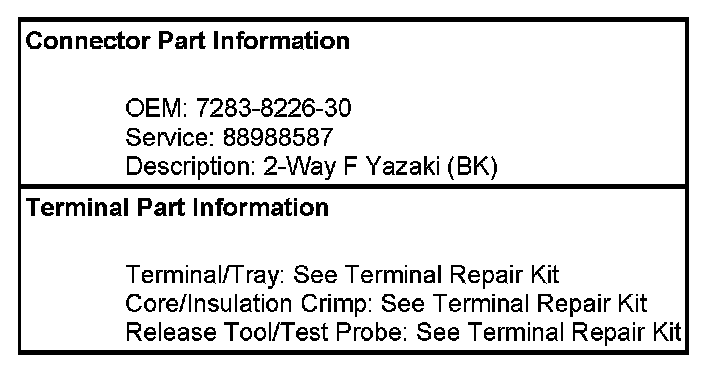

Engine Controls Connector End Views

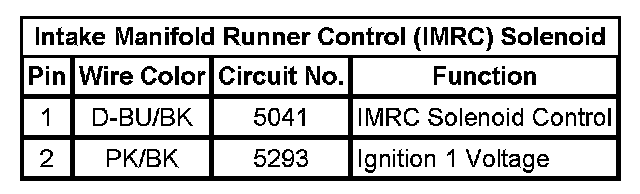

Intake Manifold Runner Control (IMRC) Solenoid
