Wiper Control Module

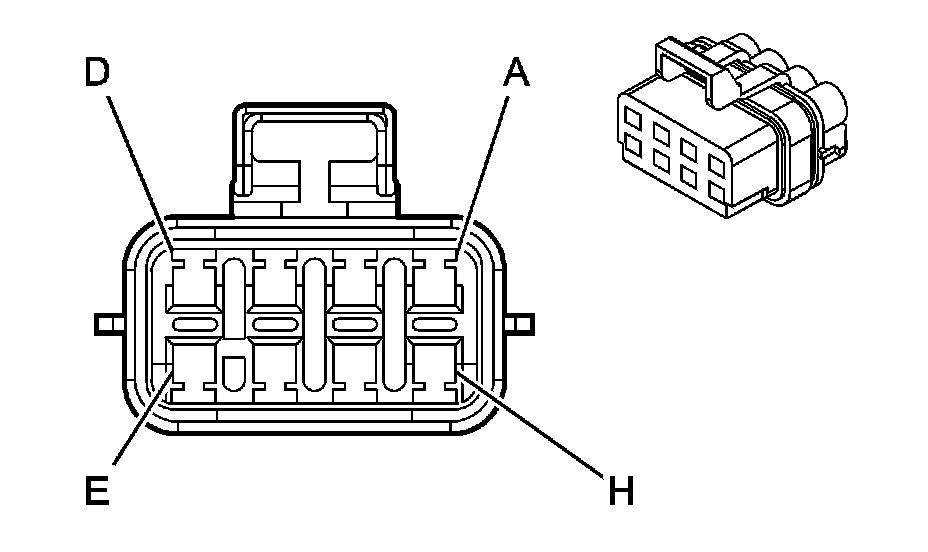

Wiper/Washer Connector End Views

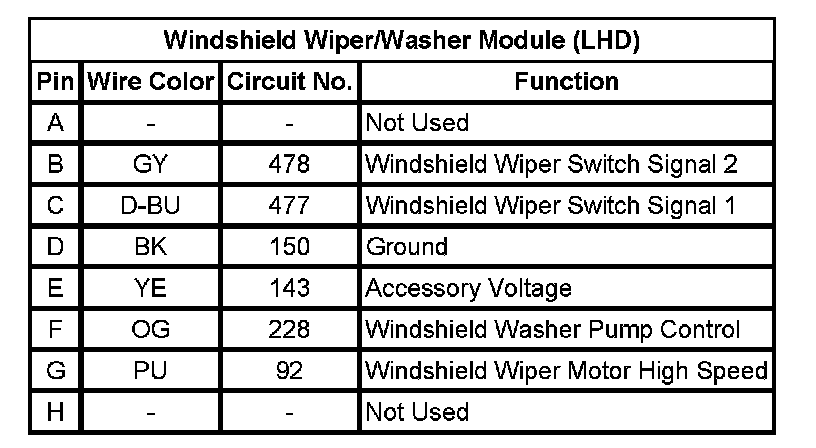

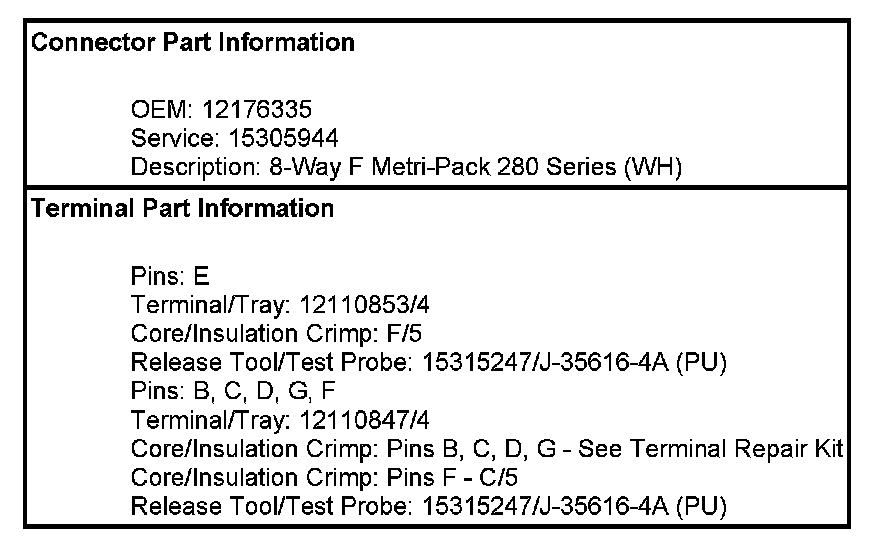

Windshield Wiper/Washer Module (LHD)

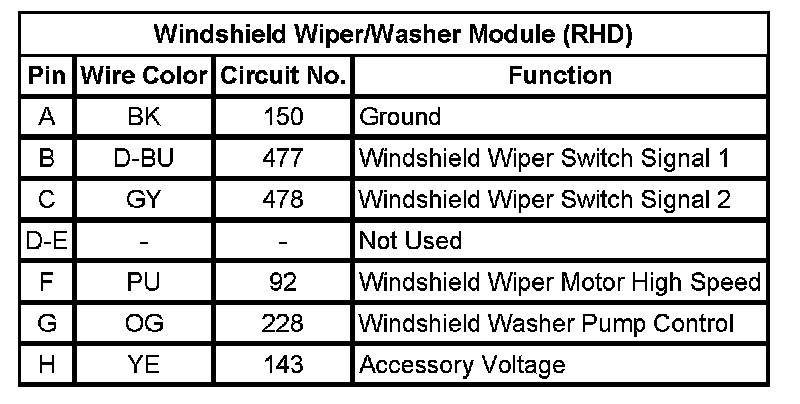

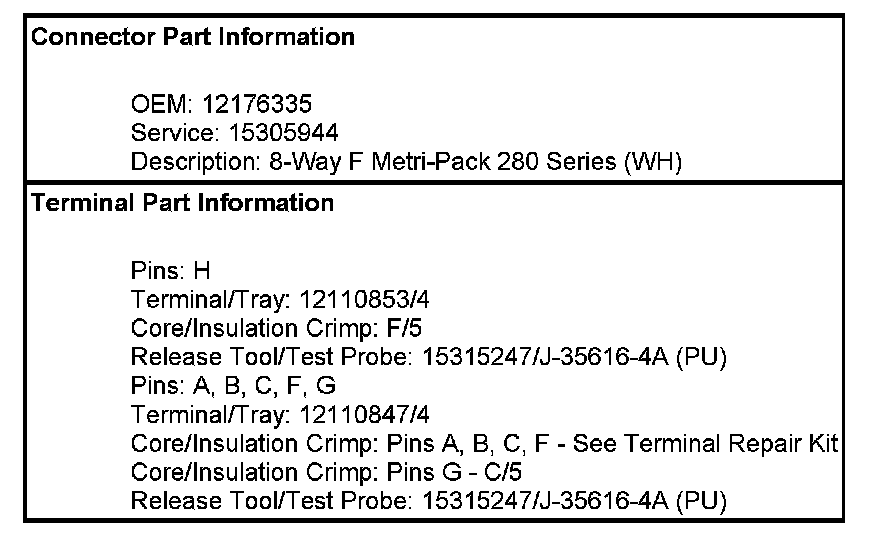

Windshield Wiper/Washer Module (RHD)
