Body Control Systems

Body Control System Schematics

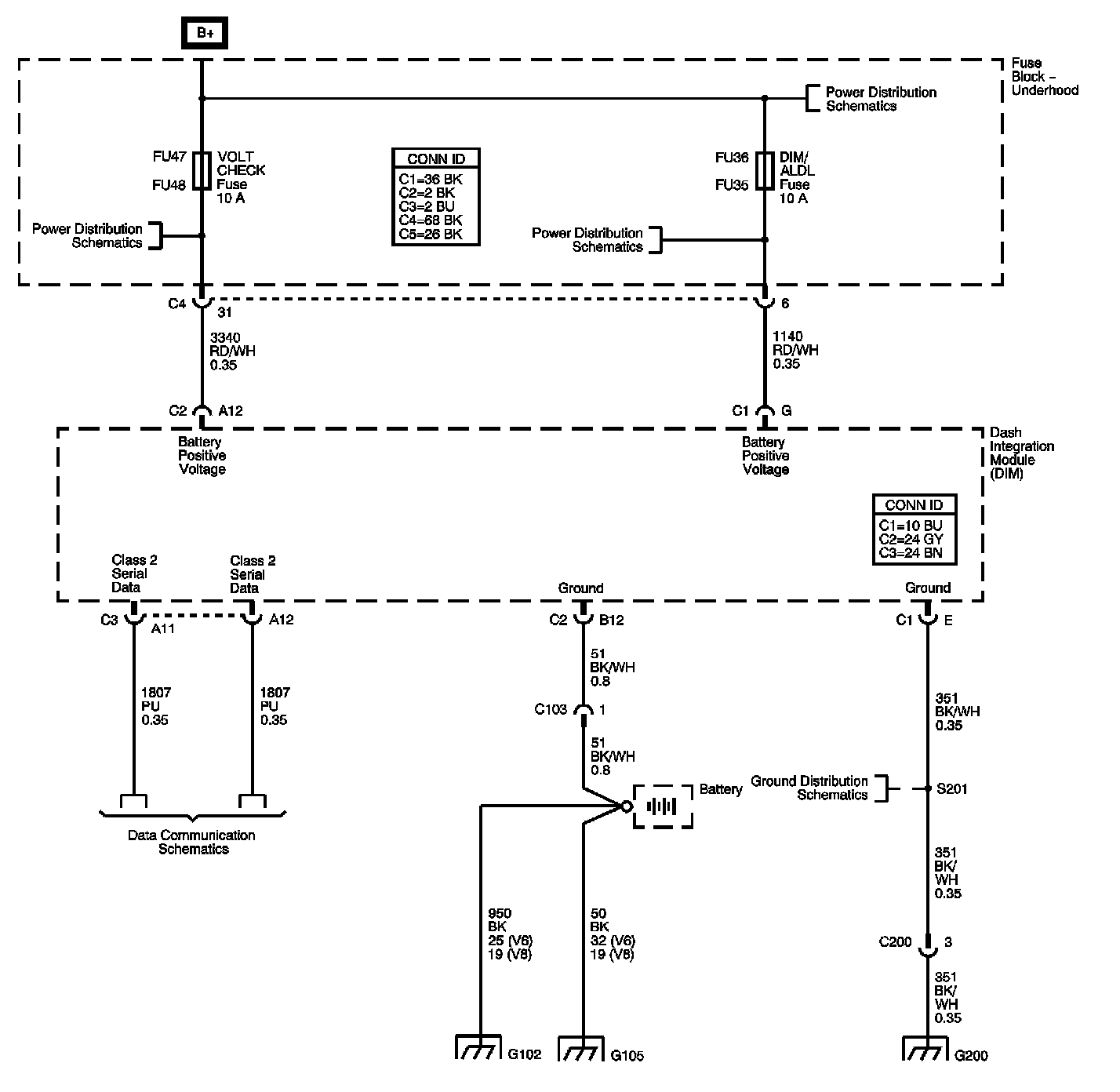

Dash Integration Module (DIM) Power, Ground, and Serial Data






Ignition Switch

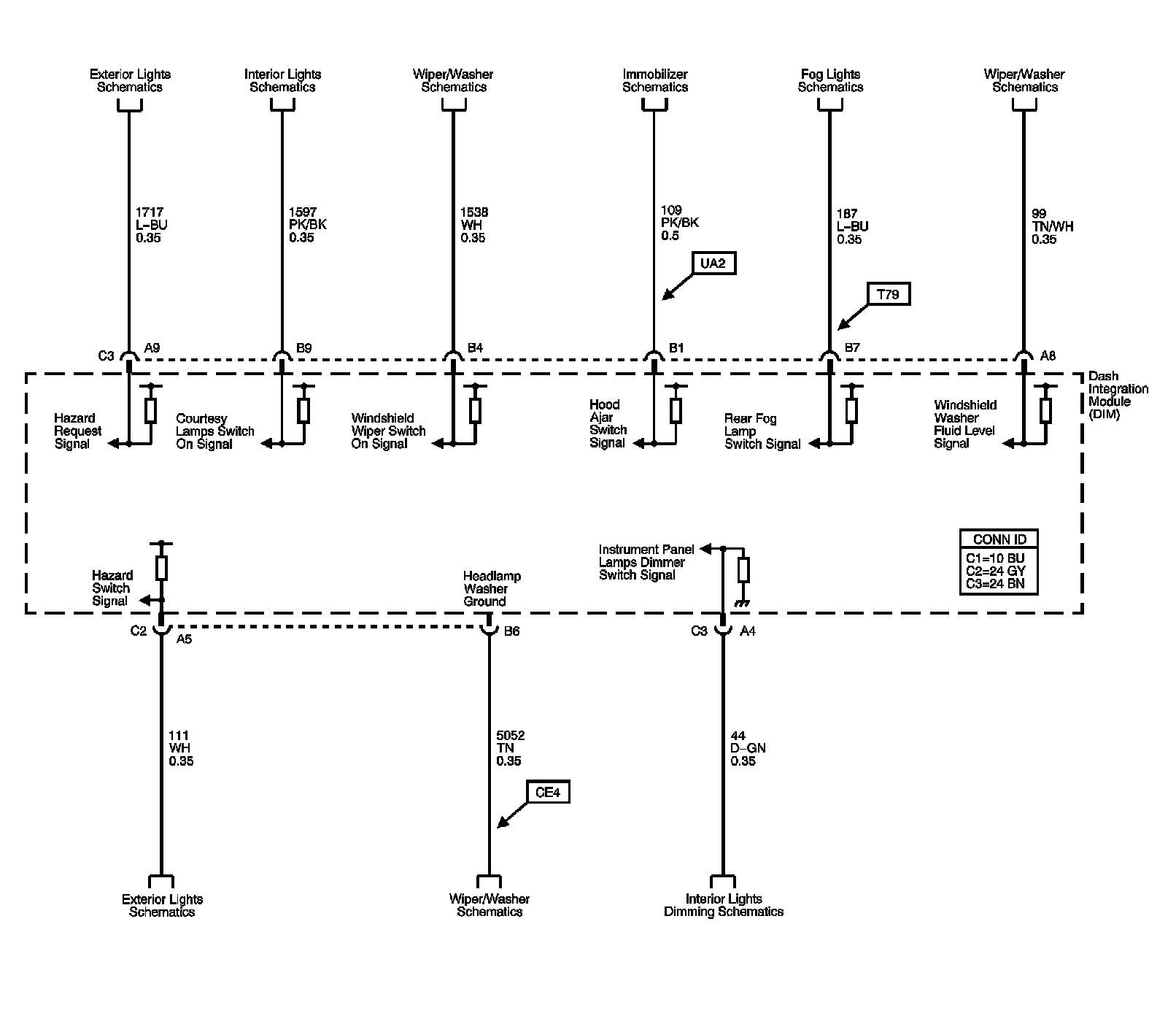

DIM Inputs and Outputs - 1 of 3






DIM Controlled/Monitored Subsystem References - 2 of 3

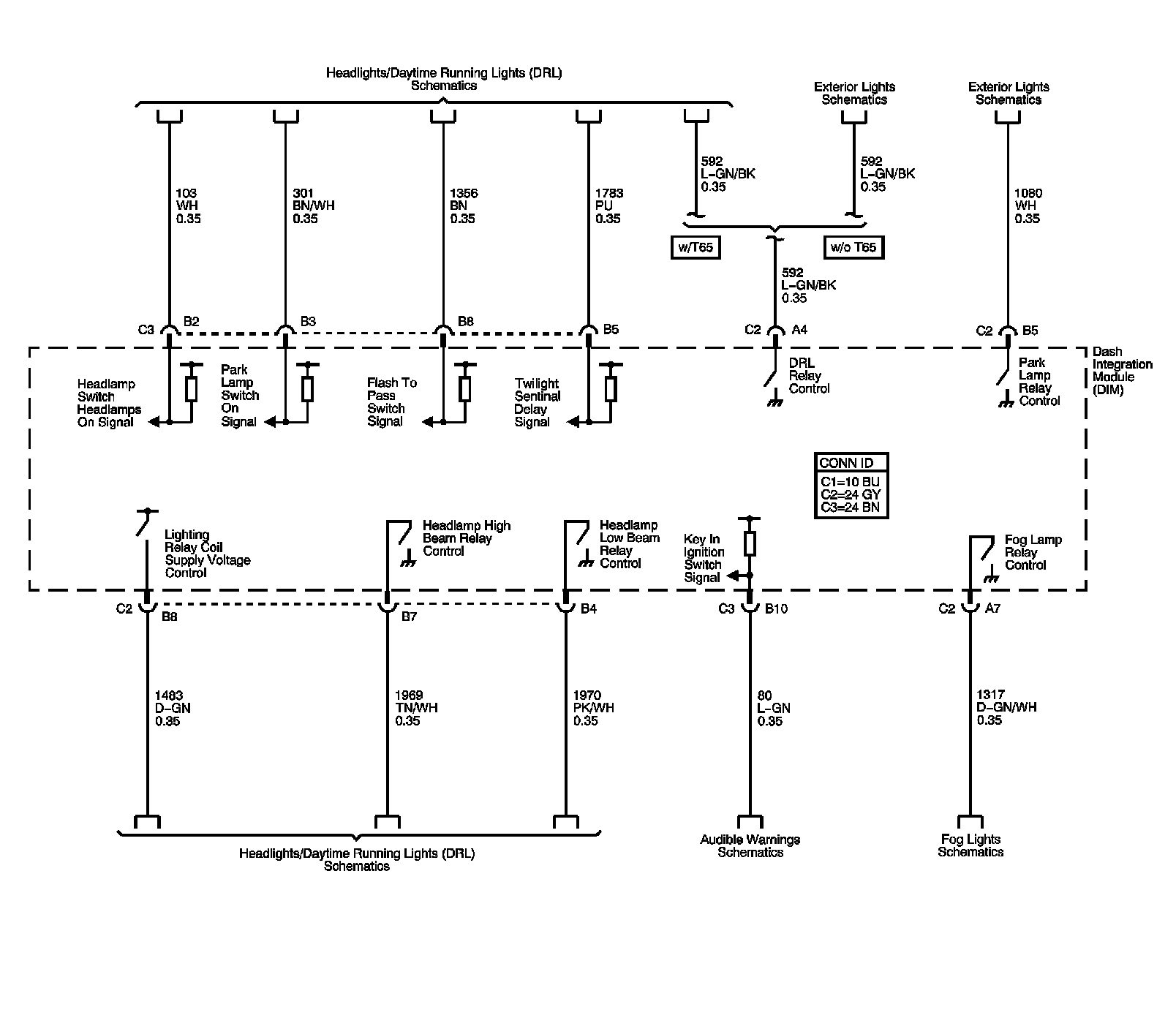

DIM Inputs and Outputs - 3 of 3






Rear Integration Module (RIM) Power, Ground, and Serial Data

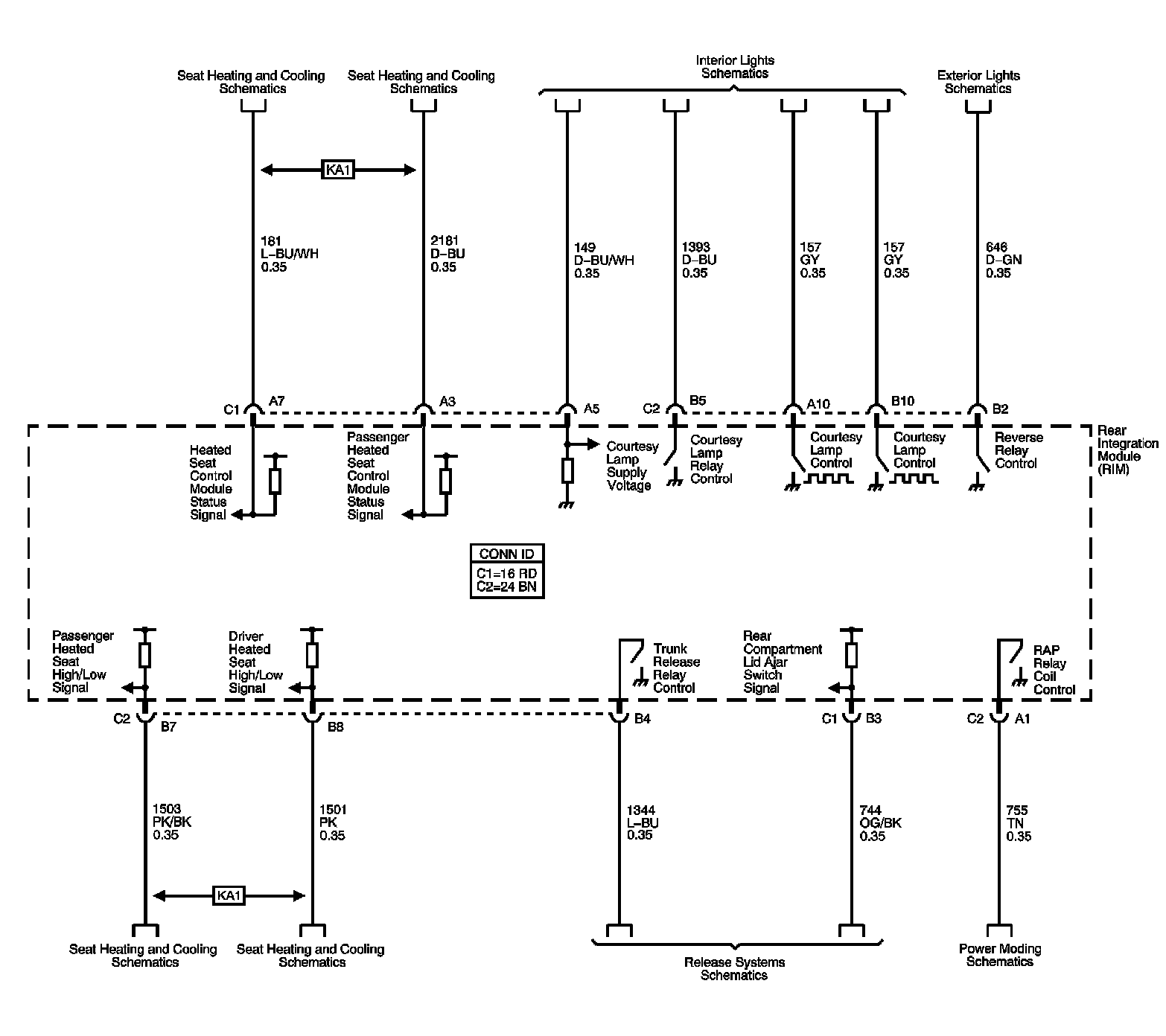

RIM Controlled/Monitored Subsystem References - 1 of 2

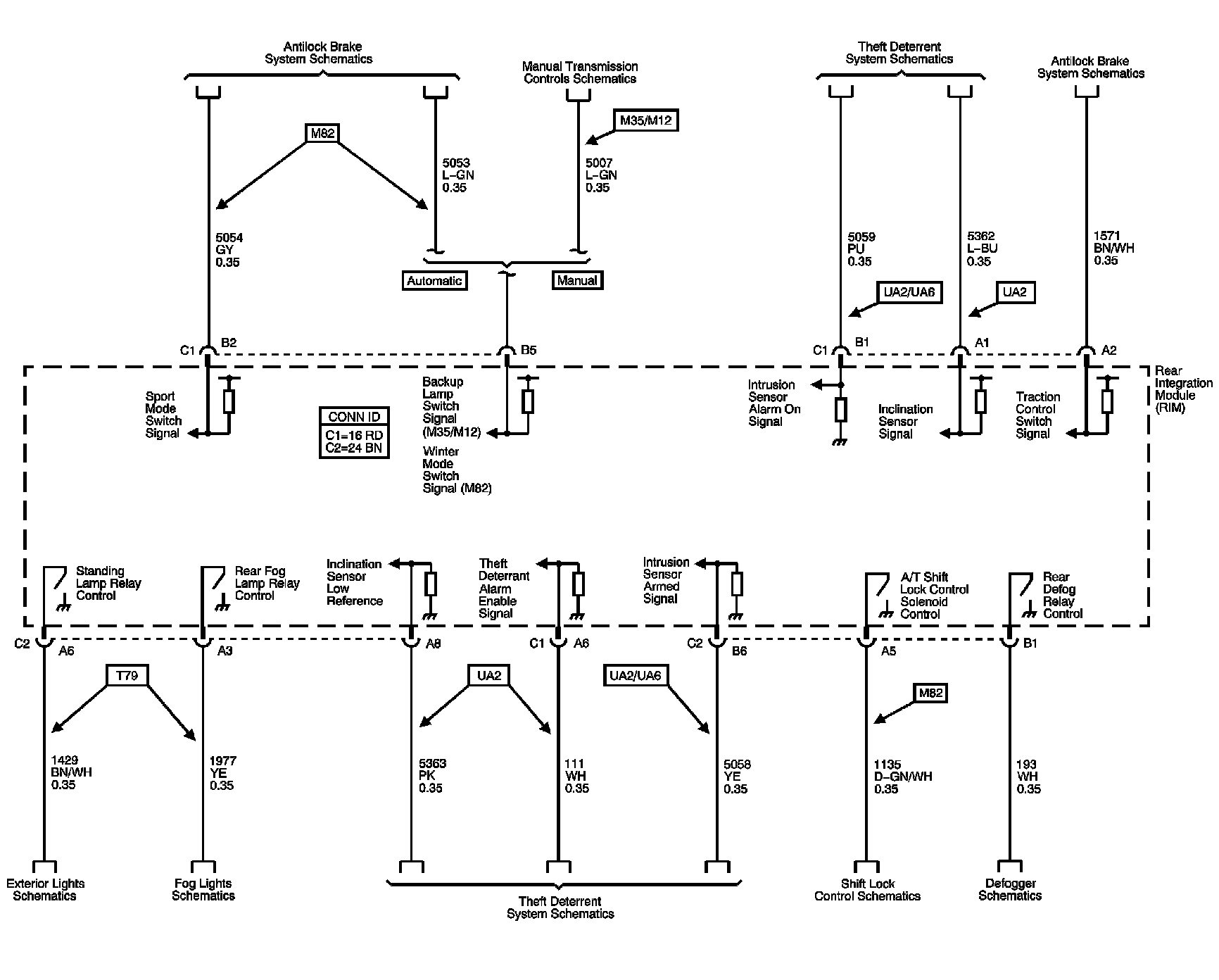

RIM Controlled/Monitored Subsystem References - 2 of 2






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
