Ambient Air Temperature Sensor, Sunload Sensor

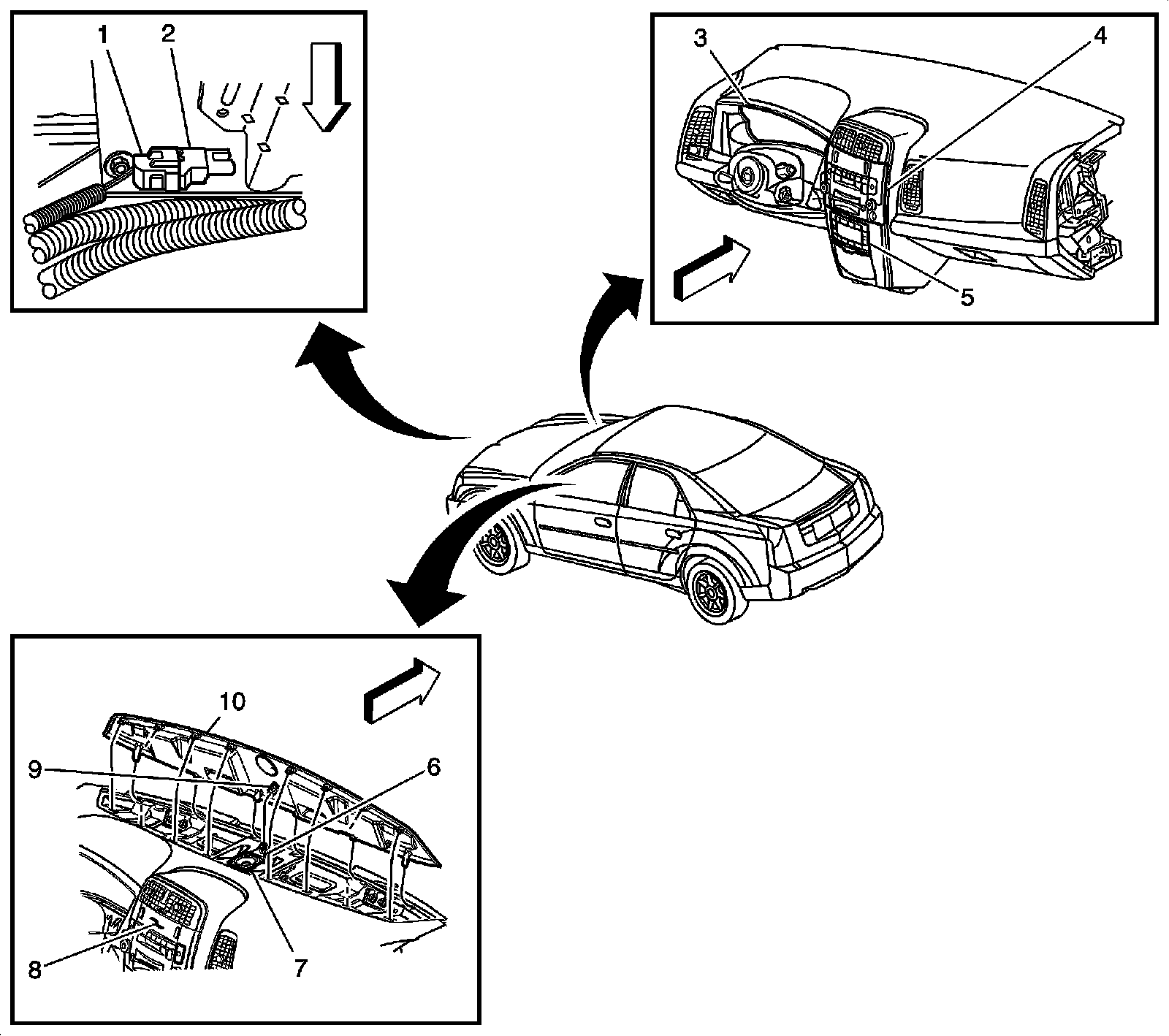

HVAC Component Views

Ambient Air Temperature Sensor, Sunload Sensor
and HVAC Control Module




1 - Ambient Air Temperature Sensor Connector
2 - Ambient Air Temperature Sensor
3 - Instrument Panel Cluster (IPC) (LHD shown, RHD similar)
4 - Radio
5 - HVAC Control Module
6 - Sunload Sensor Connector
7 - Speaker - Front Center (U57)
8 - Radio
9 - Sunload Sensor
10 - Trim Panel - I/P Center
