Vehicle Views

Power and Grounding Component Views

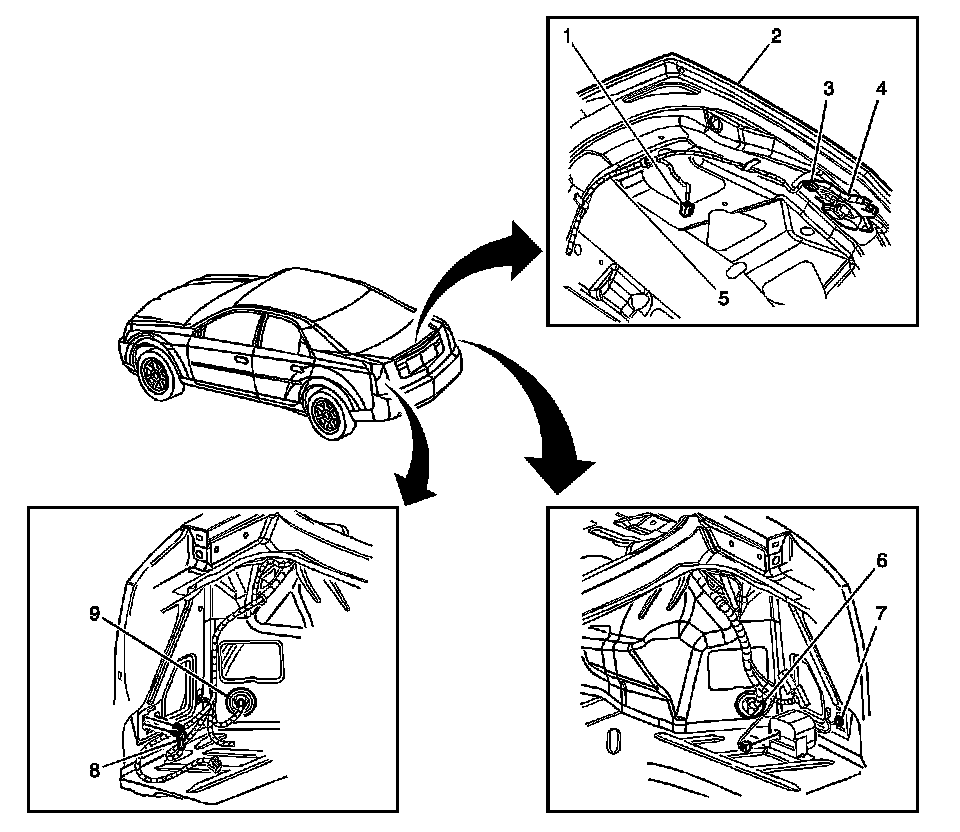

Rear of the Vehicle




1 - C421
2 - Rear Compartment Lid
3 - Rear Compartment Lid Release Actuator Connector
4 - Rear Compartment Lid Release Actuator
5 - S400
6 - Pass-through Grommet
7 - G401
8 - G402
9 - Pass-through Grommet
