Accelerator Pedal Position Sensor: Locations

Engine Controls Component Views

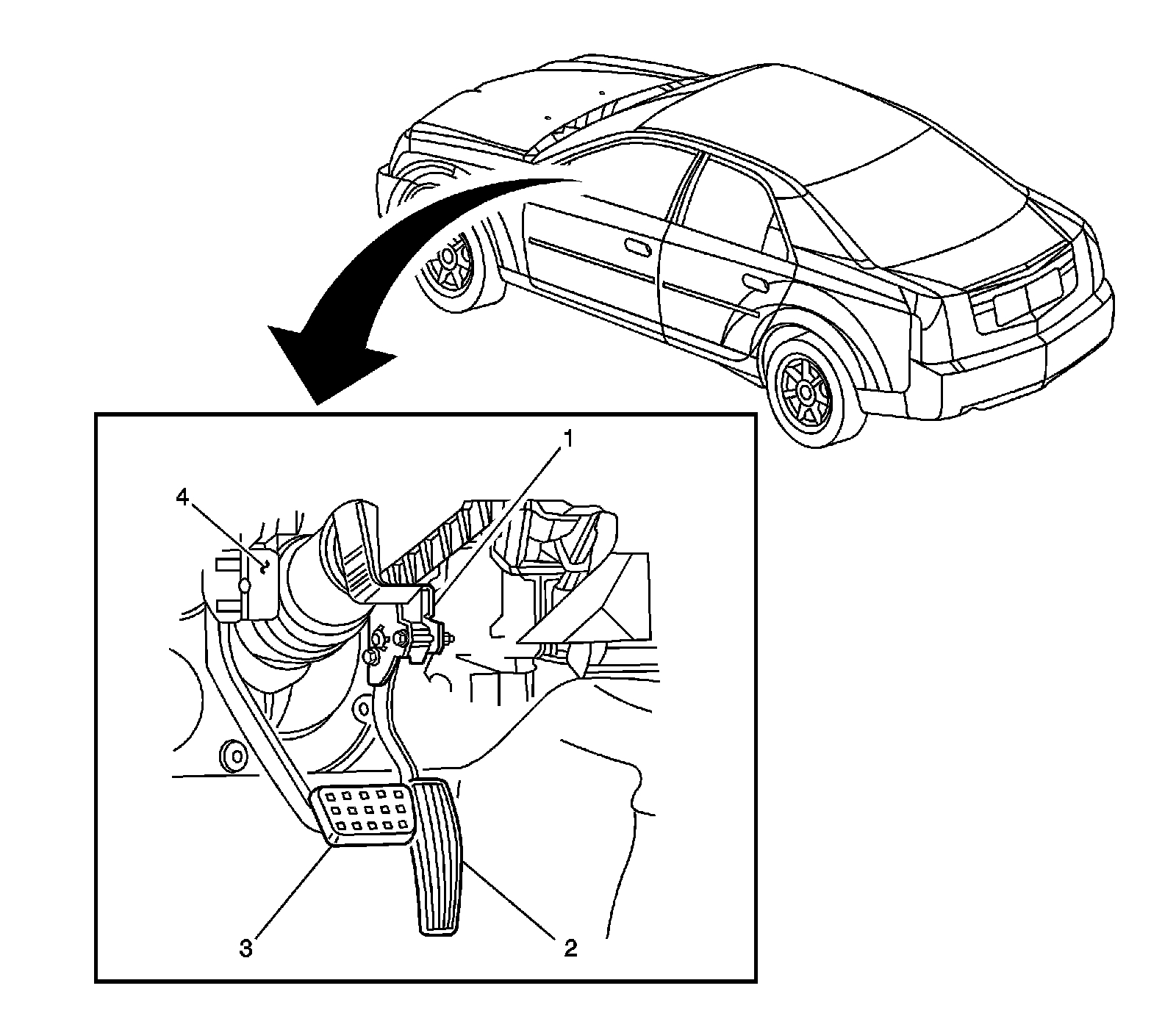

Brake Pedal, Accelerator Pedal, BPP
and APP Sensors




1 - Accelerator Pedal Position (APP) Sensor
2 - Accelerator Pedal
3 - Brake Pedal
4 - Brake Pedal Position (BPP) Sensor
