Barometric Pressure Sensor: Service and Repair

Barometric Pressure Sensor Replacement

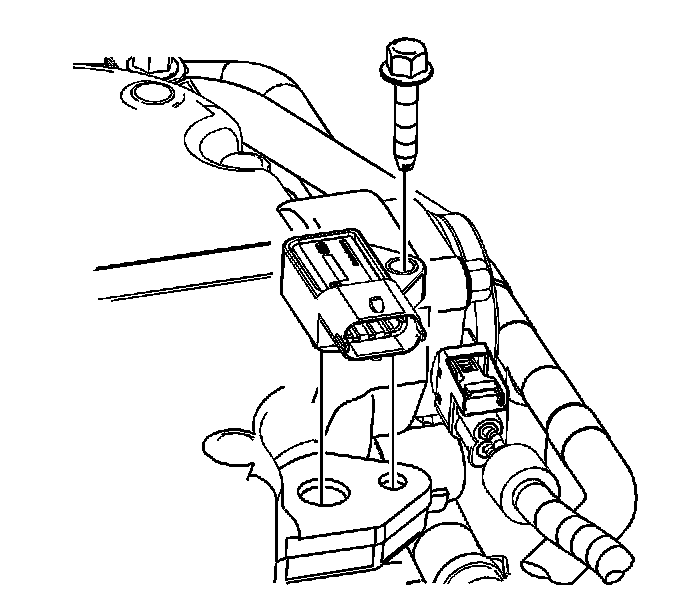

Removal Procedure




1. Turn the ignition OFF.

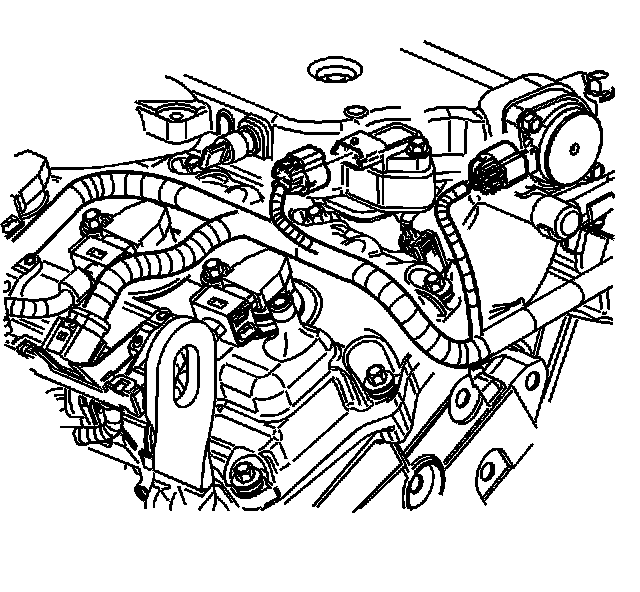

2. Disconnect the barometric pressure (BARO) sensor electrical connector.




3. Remove the BARO sensor bolt.
4. Remove the BARO sensor.

Installation Procedure




1. Install the BARO sensor.

Notice: Refer to Fastener Notice.

2. Install the BARO sensor bolt.

Tighten the bolt to 10 N.m (89 lb in).




3. Connect the BARO sensor electrical connector.
