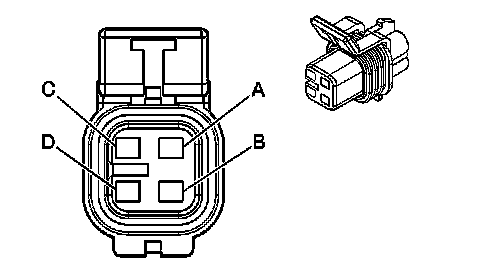

Engine Controls Connector End Views
Engine Controls Connector End Views

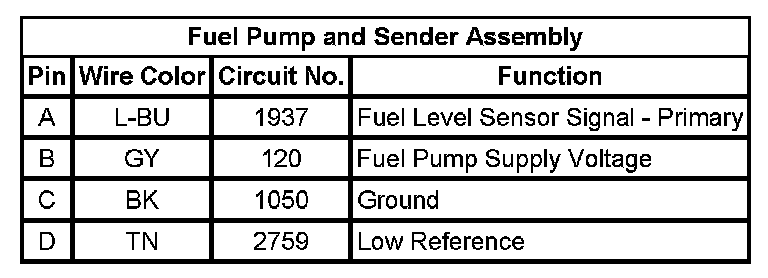

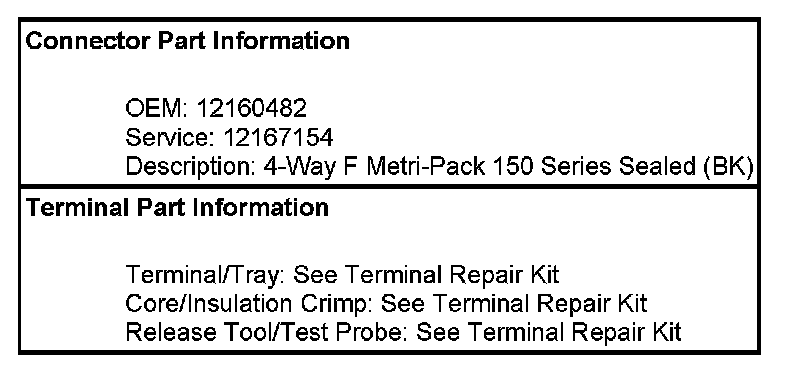

Fuel Pump and Sender Assembly
