Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure

1. Turn the ignition OFF.
2. Disconnect the oil pressure sensor electrical connector.

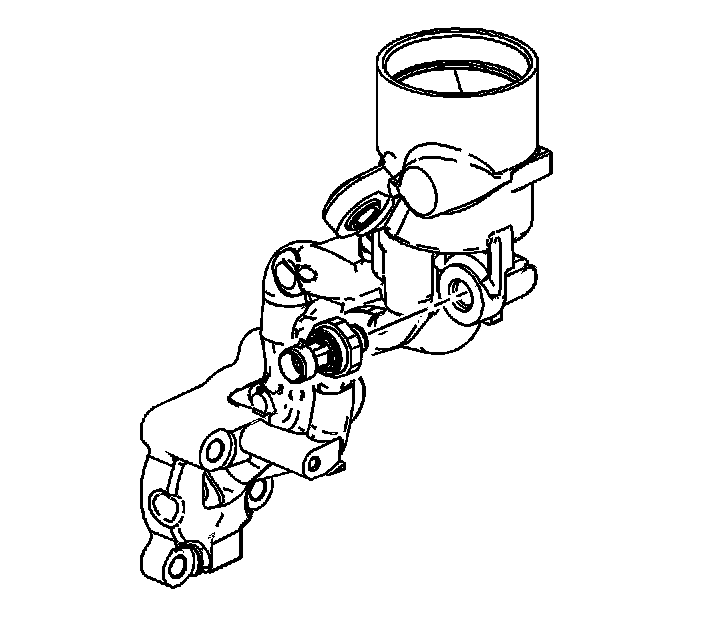

3. Remove the oil pressure sensor.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the oil pressure sensor.

Tighten the oil pressure sensor to 20 N.m (15 lb ft).

2. Connect the oil pressure sensor electrical connector.
